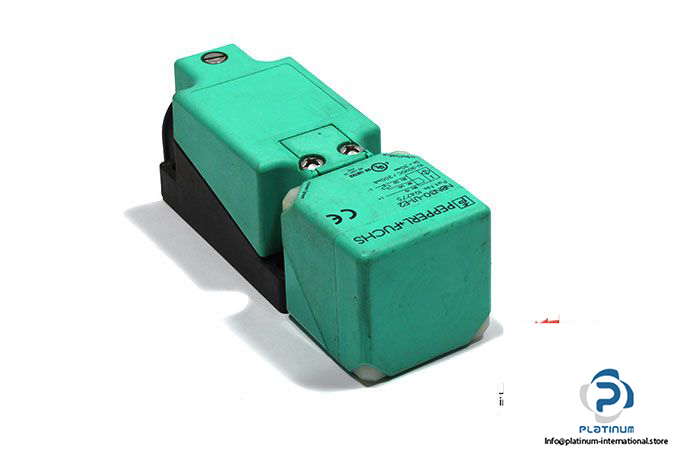

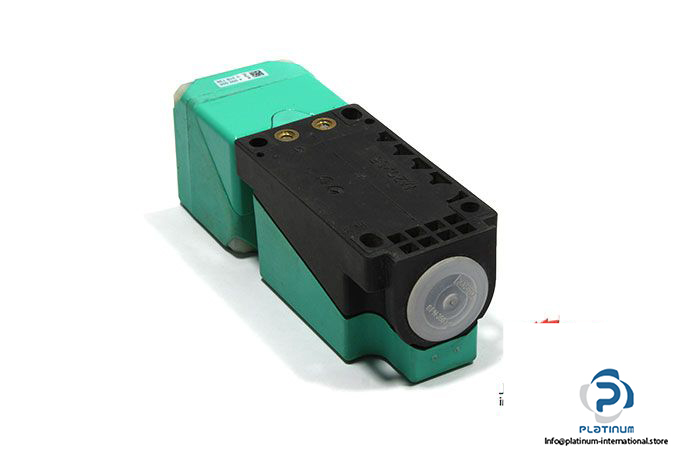

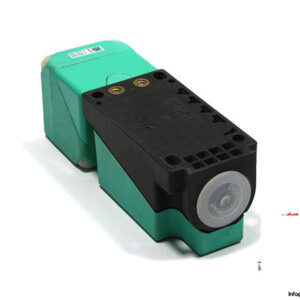

Manufacturer: Pepperl+Fuchs
Type: Inductive Sensor

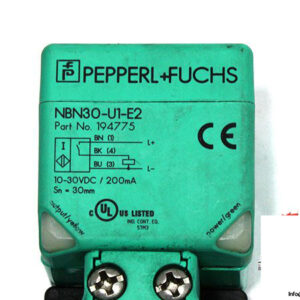

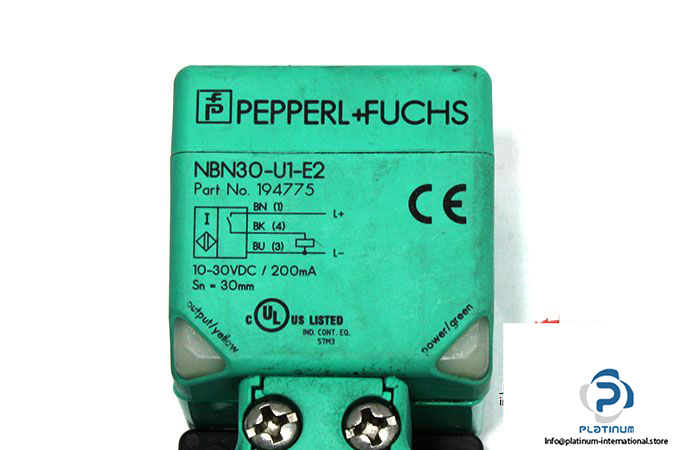

Model: NBN30-U1-E2
Part No: 194775
Rated Operating Distance: 30 mm
Assured Operating Distance: 0 … 24.3 mm
Operating Voltage: 10 … 30 V DC
Switching Current: ≤ 200 mA
No-Load Supply Current I0: ≤ 20 mA
Voltage Drop Ud: ≤ 2 V
Signal Output: PNP
Switching Function: Normally Open
Switching Frequency f: 0 … 230 Hz
Installation: Non-Flush
Protection Degree: IP68 / IP69K
Ambient Temperature: -25 … 85 °C
Material: Housing: PA/Metal With Epoxy Powder Coating, Sensing Face: PA
Connection: Screw Terminals
Dimensions: 40 x 40 x 118 mm
Weight: 0.22 kg
