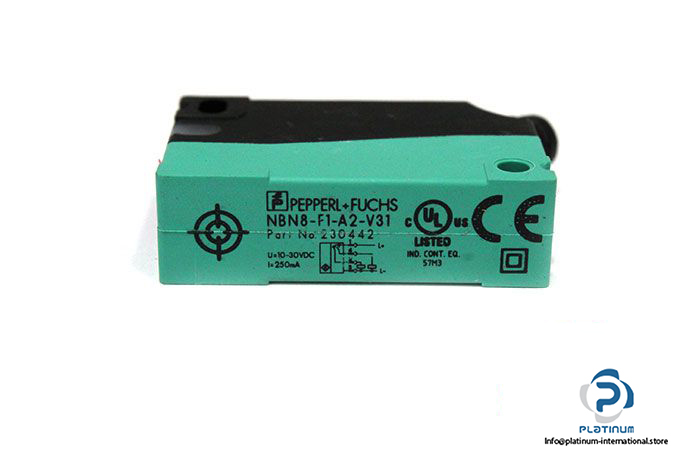

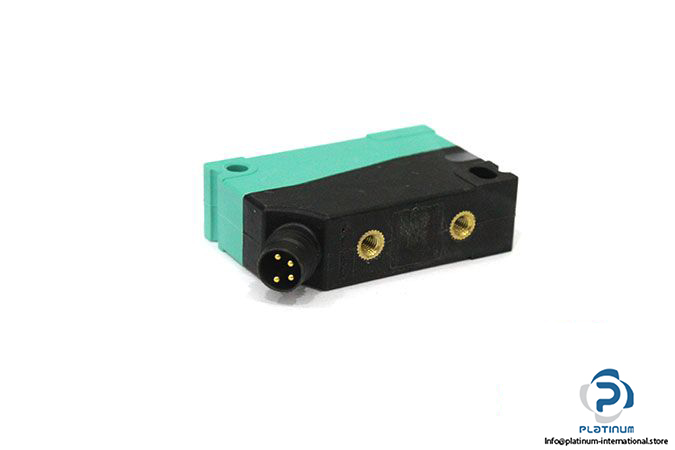

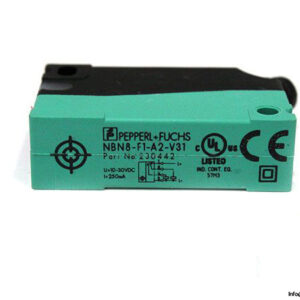

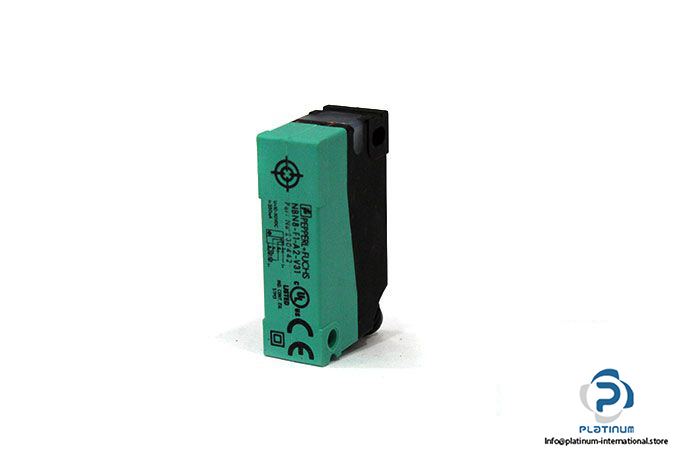

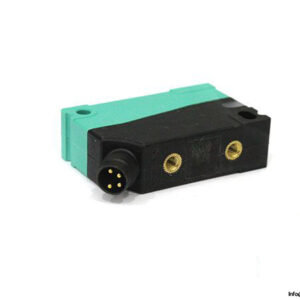

Manufacturer: PEPPERL + FUCHS

Type: Inductive Sensor

Model: NBN8-F1-A2-V31

Part No.: 230442

Operating Distance: 8 mm

Connection Type: Connector M8 x 1, 4-Pin

Output Type: PNP

Installation: Non-Flush

Assured Operating Distance: 0 … 6.48 mm

Operating Voltage: 10 … 30 V DC

Reverse Polarity Protection: yes

Switching Frequency: 0 … 1400 Hz

Operating Current: 0 … 250 mA

Switching State Indicator: LED, yellow

Housing Material: PA

Sensing Face: PA

Hysteresis: Typ. 5%

Degree of Protection: IP67

Weight: 0.02 kg
