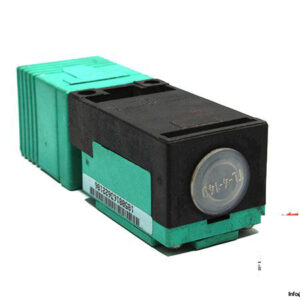

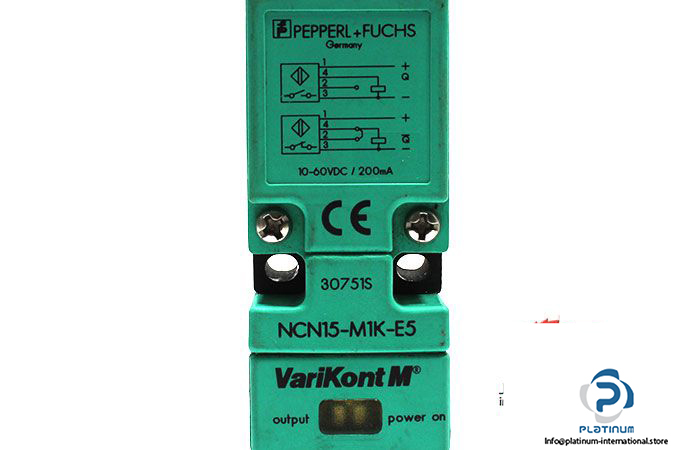

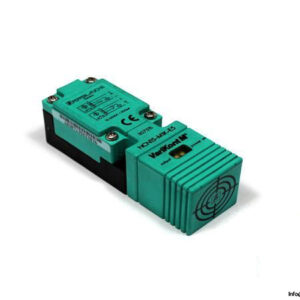

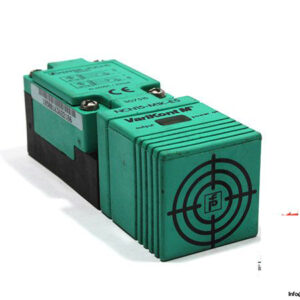

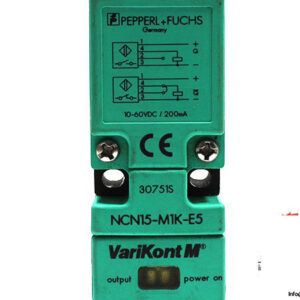

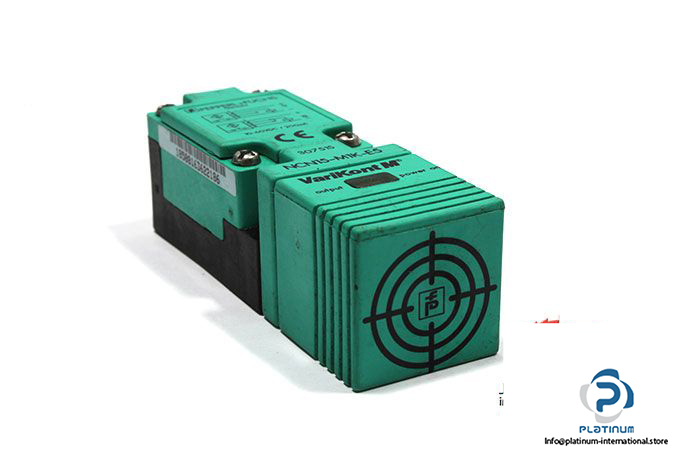

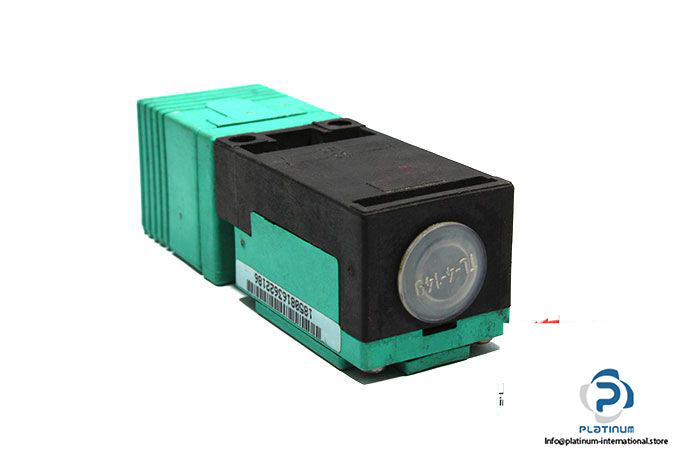

Manufacturer: Pepperl + Fuchs

Series: VariKont M

Type: Inductive Sensor

Model: NCN15M1KE5

Replaced by: NJ15-M1K-A2

Rated Operating Distance: 15 mm

Assured Operating Distance: 0 … 12.15 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 200 mA

Switching Frequency: 0 … 500 Hz

Electrical Design: PNP

Switching Output: Normally Open and Normally Closed

Connector Type: Terminal Compartment

Enclosure Rating: IP67

Ambient Operating Temperature: -25 … 70°C

Dimensions: 30 x 30 x 90 mm

Housing: Rectangular

Housing Material: PBT

Sensing Face Material: PBT

Mounting: Non-Flush Mountable
