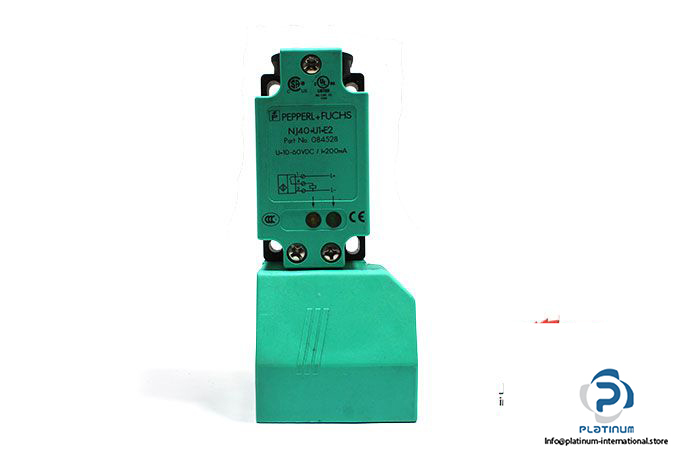

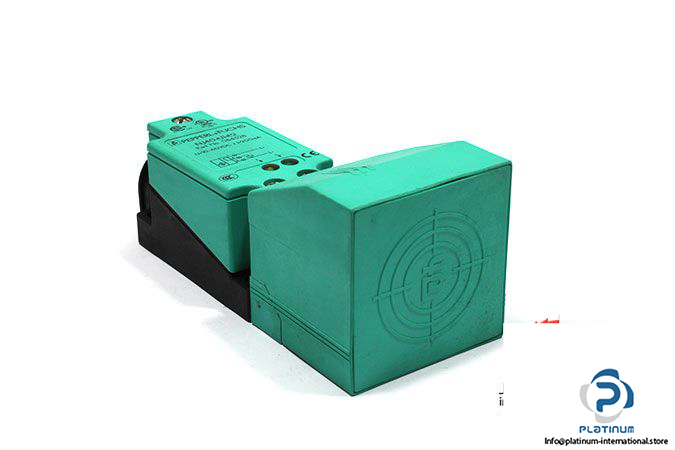

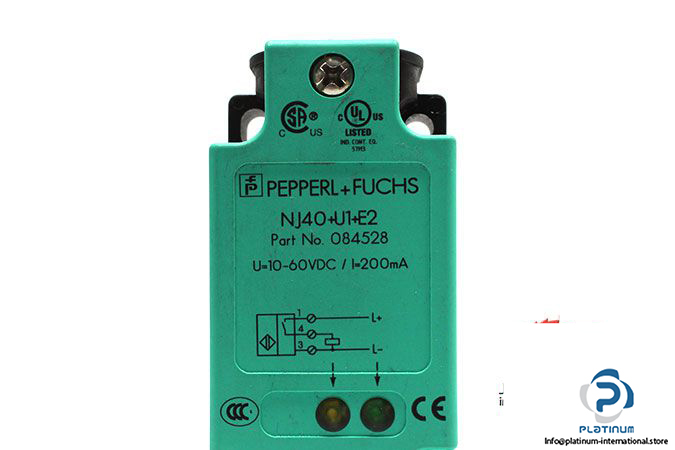

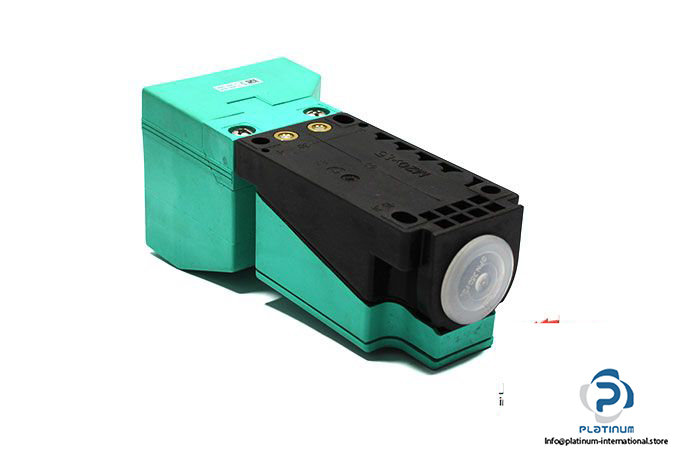

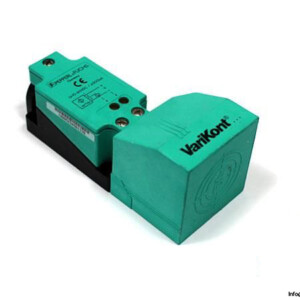

Manufacturer: Pepperl Fuchs

Series: VariKont

Type: Inductive Sensor

Model: NJ40U1E2

Part No.: 084528

Replaced By: NB240-U1-E2

Rated Operating Distance: 40 mm

Assured Operating Distance: 0 … 32.4 mm

Operating Voltage: 10 … 60 V DC

Operating Current: 0 … 200 mA

Switching Frequency: 0 … 100 HZ

Electrical Design: PNP

Switching Output: Normally Open

Connector Type: Terminal Compartment

Protection Class: II

Enclosure Rating: IP68

Ambient Operating Temperature: -25 … 70°C

Dimensions: 55 x 55 x 128 mm

Housing Material: PBT

Sensing Face Material: PBT

Mounting: Non-Flush Mountable

Wight: 0.37 kg
