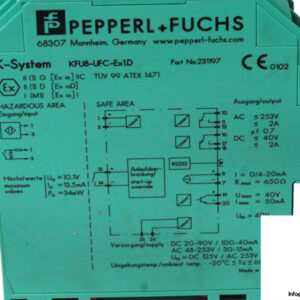

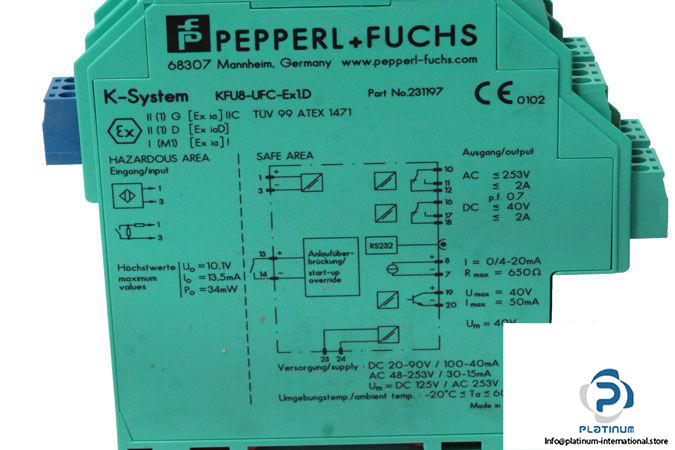

PEPPERL+FUCHS KFU8-UFC-EX1.D FREQUENCY CONVERTER WITH TRIP VALUE

The Pepperl+Fuchs KFU8-UFC-EX1.D is a reliable frequency converter with trip value, designed for precise signal processing in industrial automation. It features digital input compatibility, wide voltage range, and robust output connections, ensuring dependable operation in demanding environments.

Manufacturer: Pepperl+Fuchs
Type: Frequency Converter With Trip Value
Model: KFU8-UFC-EX1.D
Part No.: 231197
Signal Type: Digital Input

Technical Information

• Supply: Connection terminals 23, 24
• Rated Voltage: 20 / 90 VDC / 48 / 253 VAC
• Frequency: 50 / 60 Hz
• Power Dissipation / Consumption: ‰¤ 2 W; 2.5 VA / 2.2 W; 3 VA
• Input (Field Side):
  • Input I (intrinsically safe): terminals 1+, 3-
  • Input II (non-intrinsically safe): terminals 13+, 14-
  • Input I Frequency: 0.001 / 5000 Hz
  • Input II Open Circuit Voltage / Short-Circuit Current: 18 V / 5 mA
• Output (Control Side):
  • Output I: terminals 10, 11, 12
  • Output II: terminals 16, 17, 18
  • Output III: terminals 19+, 20-
  • Output IV: terminals 8+, 7-
• Ambient Temperature: -20 / 60 °C
• Connection: Screw terminals
• Dimensions: 40 x 119 x 115 mm
• Degree of Protection: IP20
