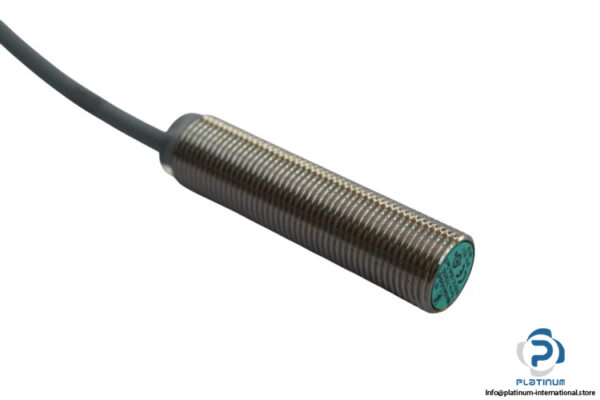

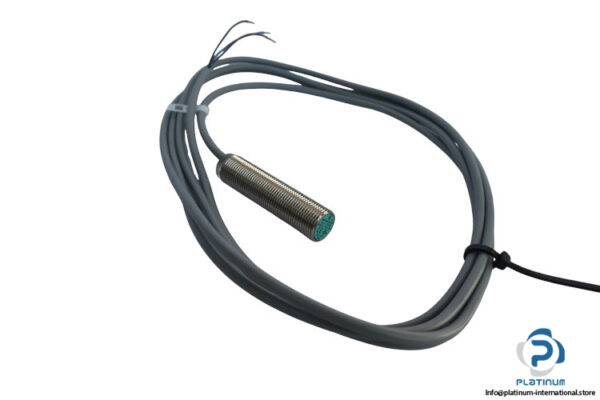

Pepperl+Fuchs Inductive Sensor NBB412GM50E23G3D

Manufacturer: Pepperl+Fuchs

Type: Inductive Sensor

Model: NBB412GM50E23G3D

Part No.: 70126032

The Pepperl+Fuchs Inductive Sensor NBB412GM50E23G3D is a reliable, high-performance sensor designed for precise detection in industrial applications. Its durable construction and advanced features ensure accurate operation in a variety of challenging environments. With a robust brass, nickel-plated housing and IP67 degree of protection, it offers superior resistance to harsh conditions.

Technical Specifications:

• Operating Voltage: 10 to 30 V DC
• Operating Current: 150 mA
• Switching Output: Normally Open
• Electrical Design: PNP
• Rated Operating Distance: 4 mm
• Mounting: Flush mountable
• Switching Frequency: 0 to 1000 Hz
• Connection Type: Cable
• Cable Diameter, Length: 3.5 mm, 2 m
• Housing Material: Brass, nickel-plated
• Sensing Face: PBT
• Degree of Protection: IP67
• Ambient Temperature: -20 to 70 Degrees Celsius
• Sensor Diameter, Length: 12 mm, 50 mm

With its precise sensing capabilities and robust design, this inductive sensor is ideal for demanding industrial applications, offering reliable performance in a wide range of operating conditions.
