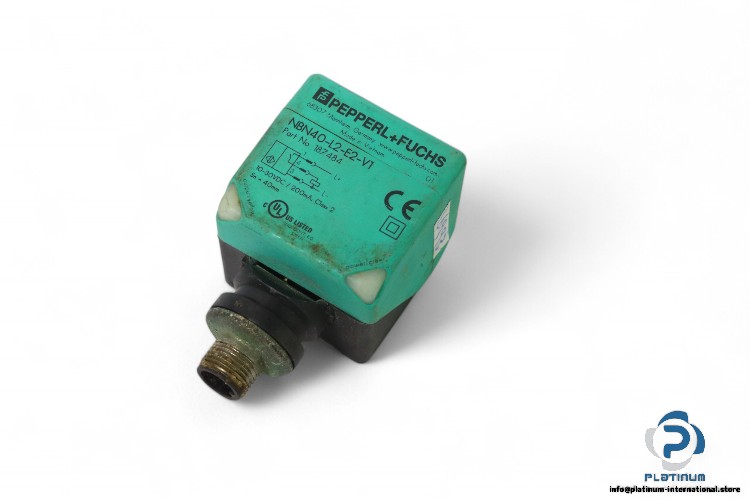

Manufacturer: PEPPERL FUCHS
Type: INDUCTIVE SENSOR
Model No.: NBN40L2E2V1
Part No.: 187484

Rated Operating Distance: 40 mm
Assured Operating Distance: 0 … 32.4 mm
Actual Operating Distance: 36 … 44 mm
Operating Voltage: 10 … 30 V DC
Operating Current: 200 mA
Switching Frequency: 0 … 200 Hz
Electrical Design: PNP
Switching Output: Normally Open

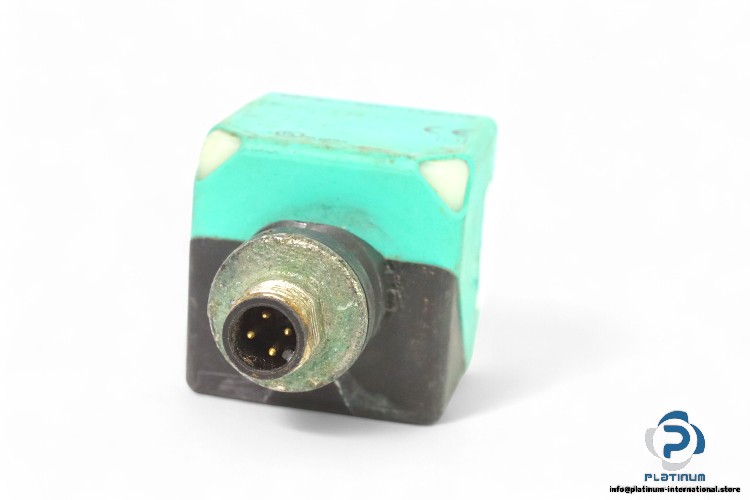

Connector Type: M12 Connector, 4-Pin
Protection Class: II
Enclosure Rating: IP69K
Ambient Operating Temperature: -25 … 85°C
Dimensions: 40 x 40 x 66 mm
Housing Material: PBT
Mounting: Non-Flush Mountable
