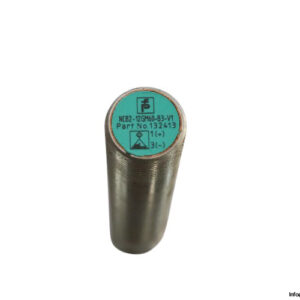

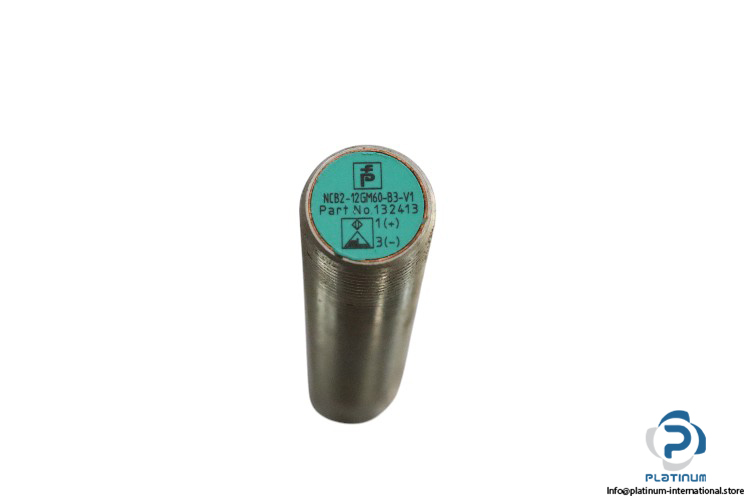

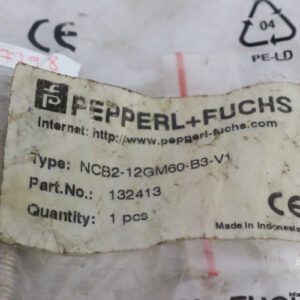

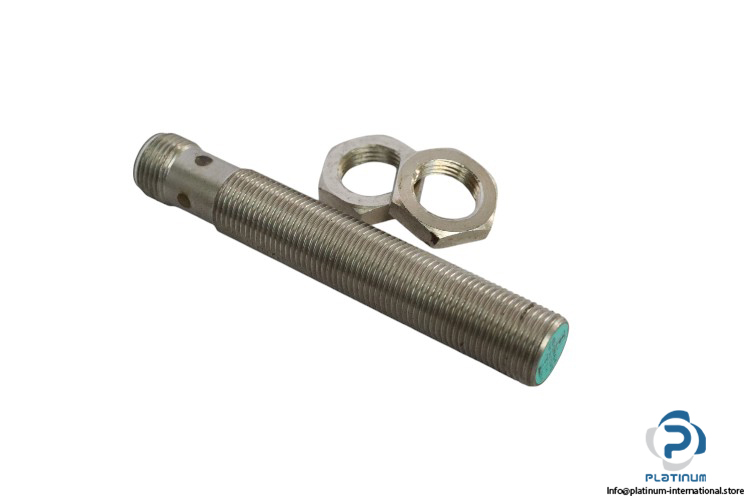

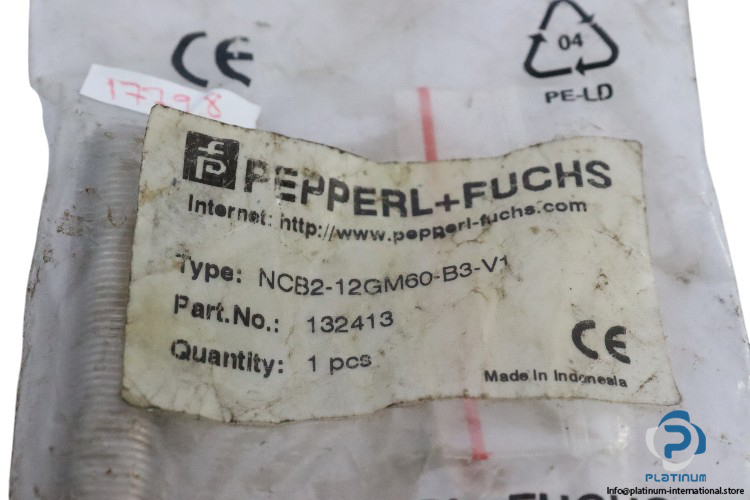

Pepperl+Fuchs Inductive Sensor NCB212GM60B3V1
Pepperl+Fuchs Inductive Sensor NCB212GM60B3V1 is a reliable and precise sensor designed for industrial automation. With a sensing range of 2 mm, it operates efficiently in a wide temperature range and is designed for robust performance in harsh environments. Ideal for applications requiring high-speed switching, this sensor provides excellent durability and reliable performance.
- Manufacturer: Pepperl+Fuchs
- Type: Inductive Sensor
- Model: NCB212GM60B3V1
- Part No.: 132413
Technical Data:
- Sensing Range: 2 mm
- Operating Voltage: 26.5 to 31.9 V
- No-load Supply Current: max. 25 mA
- Switching Function: Normally open/closed (NO/NC) programmable
- Output Type: AS-Interface
- Output Type: 2-wire
- Connector Type: M12, 4 Pins
- Frequency: 0 to 500 Hz
- Material: Stainless steel
- Dimensions: M12 x 60 mm
- Protection Degree: IP67
- Operating Temperature: -25 to 70°C
