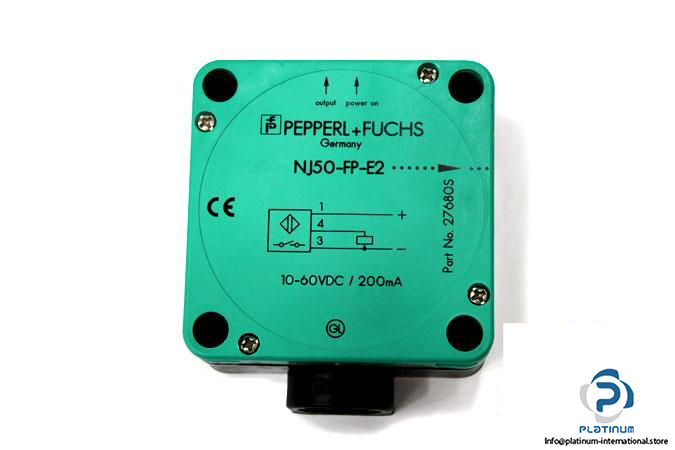

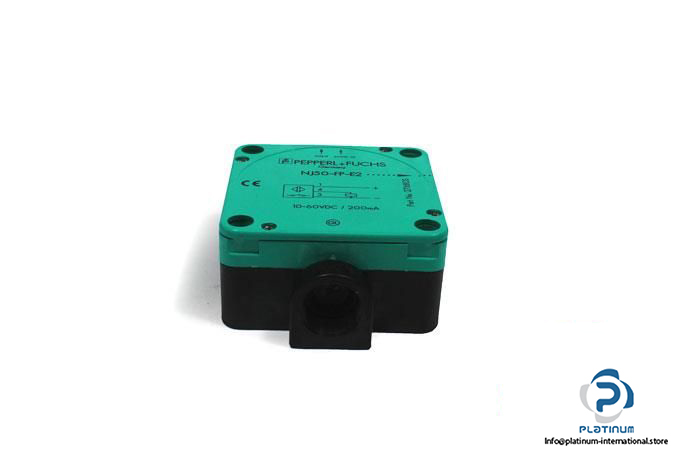

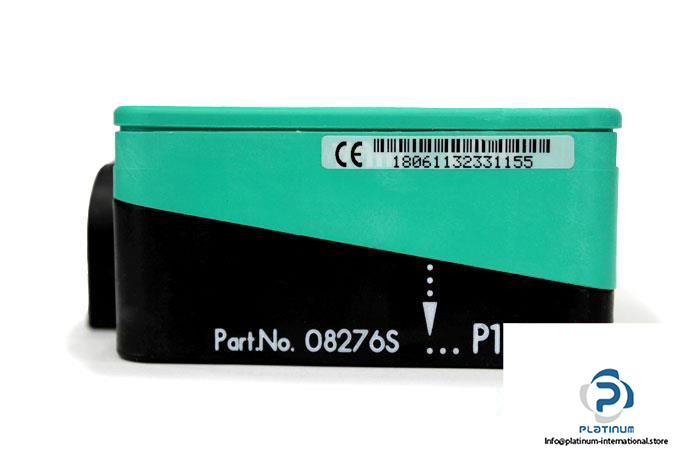

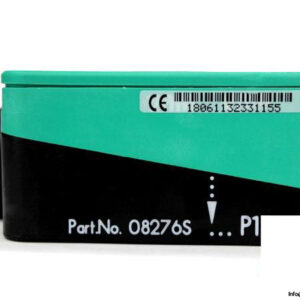

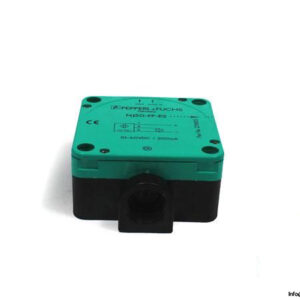

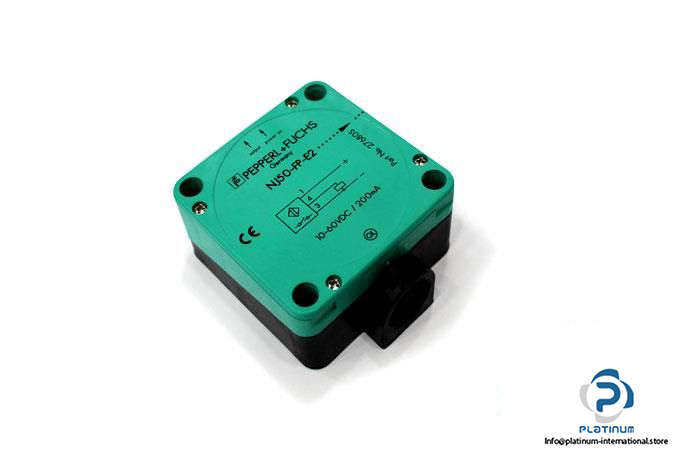

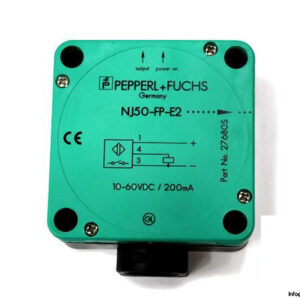

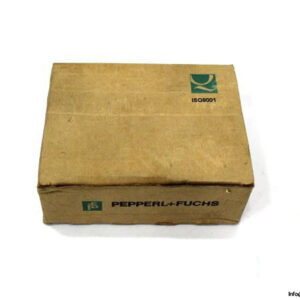

PEPPERL+FUCHS NJ50FPE2P1 INDUCTIVE SENSOR

The PEPPERL+FUCHS NJ50FPE2P1 is a robust non-flush inductive sensor designed for reliable object detection in harsh industrial environments. With a long sensing range of up to 50 mm and IP67 protection, it ensures stable operation under demanding conditions.

Manufacturer: Pepperl Fuchs
Type: Inductive Sensor
Model: NJ50FPE2P1
Part No.: 27680S

Technical Information

• Rated Operating Distance: 50 mm
• Assured Operating Distance: 0 / 40.5 mm
• Time Delay Before Availability: 30 ms
• Operating Voltage: 10 / 60 V DC
• Operating Current: 200 mA
• Switching Frequency: 0 / 100 Hz
• Electrical Design: PNP
• Switching Output: Normally Open
• Connector Type: Terminal Compartment
• Protection Class: II
• Enclosure Rating: IP67
• Ambient Operating Temperature: -25 to 70 °C
• Dimensions: 80 x 40 x 80 mm
• Housing Material: PBT
• Sensing Face Material: PBT
• Mounting: Non-Flush, Mountable
