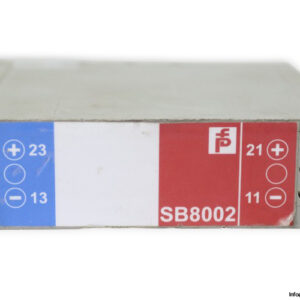

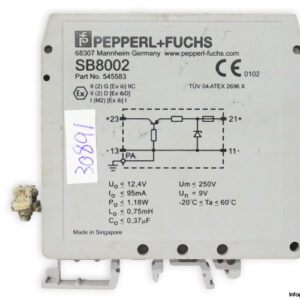

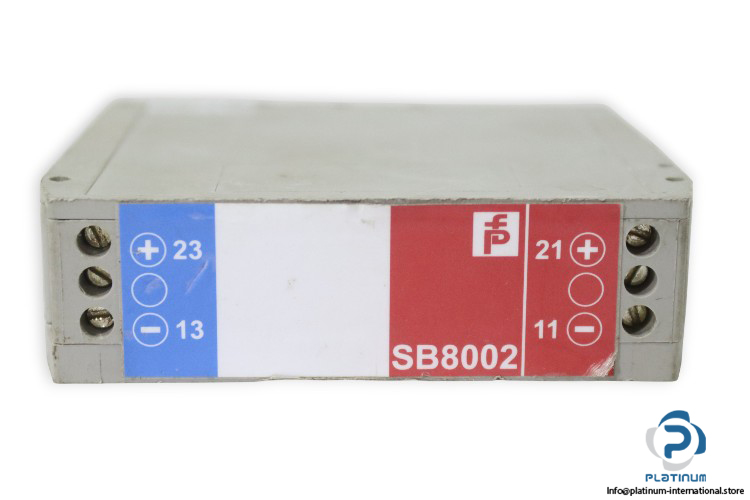

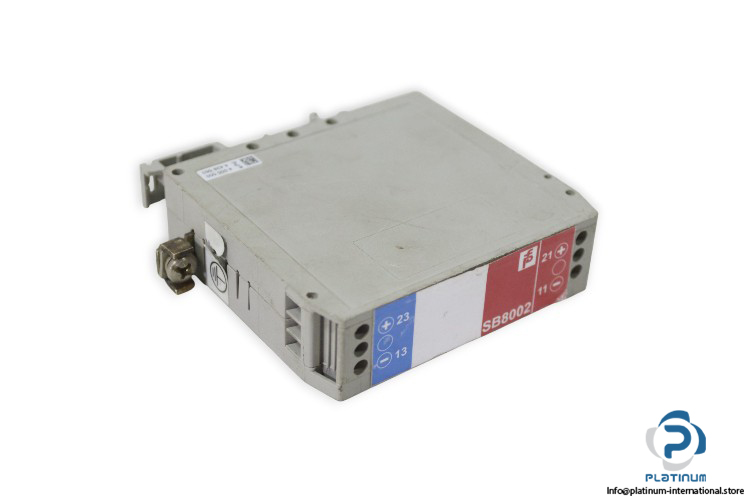

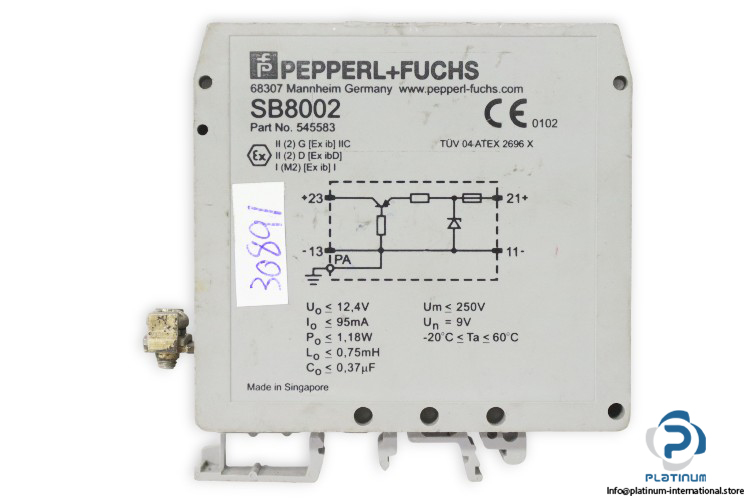

Pepperl+Fuchs SB8002 Zener Barrier DC Version
The Pepperl+Fuchs SB8002 Zener Barrier DC Version is a reliable safety interface designed for intrinsically safe circuits in hazardous area applications. It limits energy transfer between safe and hazardous zones, ensuring secure and stable signal transmission in industrial control systems.
Manufacturer: Pepperl+Fuchs
Type: Zener Barrier DC Version
Model: SB8002
Part No: 545583
Technical Information
- Working Voltage: 12.4 V
- Short-Circuit Current: 95 mA
- Power: 1180 mW
- Safe Voltage Max.: 250 V AC / 125 V DC
- Resistance: 18.7 Ohm
- Hazardous Area Connection Terminals: 13, 23
- Safe Area Connection Terminals: 11, 21
- Protection Class: IP20
- Ambient Temperature: -20 … 60 °C
- Dimensions: 79 x 22.5 x 85.5 mm
