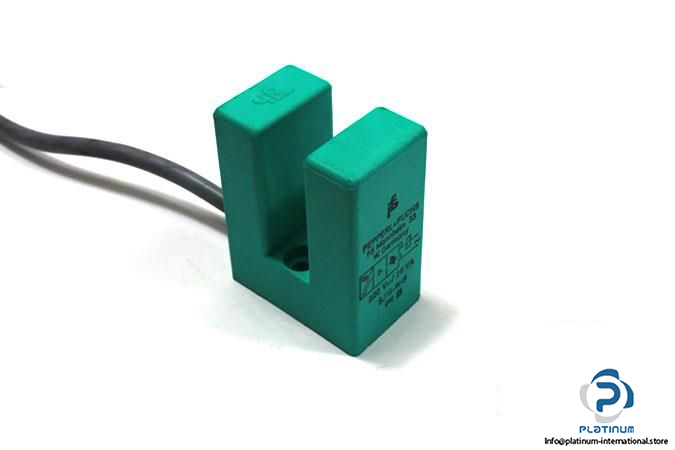

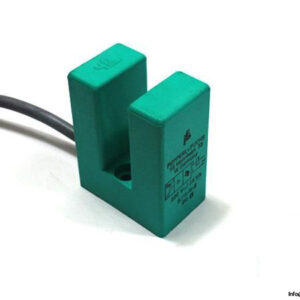

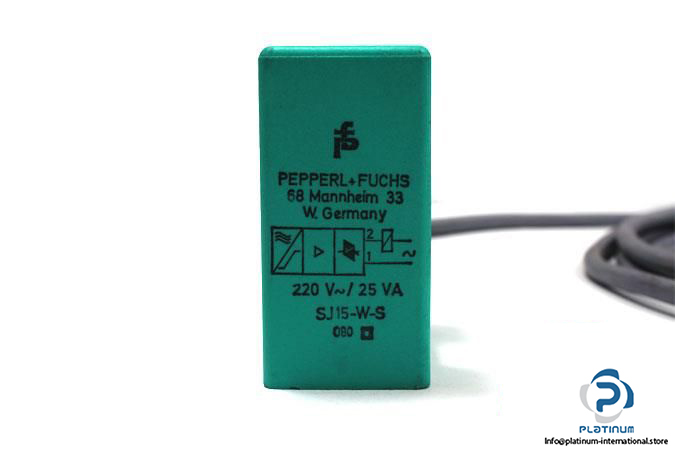

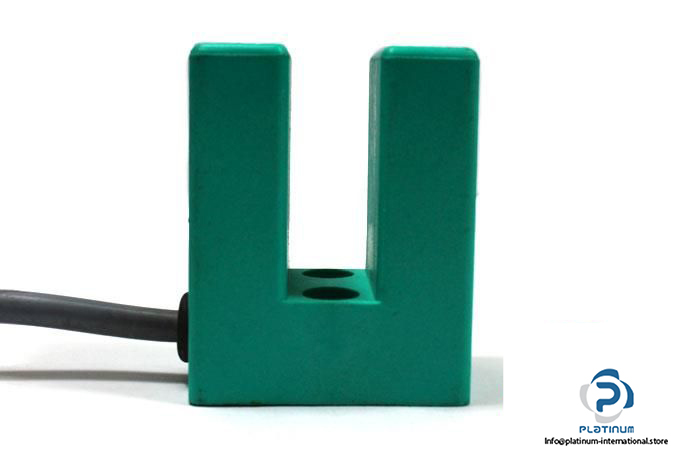

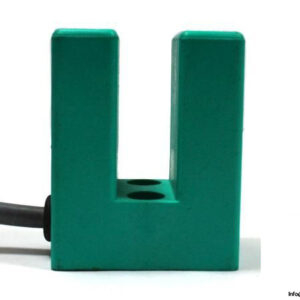

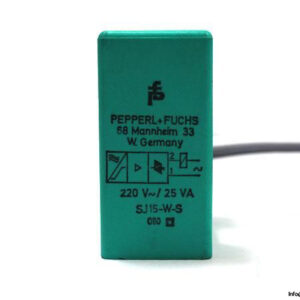

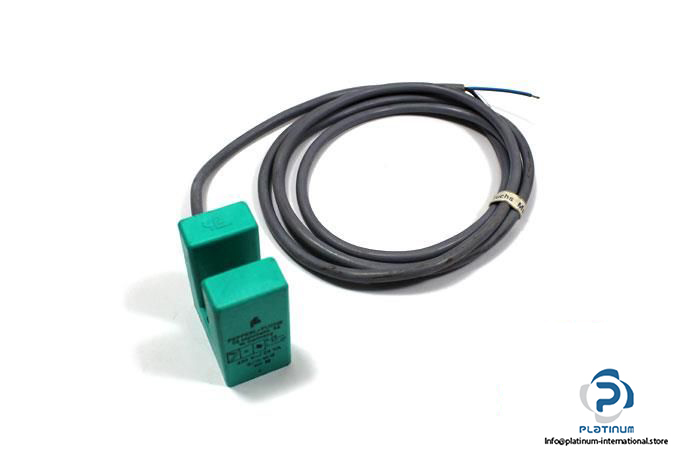

Pepperl+Fuchs SJ15-W-S Inductive Slot Sensor

The Pepperl+Fuchs SJ15-W-S is a high-quality inductive slot sensor designed for precise position and object detection in industrial automation systems. With a durable PBT housing, wide operating voltage range, and IP67 protection, this sensor ensures reliable performance even in demanding environments.

Manufacturer: Pepperl+Fuchs
Type: Inductive Slot Sensor
Model No.: SJ15-W-S

Technical Information

Slot Width: 15 mm
Depth of Insertion: 18.5 / 20.5 mm
Operating Voltage: 20 / 253 V AC
Operating Current: 5 / 500 mA
Switching Frequency: 0 / 25 Hz
Switching Output: Normally Open
Connector Type: PVC Cable, 2 m
Protection Class: III
Enclosure Rating: IP67
Ambient Operating Temperature: -25 / 70°C
Dimensions: 48 x 30 x 60 mm
Housing Material: PBT
