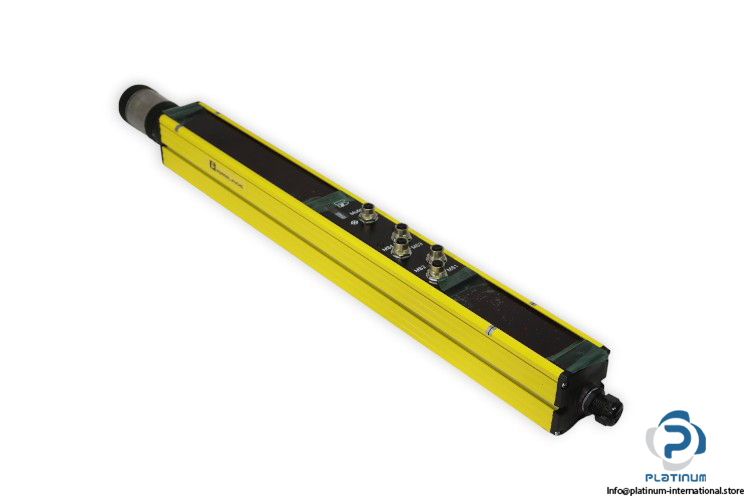

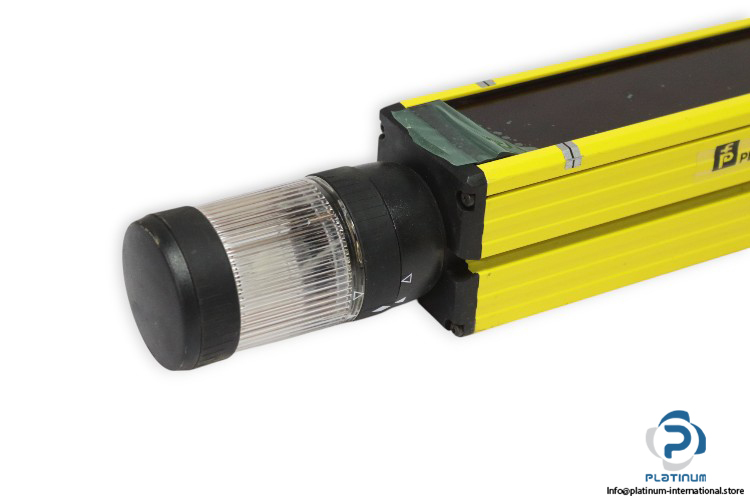

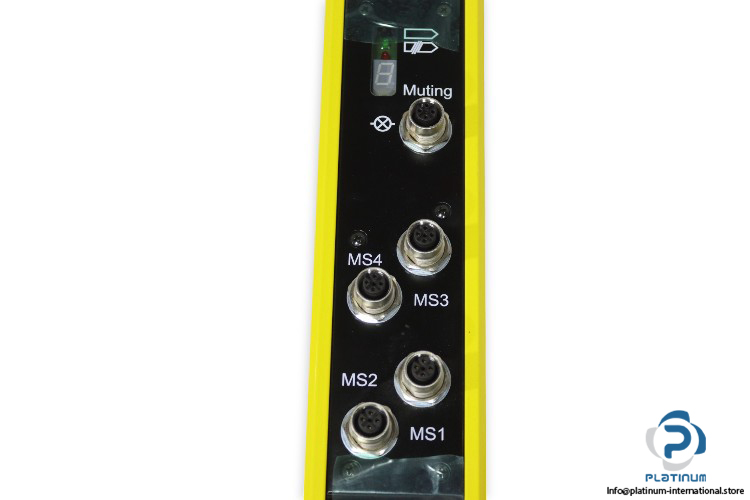

PEPPERL+FUCHS SLPCM8-2A-L/31 SAFETY LIGHT GRID
This high-performance safety light grid from Pepperl+Fuchs combines sensing and control in a compact transceiver design. With integrated control electronics and fast response time, it ensures effective personnel and machine protection in industrial environments. Its rugged IP65 enclosure and wide detection range make it ideal for demanding safety automation tasks.

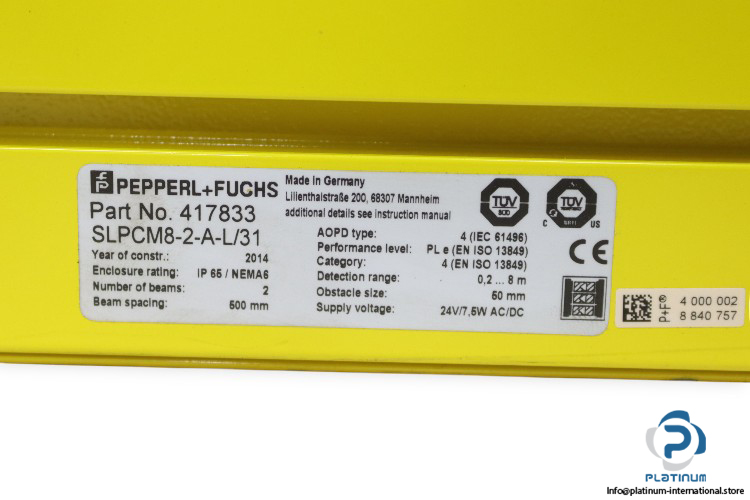

Manufacturer: Pepperl+Fuchs
Type: Safety light grid with integrated control unit (2-radial design) (Transceiver)
Model: SLPCM8-2A-L/31
Part No.: 417833
Technical Information
- Supply Voltage: 24V / 7.5 W AC/DC
- Obstacle Size: 50 mm
- Sensing Range: up to 8 m
- Activation Time: 0.03 to 1 s
- Detection Range: 0.2 to 8 m
- Beam Spacing: 500 mm

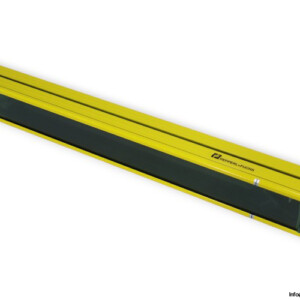

- Mirror Pillar: SLP8-2-M
- Light Source: LED
- Operating Voltage: 24 V DC
- No-Load Supply Current: max. 250 mA
- Pre-Fault Indication Output: 1 PNP
- Response Time: 40 ms
- Switching Power: 100 VA
- Ambient Temperature: 0 to 50 °C
- Degree of Protection: IP65
