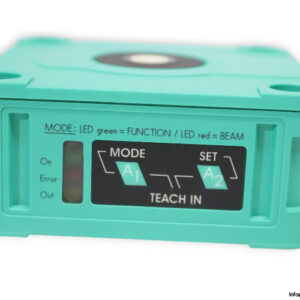

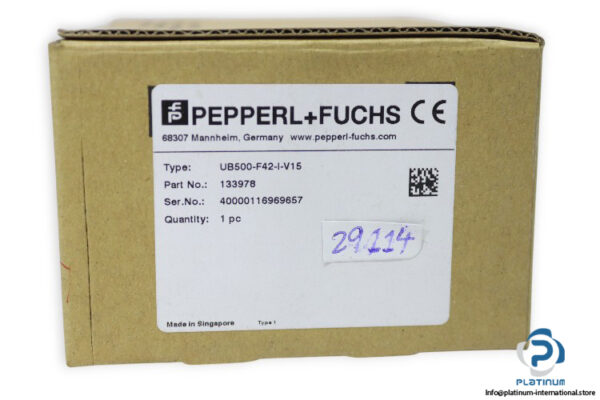

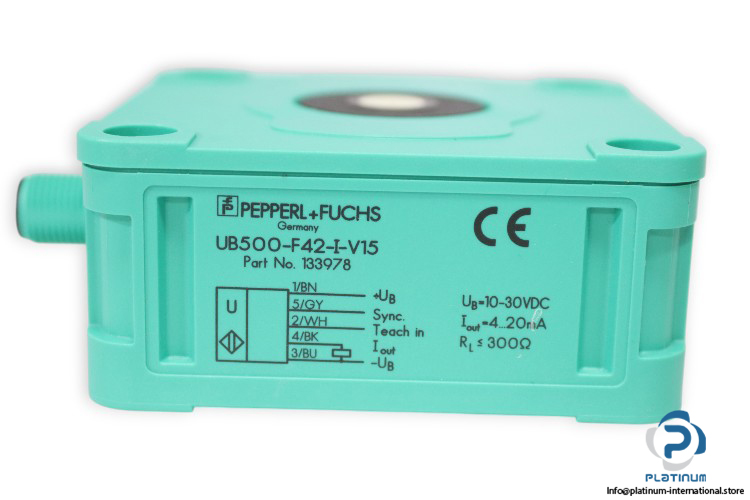

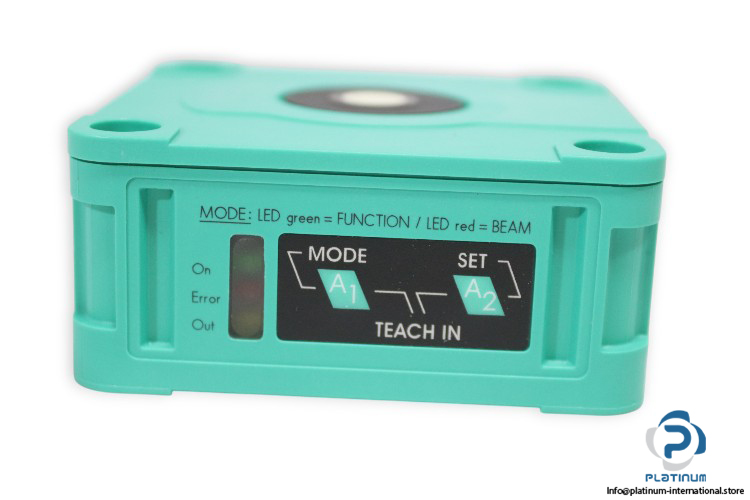

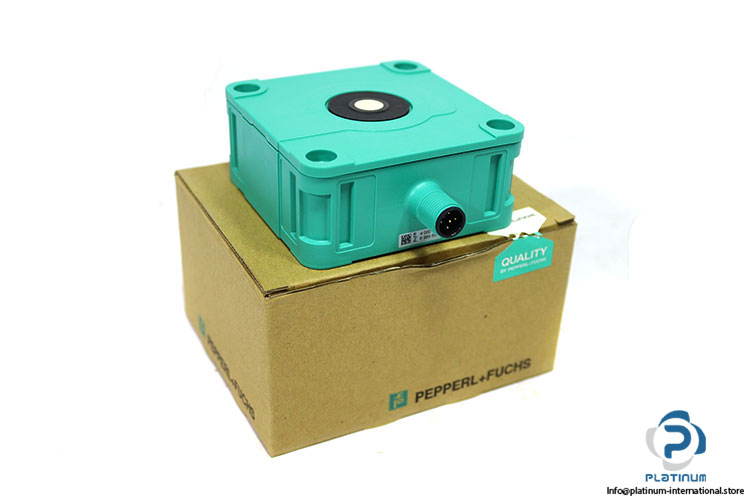

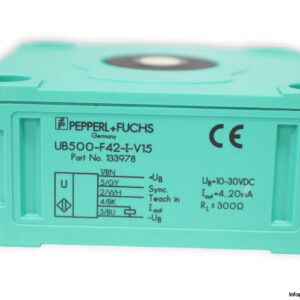

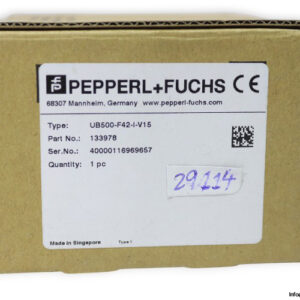

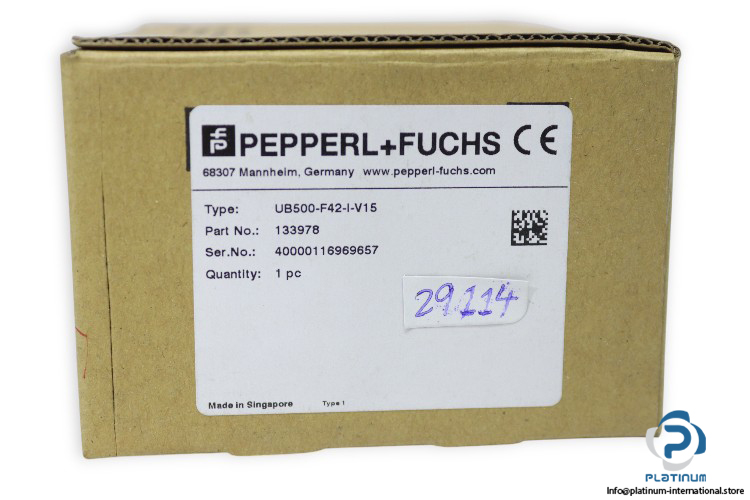

Pepperl+Fuchs UB500-F42-I-V15 Ultrasonic Sensor
The Pepperl+Fuchs UB500F42IV15 Ultrasonic Sensor is a reliable and precise sensing device designed for distance measurement in industrial automation applications. With a wide sensing range, analog output, and programmable switching modes, it ensures stable detection performance even in challenging environments.
Manufacturer: Pepperl+Fuchs
Type: Ultrasonic Sensor
Model: UB500-F42-I-V15
Part No.: 133978
Technical Information
- Sensing Range: 30 … 500 mm
- Operating Voltage: 10 … 30 V DC
- No-load Supply Current: 50 mA
- Switching Output: PNP Normally Open (NO) / Normally Closed (NC) Programmable
- Output Current: 200 mA
- Output Type: 1 Analog Output 4 … 20 mA

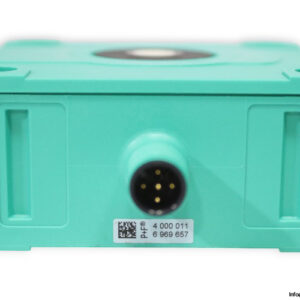

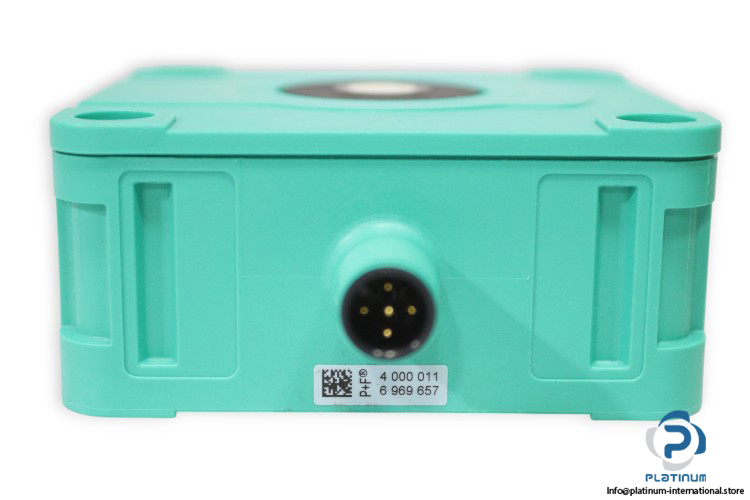

- Connection Type: Connector Plug M12x1, 5-Pin
- Material: ABS
- Protection Class: IP54
- Ambient Temperature: -25 / 70 °C
- Dimensions: 80 x 80 x 34 mm
