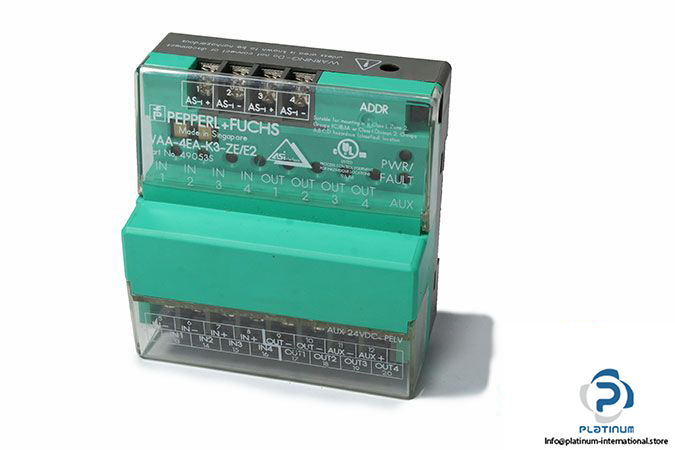

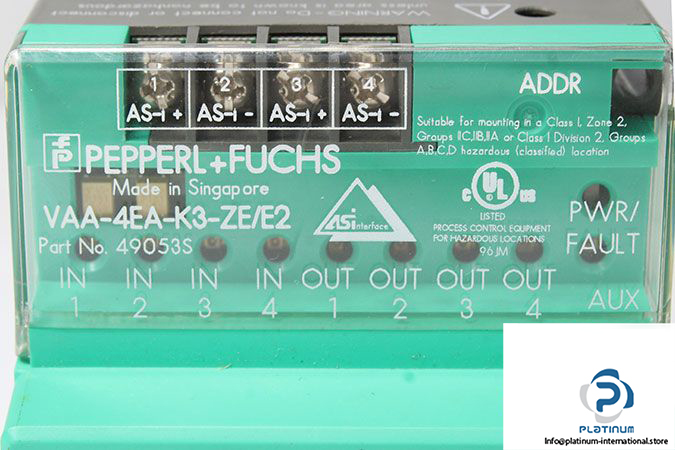

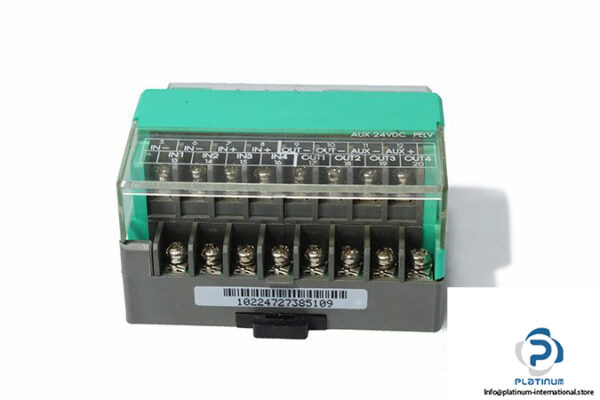

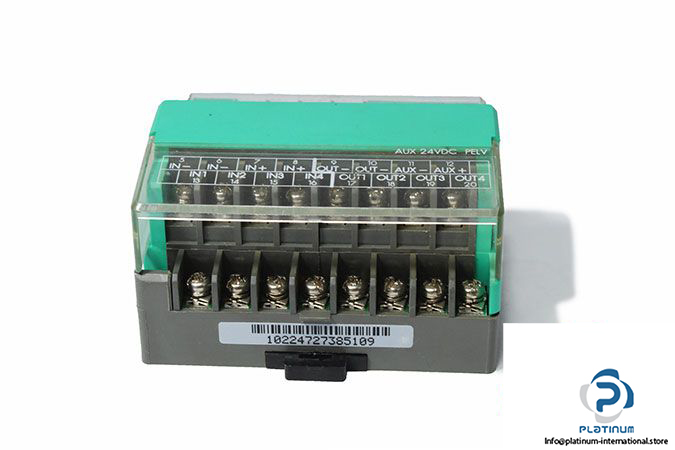

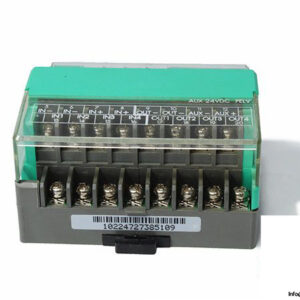

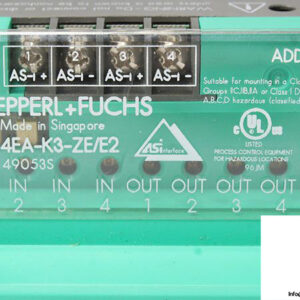

Manufacturer: PEPPERL+FUCHS

Type: AS-Interface Sensor/Actuator Module

Model: VAA-4EA-K3-ZE/E2

Part No.: 49053S

Auxiliary Voltage (Output): 24 VDC ± 15 % PELV

Rated Operating Voltage: 26.5 … 31.6 V from AS-Interface

Rated Operating Current: ≤ 60 mA

Protection Class: III

Input:

Number/Type: 4 inputs for 2- or 3-wire sensors (PNP), DC

Current Loading Capacity: ≤ 1 A

Input Current: ≤ 8 mA (limited internally)

Output:

Number/Type: 4 electronic outputs, PNP

Current: 500 mA per output

Voltage: ext. auxiliary voltage UAUX – 0.5 V



Degree of Protection: IP20

Ambient Temperature: -25 … 60 °C

Dimensions: 71 X 39 X 75 mm

Weight: 0.1 Kg
