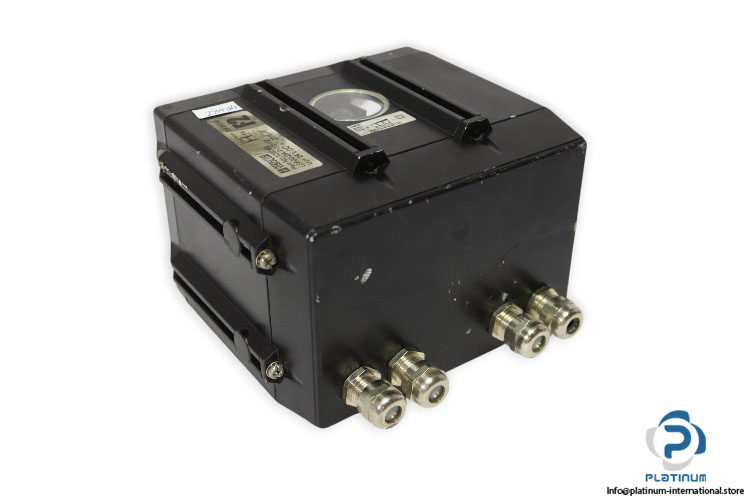

PEPPERL+FUCHS LS600DAP1.5F2 DATA TRANSMISSION LIGHT BEAM SWITCH
The Pepperl+Fuchs LS600-DA-P-1,5/F2 is a high-performance data transmission light beam switch designed for reliable optical communication in industrial automation. With PROFIBUS interface and a compact aluminium housing, it ensures fast, secure, and precise data transfer even in challenging environments.
Manufacturer: PEPPERL+FUCHS
Type: Data Transmission Light Beam Switch
Model: LS600-DA-P-1,5/F2

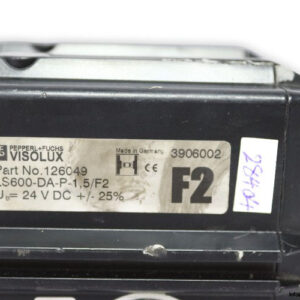

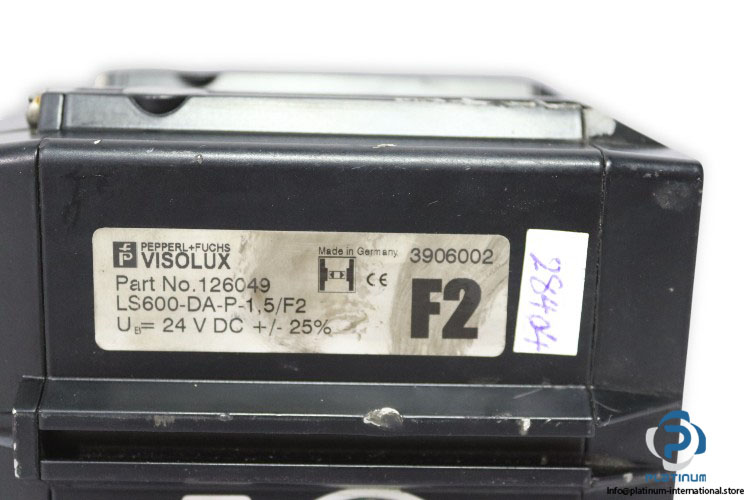

Part No.: 126049 / 3906002
Range: VISOLUX
Technical Information
- Detection Range Max.: 130 mm
- Data Transmission Max.: 1.5 MBit/s
- Operating Voltage: 24 V DC
- No-Load Supply Current: 450 mA
- Interface Type: PROFIBUS
- Switching Output: 2 PNP
- Material: Aluminium
- Protection Class: IP65
- Ambient Temperature: -20 / 50 °C
- Dimensions: 162 x 116 x 133 mm
