Perry 1IO0022/D15 Digital Daily Time Switch
The Perry 1IO0022/D15 is a versatile digital daily and weekly time switch designed for precise control of lighting, electrical loads, and automation functions. Featuring a circular 1 LCD display, tappet-based programmation, and DIN-rail installation, it delivers high reliability for civil, tertiary, and industrial applications. With up to 672 weekly programs, automatic daylight saving adjustment, and a rechargeable NiMH reserve battery, this timer ensures long-lasting and accurate performance.
Manufacturer: Perry
Type: Digital Daily Time Switch with Tappets and Display “ 2 DIN
Model: 1IO0022/D15
Technical Information
- Power Supply: 230 V AC, 50“60 Hz
- Contact Output: 16 (2) A / 250 V AC
- Maximum Programs: 96 (daily) / 672 (weekly)
- Minimum ON/OFF Time: 15 minutes

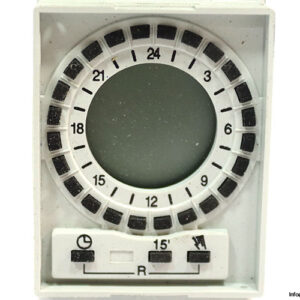

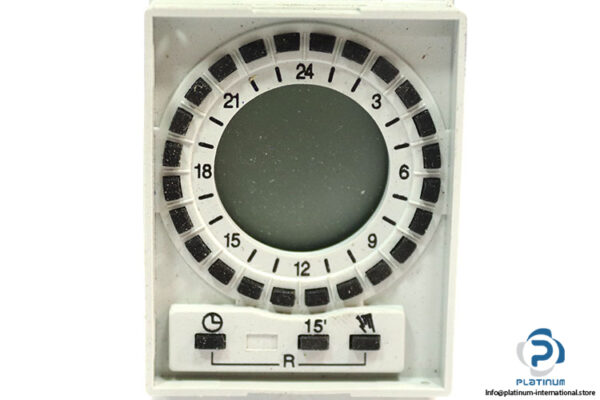

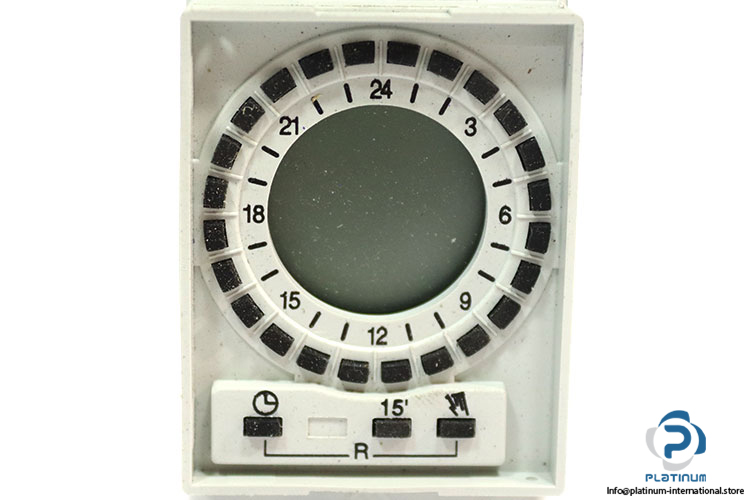

- Display: 1 Circular LCD
- Maximum Lighting Load: 3500 VA (each contact)
- Incandescent Lamps: 2300 W
- Fluorescent Tube (Not Compensated): 1000 W
- Parallel Compensated Fluorescent Tubes: 290 W (total capacity 35 μF)
- Compact Fluorescent Lamps: 105 W (7 × 15 W)
- LED Load: Max 15 × 4 W / 10 × 8 W / 7 × 15 W
- Terminal Wire Cross-Section: Up to 2.5 mm²
- Protection Degree: IP20; IP30 (with covers); IP40 (rear of switchboard)
- Output Type: Terminals with captive screw
- Insulation Class: Class II
- Relay Signal: ON/OFF shown on LCD
- Reserve Type: NiMH rechargeable battery
- Time Tolerance: ±1 sec/day
- Operating Temperature: 0°C to +55°C
- Storage Temperature: ˆ’10°C to +65°C
- Installation Type: DIN rail / wall-mounted / rear of switchboard
- Reserve Duration (R): 360 hours
- Housing: Thermoplastic, Grey RAL 7035
- Type of Use: Civil / Tertiary / Industrial
- Controls: Programming keys, ON/OFF key
- Clock Setting Accuracy: Digital (hours/minutes)
- Daylight Saving Adjustment: Automatic
- Dimensions (L × W × H): 35 × 60 × 128 mm
