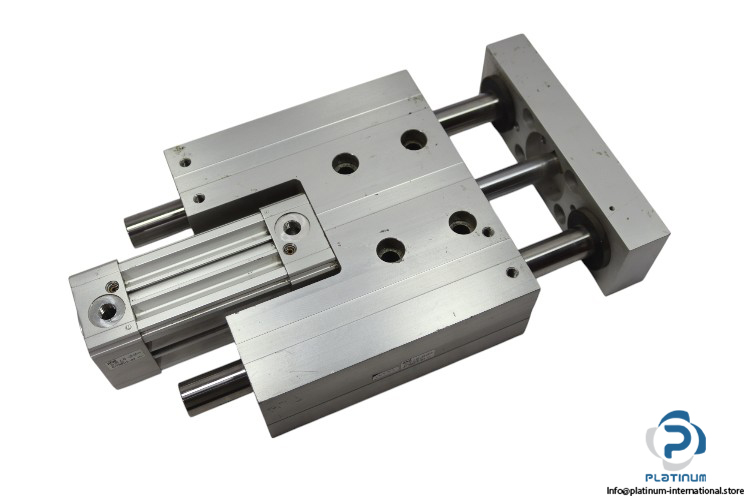

PHD SLC86 X 65-BR-DB-M-Q1-Z1 Compact Slide & Compact Cylinder

The PHD SLC86 X 65-BR-DB-M-Q1-Z1 is a high-performance compact slide and compact cylinder designed for precision motion control in industrial automation. With a 50 mm bore diameter and 65 mm stroke, this cylinder operates efficiently with a maximum pressure of 150 PSI and a velocity of 80 in/sec. It is engineered to perform reliably in a wide range of temperatures from -29°C to 82°C.

Manufacturer: PHD

Type: Compact Slide & Compact Cylinder

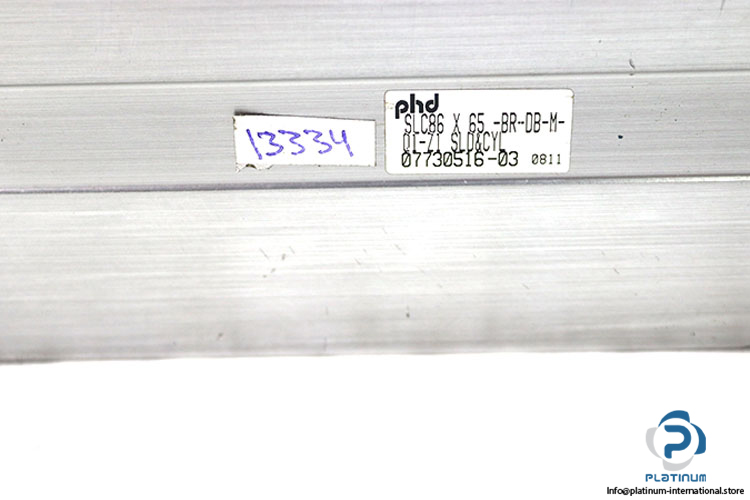

Model: SLC86 X 65-BR-DB-M-Q1-Z1 SLD&CYL

Part No.: 07730516-03 0811

Technical Data:

• Slide Size: 6
• Design: Long Body
• Design No.: 8
• Max Operating Pressure: 150 PSI
• Bore Diameter: 50 mm
• Shaft Size Dia: 25 mm
• Total Travel / Stroke: 65 mm
• Velocity: 80 in/sec
• Operating Temperature: -29 to 82 °C
• Port Size: G1/4

Attached with:

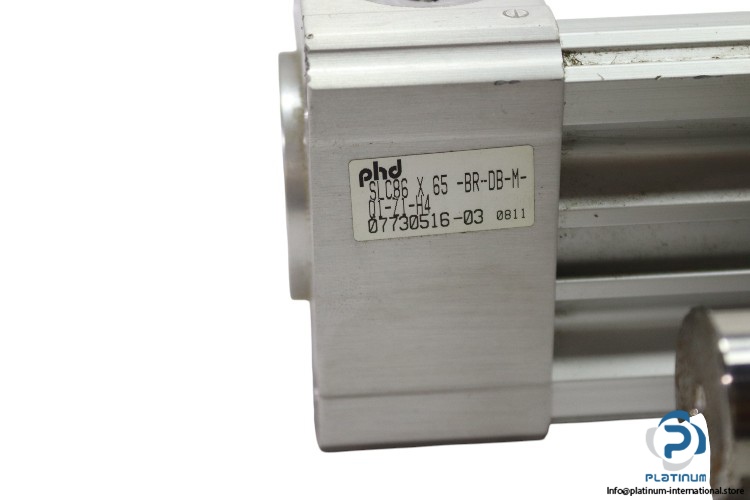

• Model: PHD SLC86 X 65-BR-DB-M-Q1-Z1-h4 Compact Cylinder
• Part No.: 07730516-03 0811
• Bore Diameter: 50 mm
• Stroke: 65 mm
• Port Size: G1/4
