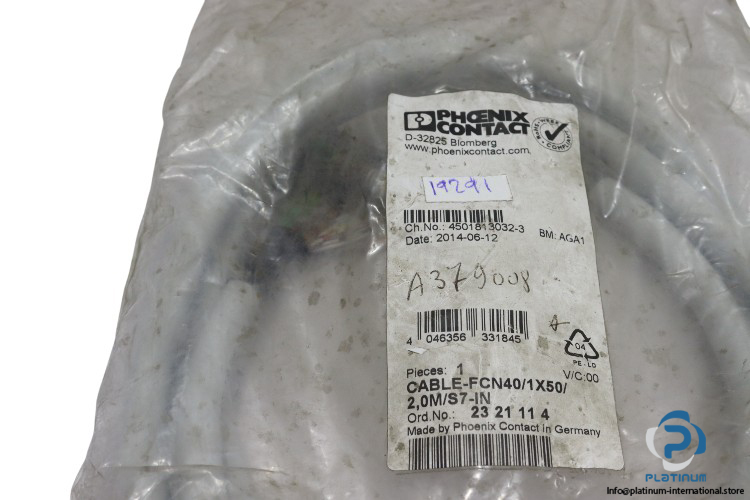

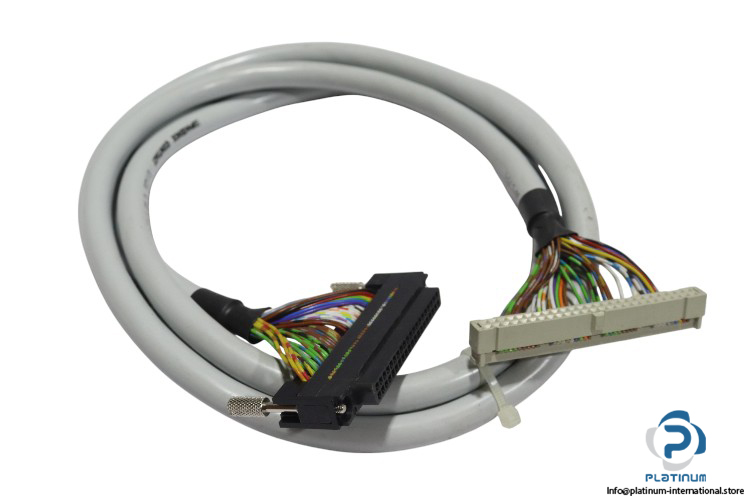

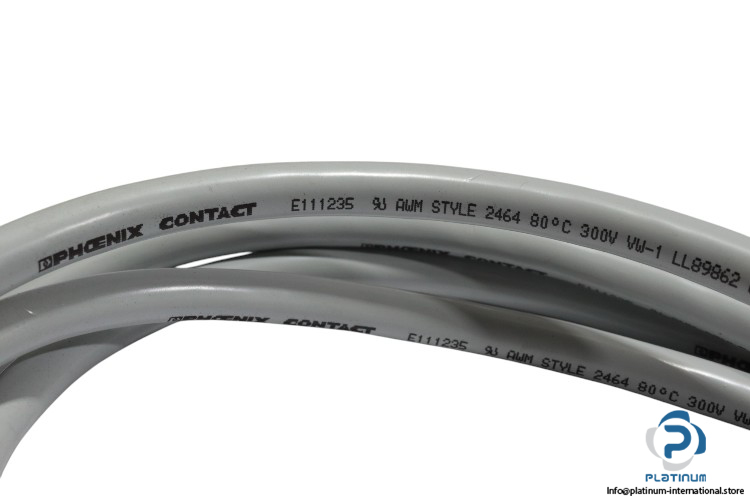

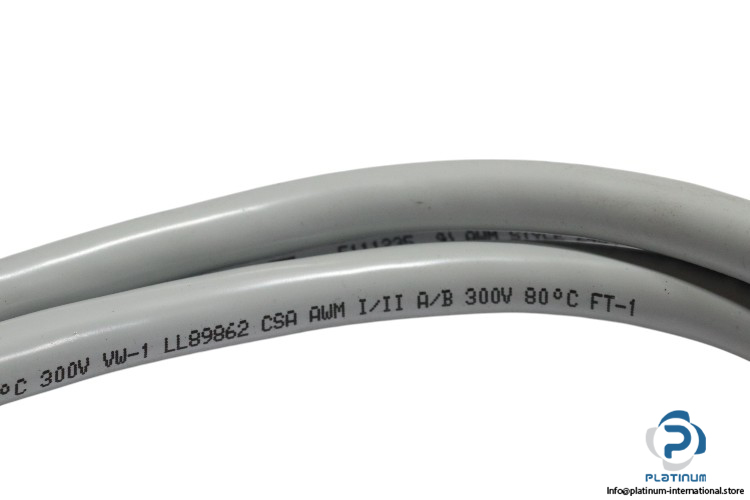

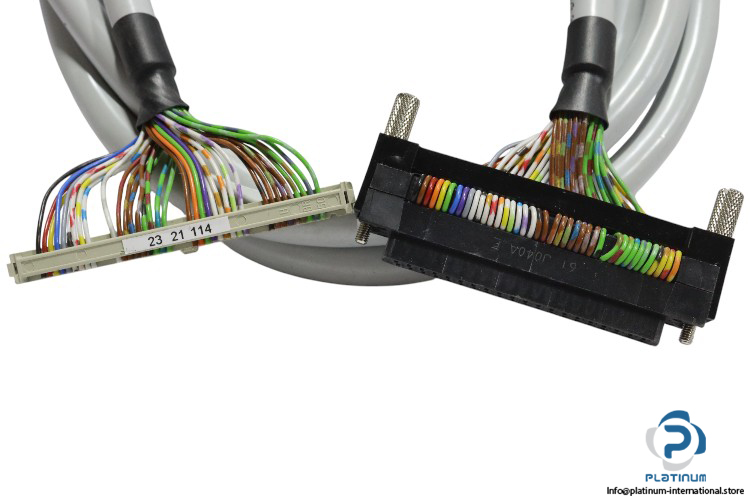

Phoenix Contact CABLE-FCN40/1X50/2,0M/S7-IN
The Phoenix Contact CABLE-FCN40/1X50/2,0M/S7-IN (Part No.: 2321114) is a high-quality industrial-grade cable designed for signal and control applications. With a nominal voltage rating of 50 V AC / 60 V DC and a current capacity of 1 A, it offers reliable connectivity with a single plug and a durable 2-meter tin-plated copper wire. Its 10 mm external diameter and flexible design ensure easy installation, even in compact control cabinets.
- Manufacturer: Phoenix Contact
- Type: Cable
- Model: CABLE-FCN40/1X50/2,0M/S7-IN
- Part No.: 2321114
Technical Specifications:
- Nominal Voltage (UN): 50 V AC / 60 V DC
- Max. Current: 1 A
- Length of Cable: 2 m
- AWG: 26
- Number of Plugs: 1
- Single Wire Material: Cu, Tin-Plated
- External Diameter: 10 mm
- Ambient Temperature (Operation): -20 to 50 °C
