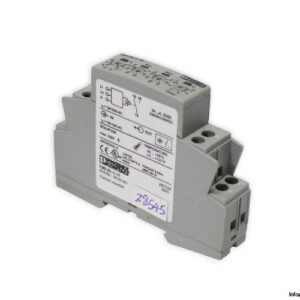

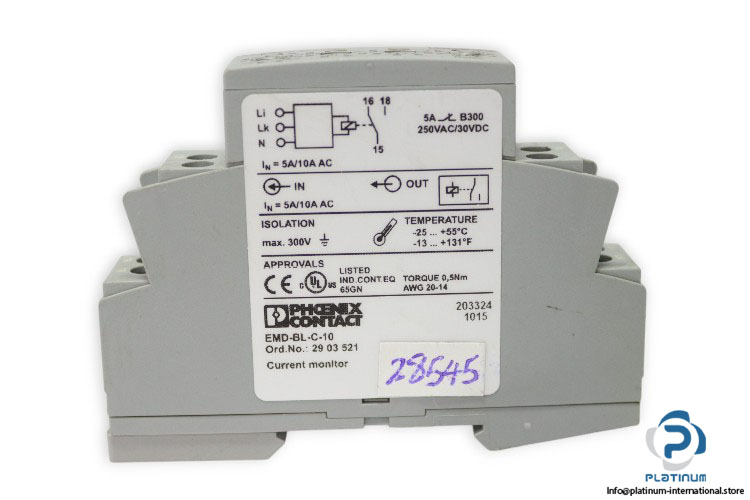

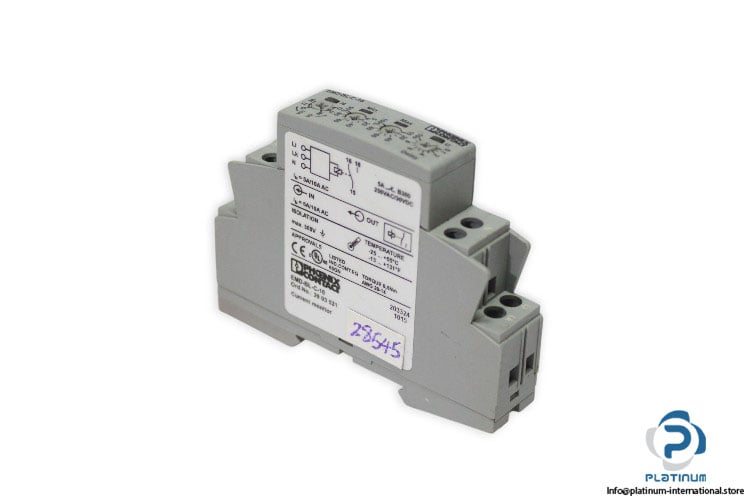

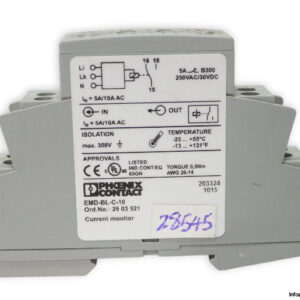

PHOENIX CONTACT EMD-BL-C-10 MONITORING RELAY

The Phoenix Contact EMD-BL-C-10 is a precision monitoring relay designed for reliable measurement and protection in electrical systems. With wide input current ranges and robust performance under demanding conditions, this relay ensures accurate monitoring of AC sine signals across industrial applications.

Manufacturer: PHOENIX CONTACT
Type: Monitoring Relay
Model: EMD-BL-C-10
Order No.: 29 03 521
Ref No.: 203324 / 1015

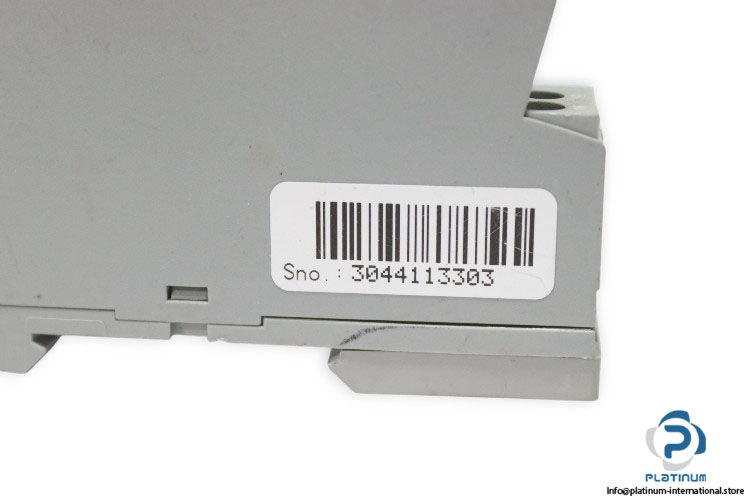

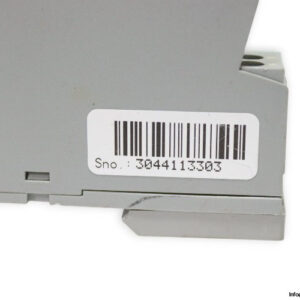

S No.: 3044113303

Technical Information

• Supply Voltage: 230 V AC ±15 %
• Nominal Power Consumption: 5 VA (0.8 W)
• Input Name: Measuring input
• Measured Value: AC sine (48 Hz … 63 Hz)
• Input Current Range: 0 A … 5 A / 0 A … 10 A
• Overload Capacity: 13 A AC
• Input Resistance Current Input: 3 mΩ
• Frequency Range: 48 Hz … 63 Hz
• Maximum Temperature Coefficient: ‰¤ 0.05 %

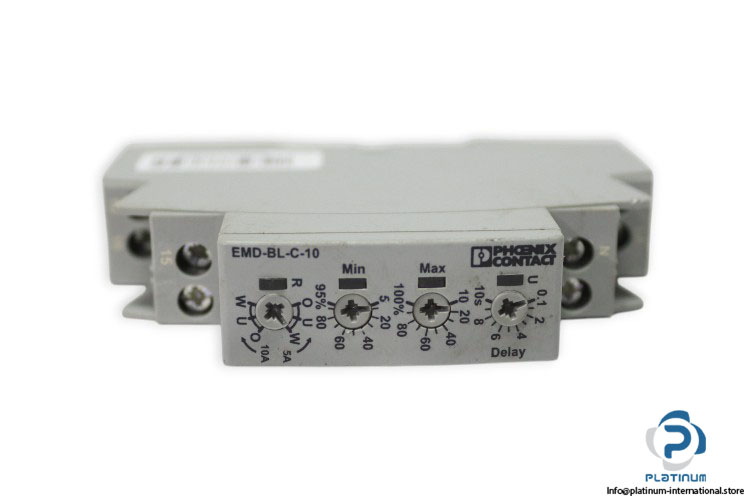

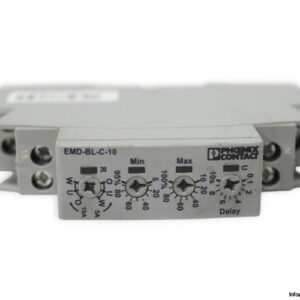

• Setting Range For Response Delay: 0.1 s … 10 s
• Degree of Protection (Housing): IP40
• Degree of Protection (Connection Terminals): IP20
• Ambient Temperature (Operation): -25 °C … 55 °C
