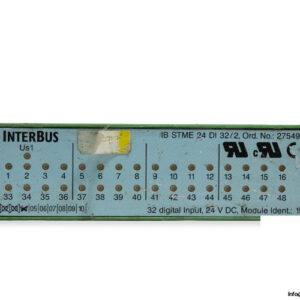

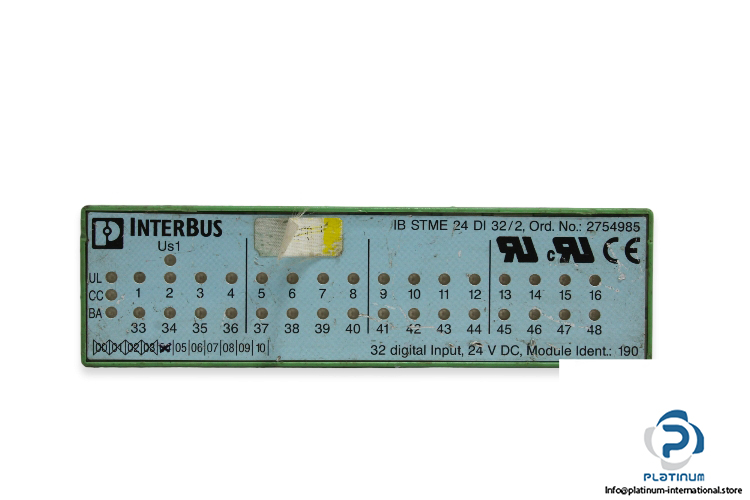

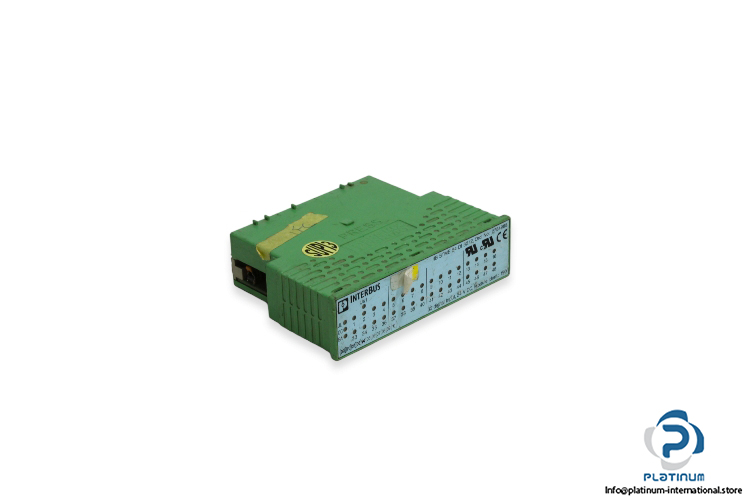

PHOENIX CONTACT IB STME 24 ID 32/2 DIGITAL INPUT MODULE
The Phoenix Contact IB STME 24 ID 32/2 Digital Input Module is a reliable solution for industrial automation systems, offering 32 digital inputs with efficient signal processing. Designed with INTERBUS interface and IP20 protection, it provides stable operation in demanding environments.
Manufacturer: Phoenix Contact
Type: Digital Input Module
Model: IB STME 24 ID 32/2
Order No.: 2754985
Technical Information
- I/O Supply Voltage: 24 V DC (20 / 30 V DC)
- Current Consumption: 200 mA
- Total Power Consumption: 4.8 W
- No. of Digital Inputs (DI): 32
- Nominal Current per Input: 5.0 mA at 24 V, typical
- Signal Level: Logic 0 (-30 V / 6 V) / Logic 1 (13 V / 30 V)
- Sensor Supply Voltage: 1 V (nominal)
- Sensor Current: 200 mA (nominal)
- Sensor Connection Method: 2-wire technology
- INTERBUS Interface: ST Cable
- Operating Temperature: 0 / 55 ºC
- Degree of Protection: IP20
