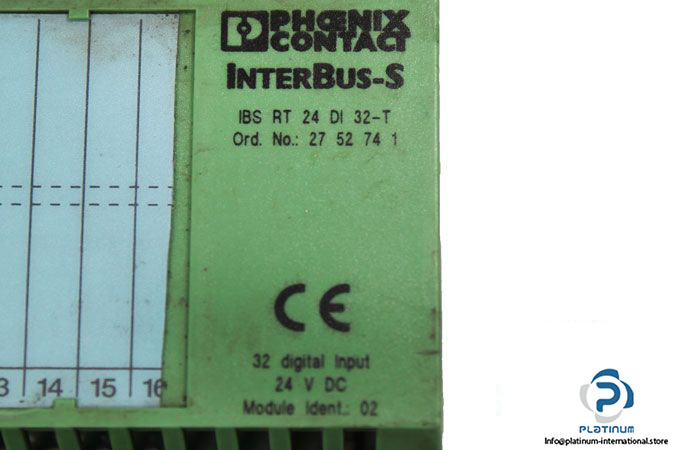

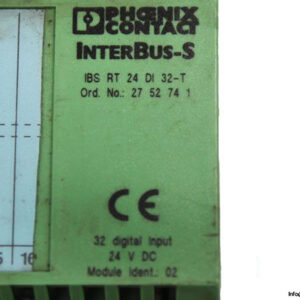

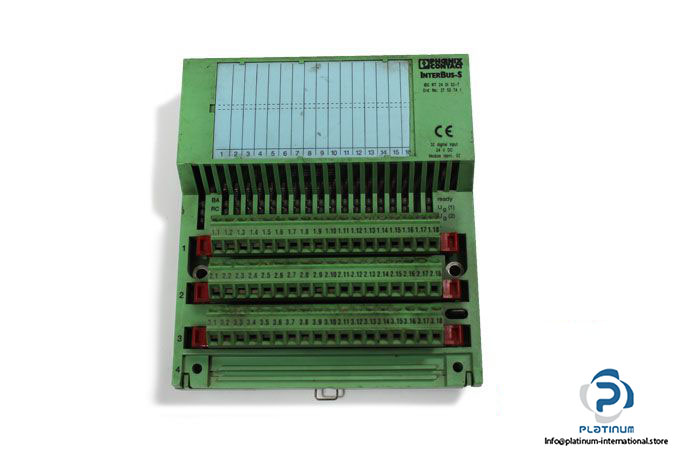

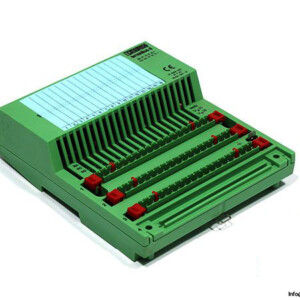

PHOENIX CONTACT IBS RT 24 DI 32-T I/O MODULE
The Phoenix Contact IBS RT 24 DI 32-T (Order No. 2752741) is a reliable I/O module designed for precise digital signal processing in industrial automation systems. With 32 inputs, wide input voltage ranges, and flexible connection technology, it delivers consistent performance for demanding applications.
Manufacturer: Phoenix Contact
Type: I/O Module
Model: IBS RT 24 DI 32-T “ 2752741
Order No.: 2752741
Technical Information
- Typical Current Consumption: 100 mA
- I/O Voltage: 24 VDC
- I/O Voltage Range: 19.2 / 30 VDC
- Residual Ripple: ± 1.2 VDC
- Number of Inputs: 32
- Number of Input Groups: 2
- Connection Technology: 1-wire (optionally 2, 3-wire)
- Typical Input Current Per Channel: 6 mA
- Input Voltage Range œ0 Signal: -30 / 5 VDC
- Input Voltage Range œ1 Signal: 15 / 30 VDC
