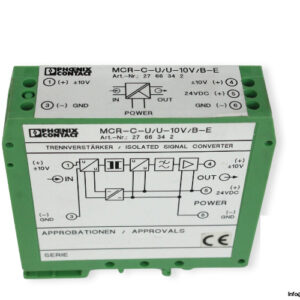

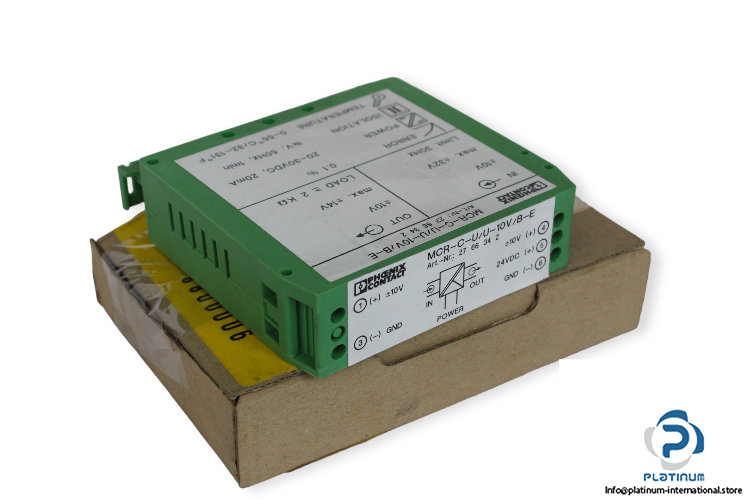

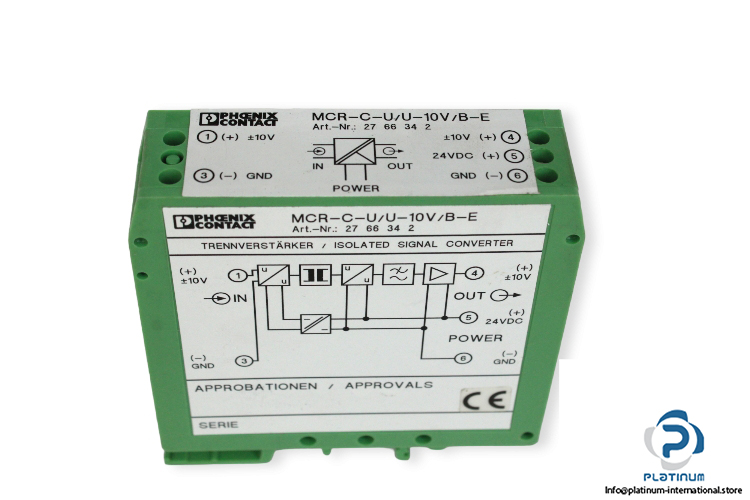

PHOENIX CONTACT MCR-C-U/U-10V/B-E ISOLATED SIGNAL CONVERTER

The Phoenix Contact MCR-C-U/U-10V/B-E Isolated Signal Converter is designed for precise voltage signal conversion and reliable galvanic isolation. With wide input and output ranges, it ensures safe and accurate performance in industrial automation systems.

Manufacturer: Phoenix Contact
Type: Isolated Signal Converter
Model: MCR-C-U/U-10V/B-E
Art. No.: 2766342

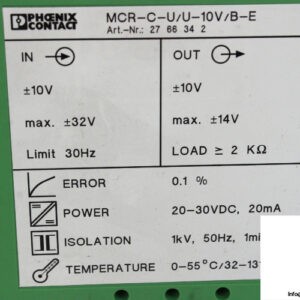

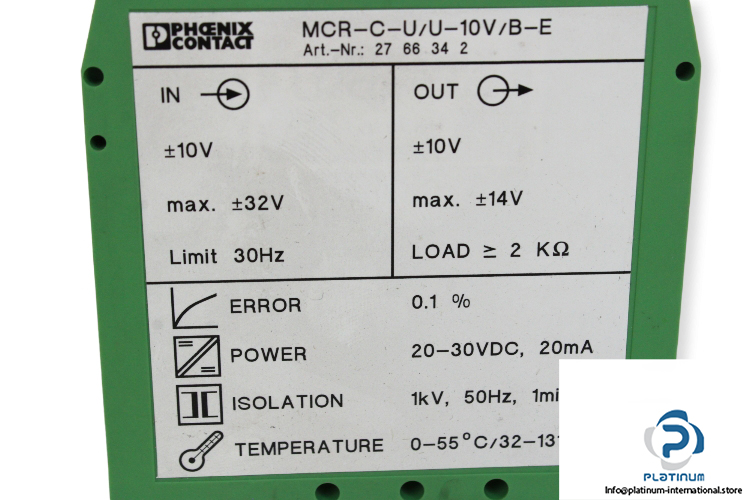

Technical Information

• Supply Voltage: 20 / 30 V DC
• Typical Current Consumption: 20 mA
• Voltage Input Signal: -10 / 10 V
• Max. Input Voltage: 30 V
• Frequency Limit: 30 Hz
• Voltage Output Signal: -10 / 10 V
• Max. Output Voltage: 14 V
• Load/Output Load Voltage Output: ‰¥ 2 kΩ
• Isolation Time: 1 m
• Ambient Temperature: 0 / 55 °C
