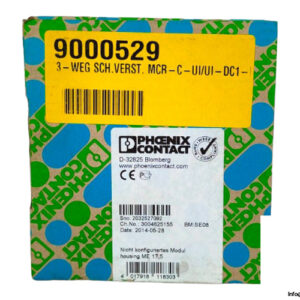

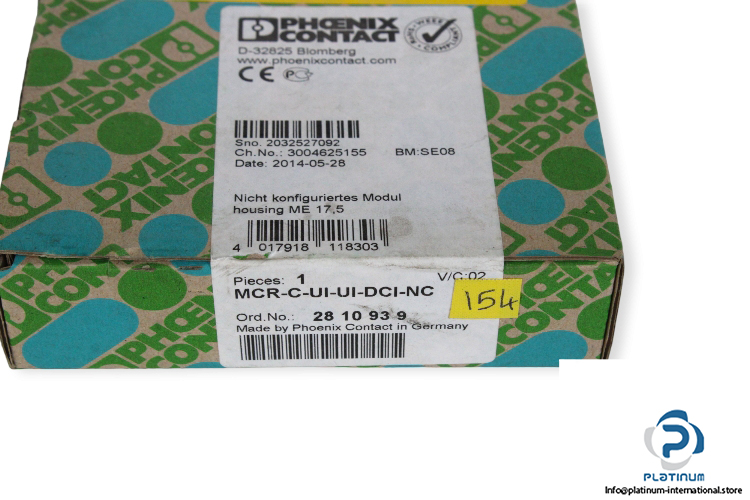

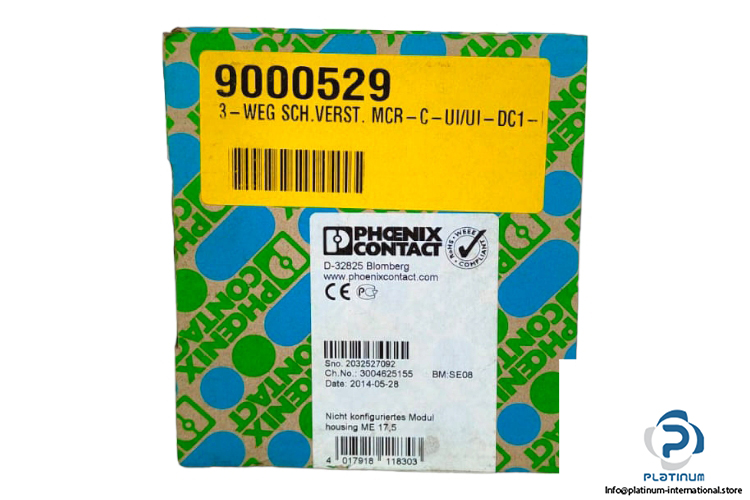

PHOENIX CONTACT MCR-C-UI-UI-DCI-NC ISOLATED SIGNAL CONVERTER
The Phoenix Contact MCR-C-UI-UI-DCI-NC is a compact isolated signal converter designed for accurate signal transmission and conversion in industrial automation systems. With pluggable screw connections, DIN rail mounting, and robust housing, it ensures reliable operation in demanding environments.
Manufacturer: Phoenix Contact
Type: Isolated Signal Converter
Model: MCR-C-UI-UI-DCI-NC
Art. No.: 2810939
Technical Information
- Supply Voltage: 18 / 30 V DC
- Max. Current Consumption: < 30 mA
- No. of Channels: 1
- Limit Frequency: 30 Hz
- Maximum Power Dissipation: 900 mW
- Voltage Input Signal: 0 / 10 V
- Max. Current Input Signal: 50 mA
- Voltage Output Signal: 0 / 10 V
- Max. Current Output Signal: 30 mA
- Housing Material: Polyamide PA non-reinforced
- Connection Method: Pluggable screw connection
- Degree of Protection: IP20
- Mounting Type: DIN rail mounting
- Ambient Temperature: -20 / 65°C
- Dimensions: 17.5 x 99 x 114.5 mm
