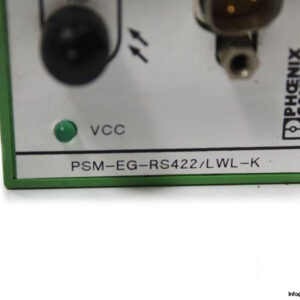

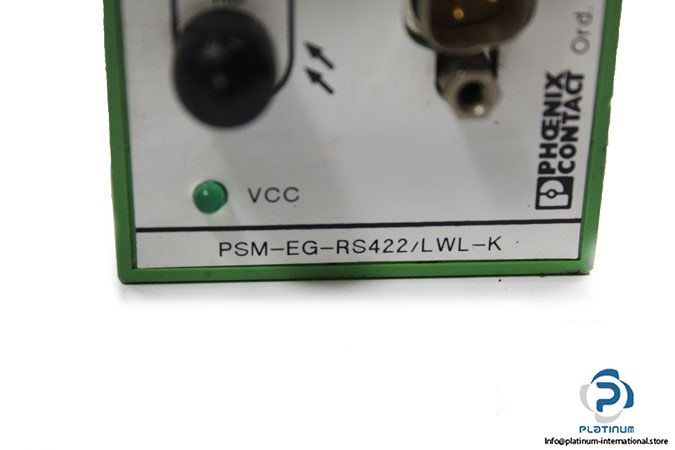

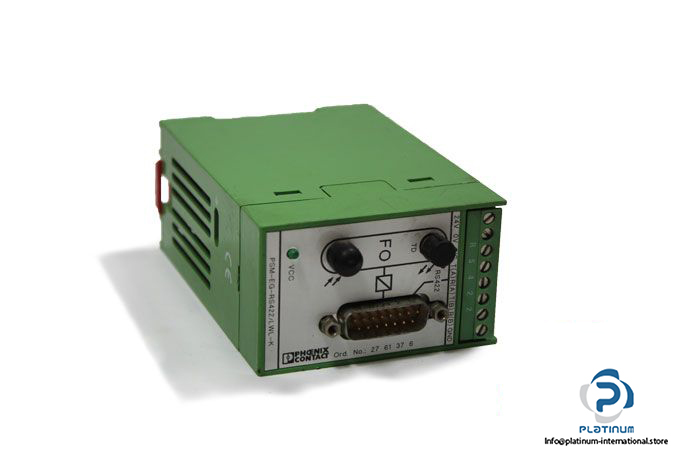

Phoenix Contact PSM-EG-RS422/LWL-K Fiber Optic Converter
The Phoenix Contact PSM-EG-RS422/LWL-K (Order No. 2761376) is a high-quality FO converter designed for reliable serial data transmission via fiber optics. It provides secure and interference-free communication for industrial environments, supporting RS422 interfaces and F-SMA optical connections. With a compact design and IP20 protection, it ensures robust performance and easy integration into automation systems.
Manufacturer: Phoenix Contact
Type: FO Converter
Model: PSM-EG-RS422/LWL-K “ 2761376
Order No.: 2761376
Technical Information
- Nominal Supply Voltage: 24 VDC
- Typical Current Consumption: max. 70 mA
- Transmission Length: 50 m
- Serial Transmission Speed: 500 kbps
- Optical Interface FO Connection Method: F-SMA Connector
- Color: Green
- Conductor Cross Section Flexible: 0.2 / 2.5 mm²
- Test Voltage Data Interface/Power Supply: 2.5 kV AC
- Wavelength: 660 nm
- Interface Connection Method: D-SUB-15 Male Connector
- Degree of Protection: IP20
- Ambient Temperature (Operation): 0 / 50 °C
- Dimensions (W x H x D): 75 × 45 × 112 mm
