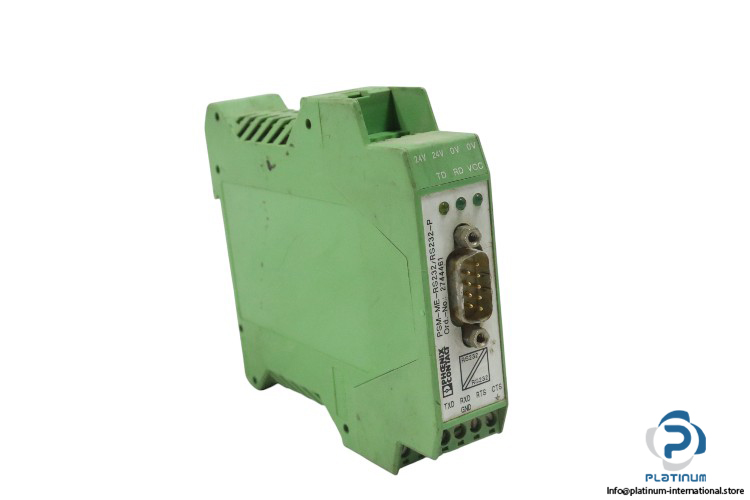

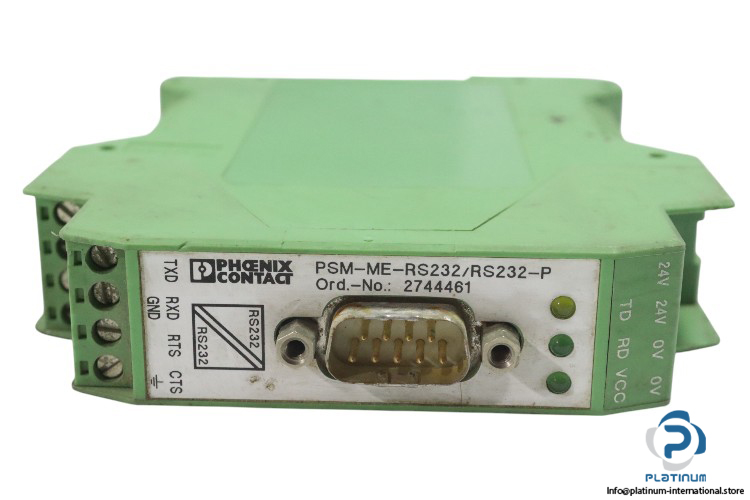

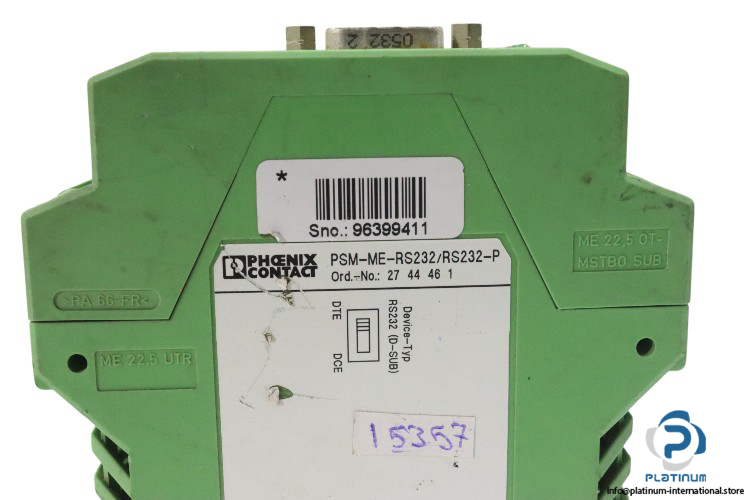

PHOENIX CONTACT PSM-ME-RS232/RS232-P Interface Converter
The PHOENIX CONTACT PSM-ME-RS232/RS232-P is a high-reliability interface converter designed for industrial communication systems. It supports secure and efficient RS-232 signal transmission, offering robust construction and convenient installation features.
Manufacturer: PHOENIX CONTACT
Type: Interface Converter
Model: PSM-ME-RS232/RS232-P
Order No.: 2744461
Technical Data:
- Nominal Supply Voltage: 24 V AC/DC
- Supply Voltage Range: 19.2 V AC/DC to 28.8 V AC/DC
- Max. Current Consumption: 40 mA
- Conductor Cross Section Flexible: 0.2 to 2.50 mm²
- Connection Method: Pluggable Screw Connection
- Degree of Pollution: 2
- Material (Housing): PA
- Degree of Protection: IP20
- Ambient Temperature (Operation): 0 to 55 °C
- Dimensions: 99 x 22.5 x 118.6 mm
