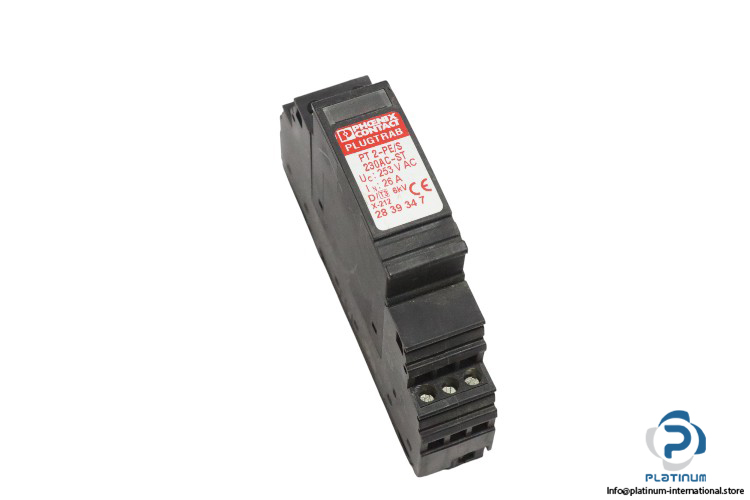

Phoenix Contact PT 2-PE/S 230AC-ST “ Surge Protection Plug

The Phoenix Contact PT 2-PE/S 230AC-ST surge protection plug is a high-performance solution designed to protect electrical systems from surges and spikes. With a durable PA 6.6 housing and a wide operating temperature range, this surge protection plug ensures reliable performance in demanding environments.

• Manufacturer: Phoenix Contact
• Type: Surge Protection Plug

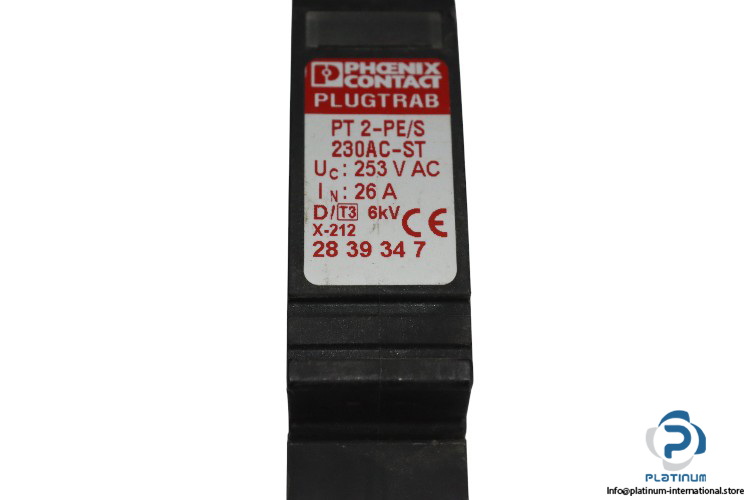

• Model: PT 2-PE/S 230AC-ST
• Order No.: 28 39 34 7
• Ref. No.: 2839347100

Technical Information:

• Maximum Continuous Voltage (UC): 253 V AC
• Rated Load Current (IL): 26 A
• Nominal Discharge Current (In) (8/20 µs): 3 kA
• Residual Voltage at In: Less than 600 V
• Voltage Protection Level (D/T3): 6 kV

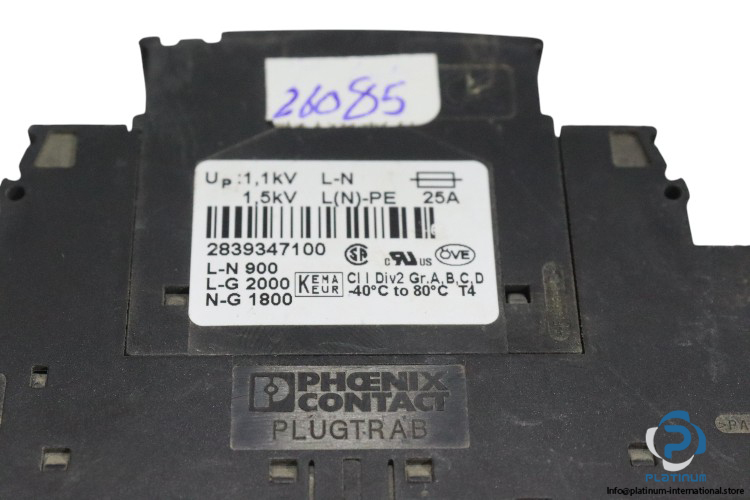

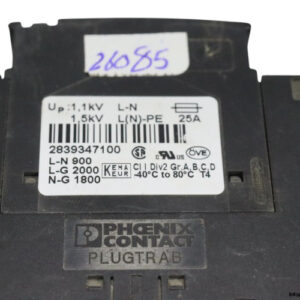

• Voltage Protection Level Up (L-N): ‰¤ 1.1 kV
• Voltage Protection Level Up (L-PE): ‰¤ 1.5 kV
• No. of Positions: 2
• Housing Material: PA 6.6
• Max. Required Back-Up Fuse: 25 A
• Degree of Protection: IP20
• Ambient Temperature (Operation): -40 °C to 80 °C
• Dimensions: 44.8 x 17.5 x 51.7 mm

Accessories:

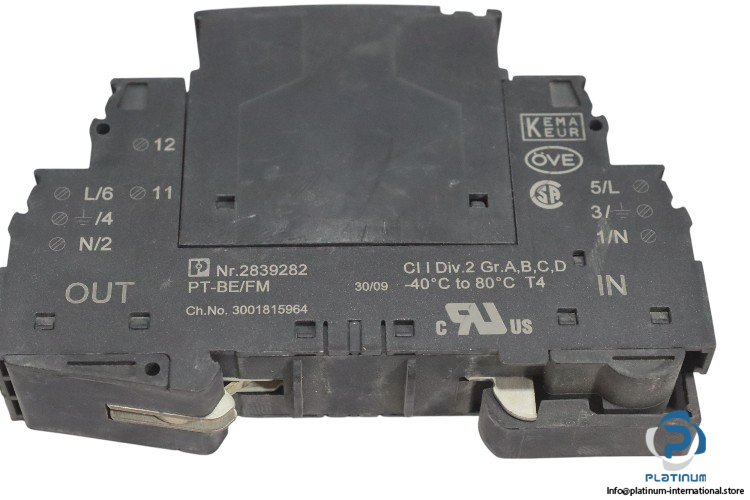

• PHOENIX CONTACT PT-BE/FM SURGE PROTECTION BASE ELEMENT
• Manufacturer: Phoenix Contact
• Type: Surge Protection Base Element
• Model: PT-BE/FM
• Order No.: 2839282
• Ref. No.: 3001815964
• Connection Method: Screw connection
