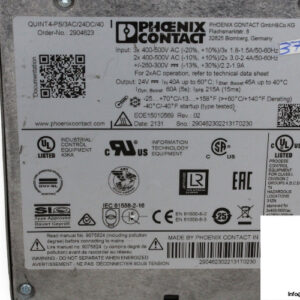

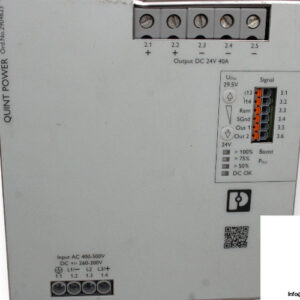

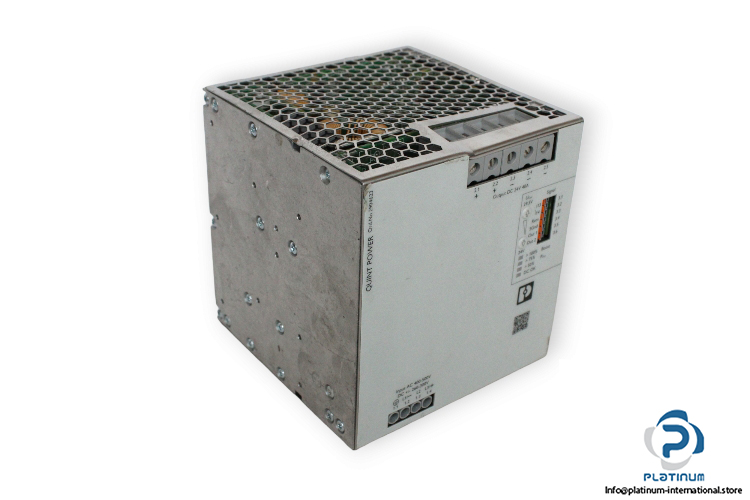

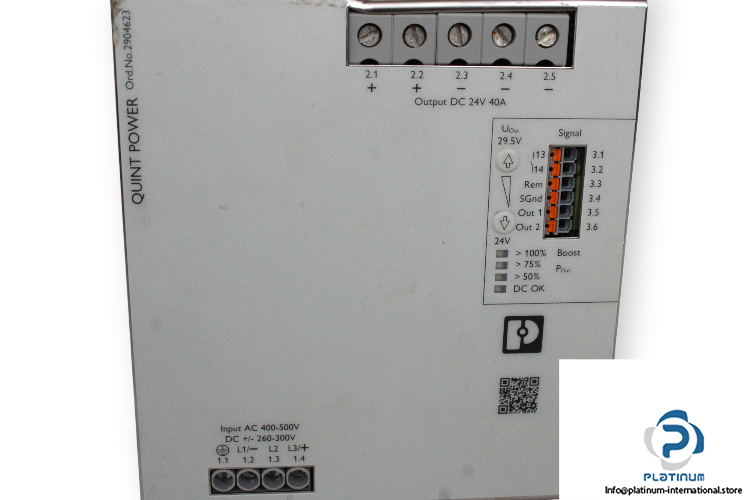

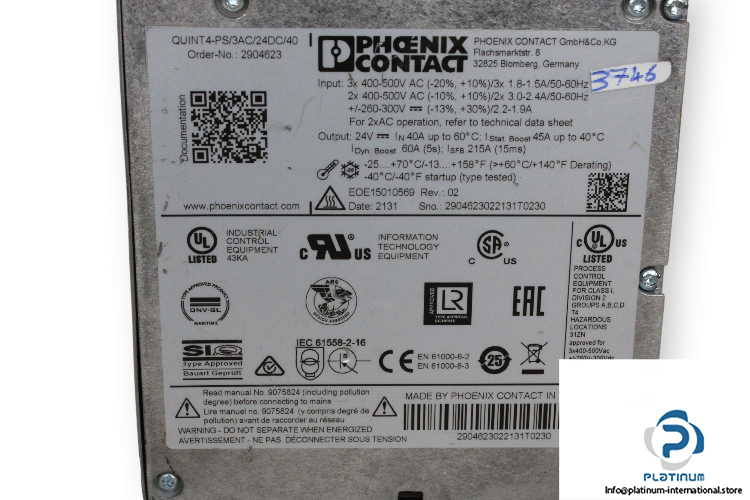

Manufacture: Phoenix Contact
Type: Power supply
Model: QUINT4-PS/3AC/24DC/40
Order Code: 2904623

Input
Voltage: 3-phase/ 400 … 500 V AC (-20 % … +10 %), 2-phase /400  … 500 V AC (-10 % … +10 %),+/- 260 … 300 V DC (-13 % … +30 %)
Current: 3x 1.8 … 1.5 A/2x 3 … 2.4 A/2.2 … 1.9 A
Frequency: 50 … 60 Hz
Output
Voltage: 24 V DC (24 … 29.5 V DC)
Current: 40 A
Power: 960 W
Dynamic Boost (IDyn.Boost): 60 A (5 s)
Selective Fuse Breaking (ISFB): 215 A (15 ms)
Connection method: Screw connection
Mounting type: DIN rail mounting
Housing material: Metal
Ambient temperature (operation): -25 … 70 °C
Degree of protection: IP20
Dimensions: 120 x 130 x 125 mm
