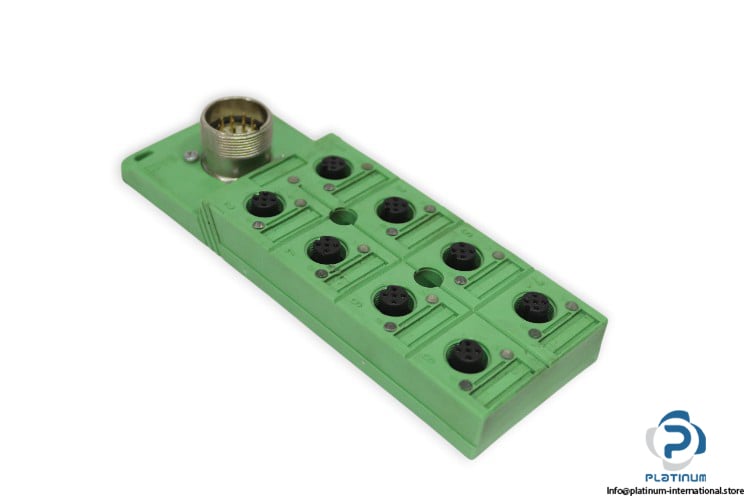

PHOENIX CONTACT SACB-8/8-L-M23 Distributor Box

The Phoenix Contact SACB-8/8-L-M23 is a robust distributor box designed for reliable signal and power distribution in industrial automation systems. Built with a durable PA housing and M12 connection system, it ensures dependable performance and easy integration.

Manufacturer: PHOENIX CONTACT
Type: Distributor Box
Model: SACB-8/8-L-M23
Part No.: 1692446

Technical Information

• Number of Positions: 4
• Number of Slots: 8
• Coding: A
• Max. Operating Voltage Umax: 30 V DC
• Local Diagnostics: Supply Voltage Green LED
• Status Display I/O: Yellow LED
• Nominal Voltage UN: 24 V DC
• Rated Current, Total: 12 A
• Max. Current Carrying Capacity Per Path: 2 A
• Current Carrying Capacity Per Slot: 4 A
• Sensor/Actuator Connection System: M12 Socket
• Tightening Torque Slot Sensor/Actuator Cable: 0.4 Nm
• Width: 54 mm
• Height: 26 mm
• Length: 155 mm
• Material Housing: PA
