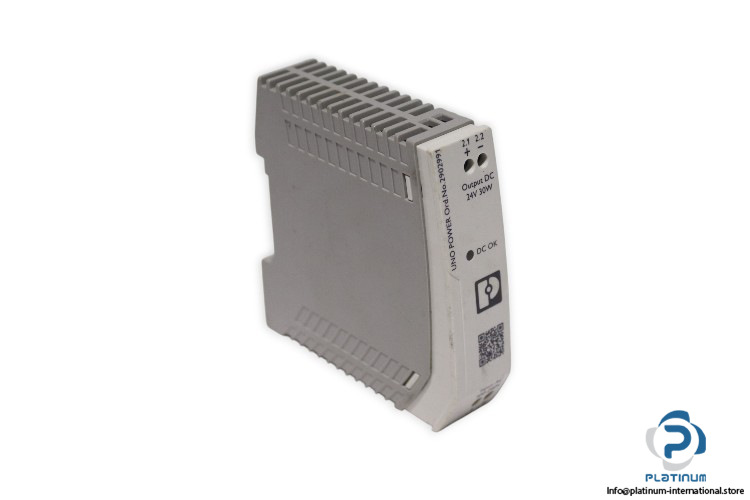

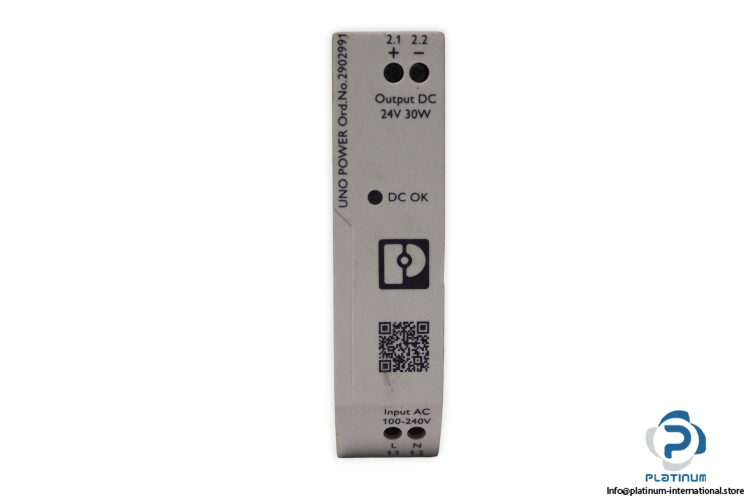

PHOENIX CONTACT UNO-PS/1AC/24DC/30W DIN Rail Power Supply

The PHOENIX CONTACT UNO-PS/1AC/24DC/30W is a compact and efficient DIN rail power supply designed for reliable industrial applications. With high efficiency and robust protection features, it ensures stable 24 V DC output for control systems and automation equipment.

Manufacturer: PHOENIX CONTACT
Type: DIN Rail Power Supply
Model: UNO-PS/1AC/24DC/30W
MRN: 2902991

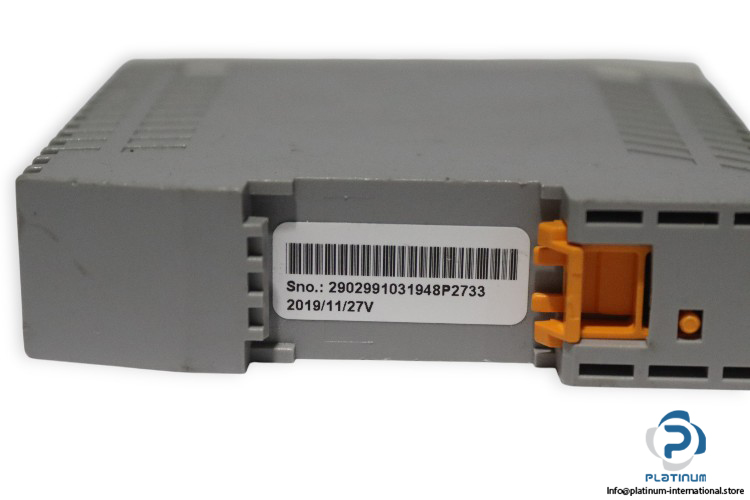

SN: 2902991031948P2733

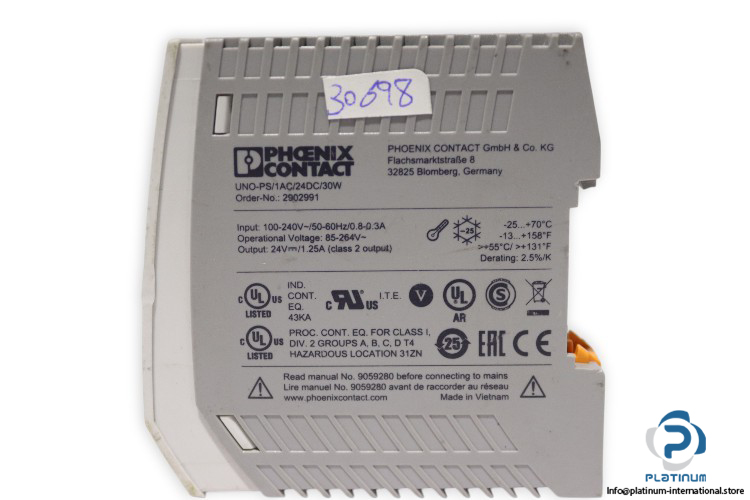

Technical Information

• Input Voltage: 100“240 V AC, 50“60 Hz
• Input Current: 0.8“0.3 A
• Operational Voltage Range: 85“264 V AC
• Output Voltage: 24 V DC
• Output Current: 1.25 A
• Power Output: 30 W (Class 2 output)
• Efficiency: 89% (typical)
• Isolation Voltage: 2.5 kV
• Protection: Short-circuit proof, overload protection
• Operating Temperature: ˆ’25 °C / +70 °C
• Protection Class: IP20 (for cabinet mounting)
• Dimensions: 84 mm × 90 mm × 22.5 mm
