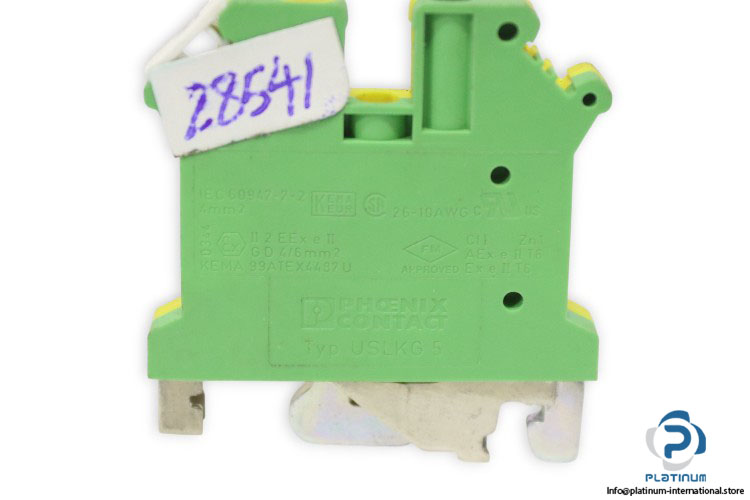

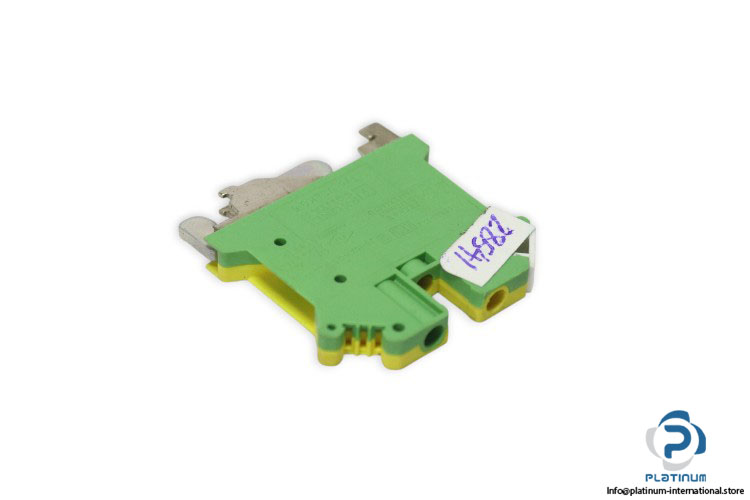

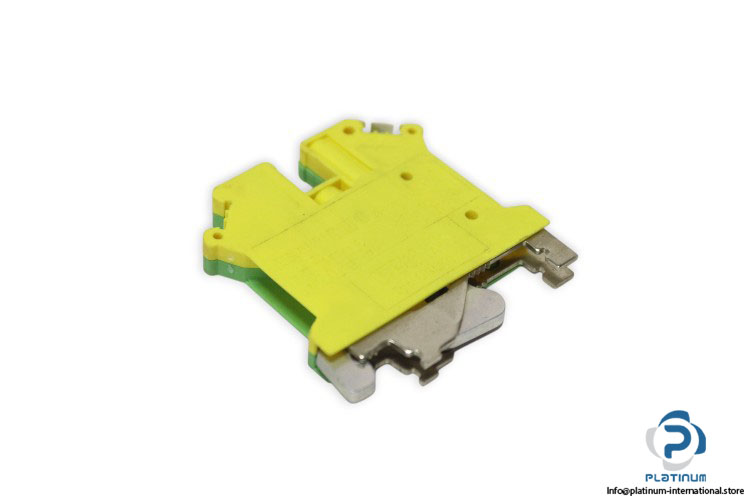

PHOENIX CONTACT USLKG5 PROTECTIVE CONDUCTOR TERMINAL BLOCK

The Phoenix Contact USLKG5 is a reliable protective conductor terminal block designed for secure grounding and safe electrical connections. With robust screw connection technology and compliance with demanding industrial standards, it ensures dependable performance in power distribution and protective earth applications.

Manufacturer: Phoenix Contact
Type: Protective Conductor Terminal Block
Model: USLKG5
Family: USLKG

Technical Information

• Number of Connections: 2
• Number of Rows: 1
• Overvoltage Category: III
• Degree of Pollution: 3
• Rated Surge Voltage: 8 kV
• Maximum Power Dissipation (Nominal): 1.02 W
• Number of Connections per Level: 2
• Nominal Cross Section: 4 mm²
• Connection Method: Screw Connection
• Screw Thread: M3
• Tightening Torque: 0.6 … 0.8 Nm
• Stripping Length: 8 mm
• Dimensions: Width 6.2 mm, Height 42.5 mm
• Depth on NS 32: 52 mm
• Depth on NS 35/7.5: 47 mm
• Mounting Type: NS 32, NS 35/7.5, NS 35/15
• Explosion Proof: Ex
