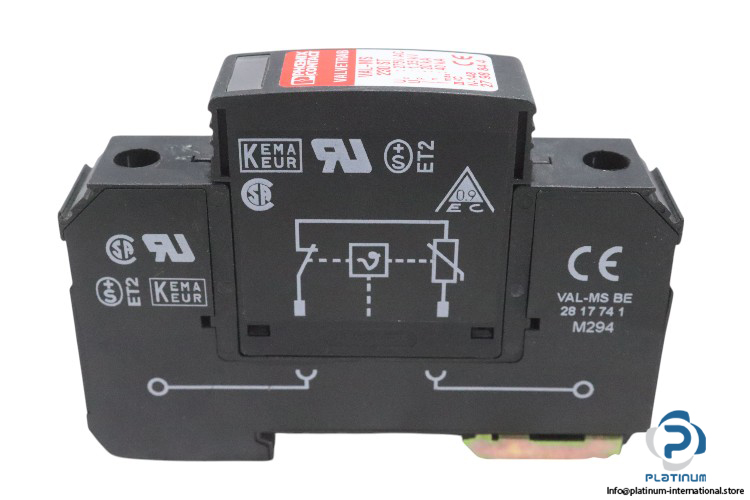

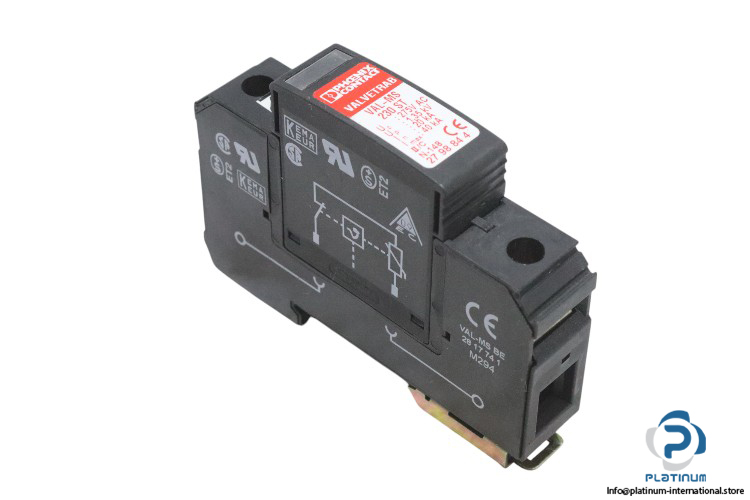

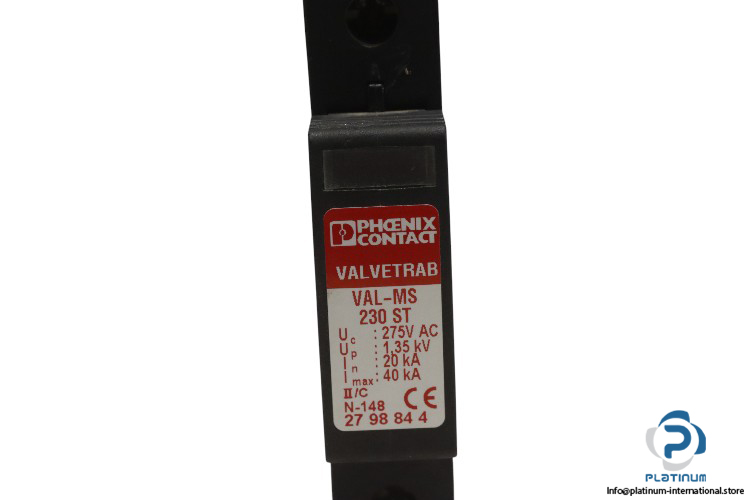

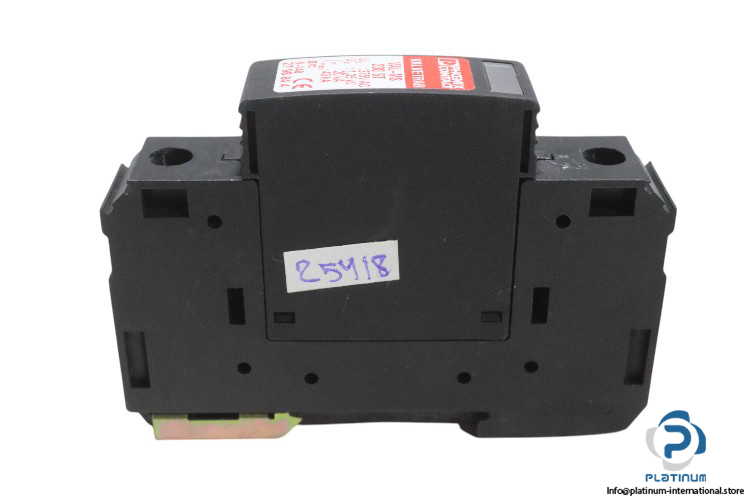

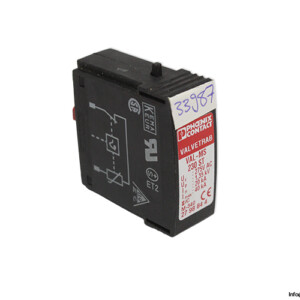

Phoenix Contact VAL-MS 230 ST Two Surge Protection Plug

The Phoenix Contact VAL-MS 230 ST surge protection plug is designed to provide effective protection for electrical systems from surges and transients. With a nominal discharge current of 20 kA and a maximum discharge current of 40 kA, this surge protector ensures reliable operation in industrial and commercial applications.

Manufacturer: PHOENIX CONTACT

Type: Two Surge Protection Plug

Family: VALVETRAB MS

Model: VAL-MS 230 ST

Part No.: 27 98 84 4

Technical Data:

• Number of Positions: 1
• Nominal Frequency (fN): 50 Hz (60 Hz)
• Nominal Voltage: 240/415 V AC (TN), 240/415 V AC (TT)
• Nominal Discharge Current (In): 20 kA
• Maximum Discharge Current: 40 kA
• Short-Circuit Current: 25 kA
• Residual Current: 0.45 mA
• Mounting Type: On base element
• Width: 17.5 mm
• Height: 52.4 mm
• Depth: 55.3 mm
