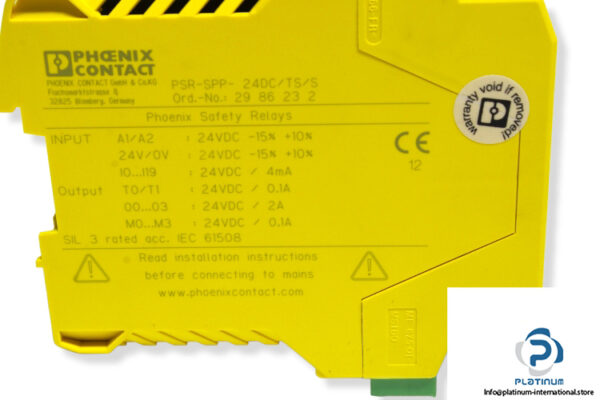

PHOENIX CONTACT PSR-SPP-24DC/TS/S “ Safety Module
The PHOENIX CONTACT PSR-SPP-24DC/TS/S safety module offers comprehensive safety functionality for emergency stop, light grid, safety door, and two-hand control applications. With flexible input and output options, it provides reliable and efficient safety solutions for industrial systems.
- Manufacturer: PHOENIX CONTACT
- Type: Safety Module
- Model: PSR-SPP-24DC/TS/S
- Order No.: 29 86 23 2
Technical Information:
- Application: Emergency stop, Light grid, Safety door, Two-hand control
- Rated Supply Voltage: 18 / 30 V DC (24 V DC)
- Rated Supply Current: 110 mA
- Limiting Continuous Current: max. 6 A
- Maximum Power: 6372 mW
- Interfaces: DIN rail TBUS for extension modules and bus couplers
- INPUT: Digital, type HTL
- Number of Inputs: 10 (Two-Channel), 20 (Single channel)
- OUTPUT: 2 (Ground Switching Outputs), 4 (Safe Semiconductor Outputs)
- Output Voltage: < 5 V DC
- Nominal Output Voltage Range: 18 / 30 V DC (24 V DC)
- Signal Outputs: 4
- Voltage: 24 V DC
- Clock Outputs: 2
- Voltage: 24 V DC
- Conductor Connection: Push-in connection
- Material: Polyamide PA non-reinforced
- Protection Class: IP20
- Ambient Temperature: -20 / 55 °C
- Dimensions: 67.5 x 112 x 114.5 mm
