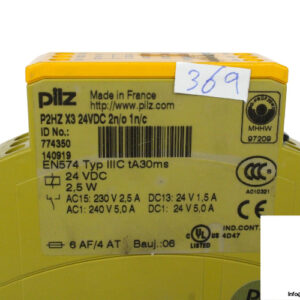

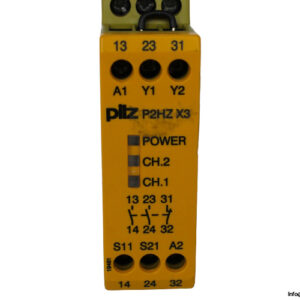

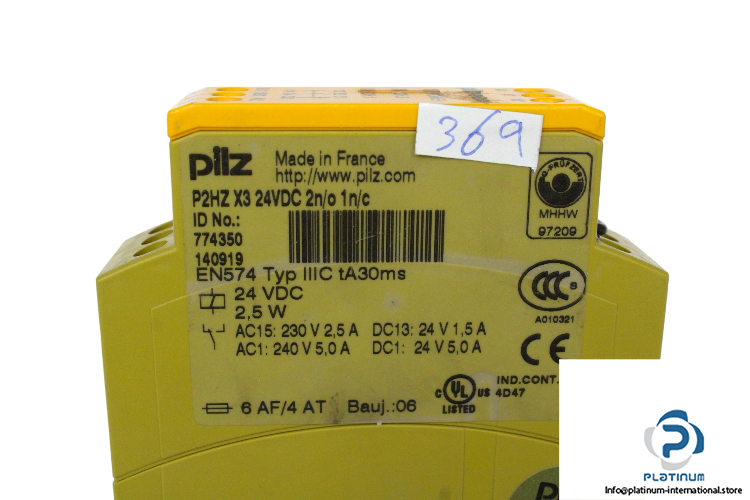

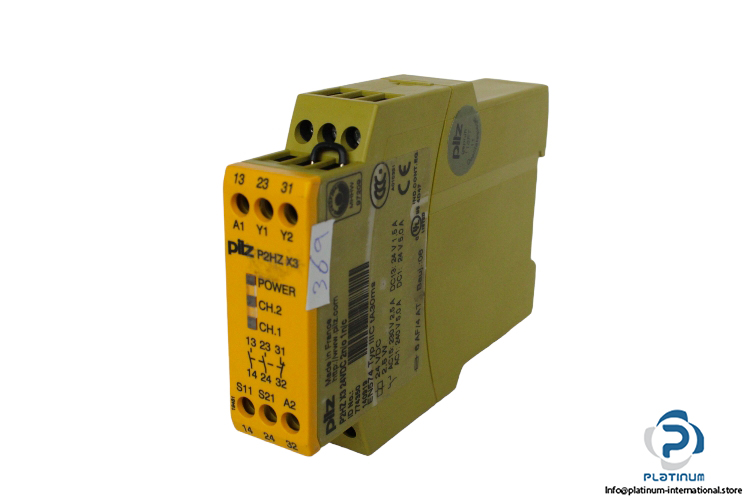

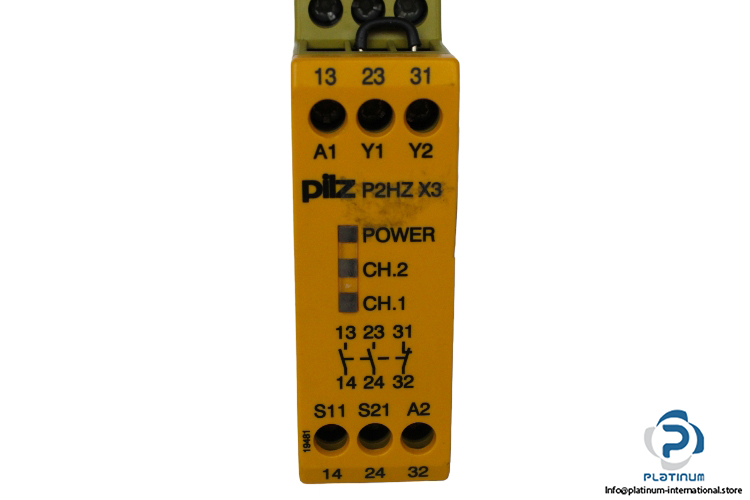

Manufacturer: PILZ
Type: Safety Relay
Model: P2HZ X3 24VDC 2N/O 1N/C
Part No.: 774350
MNR: 140919

Supply Voltage: 24 V DC
No. of Input Channels: 2
No. of Output Contacts:3, 2 Normally open,1 Normally closed
Contacts Ratings:
AC15 safety cont.: 230 V, 2,5 A
AC1 safety cont.: 240 V, 5,0 A
DC1 safety cont.: 24 V , 5,0 A
DC13 safety cont.: 24 V ,1,5 A
Temperature Range: -10 … 55°C
