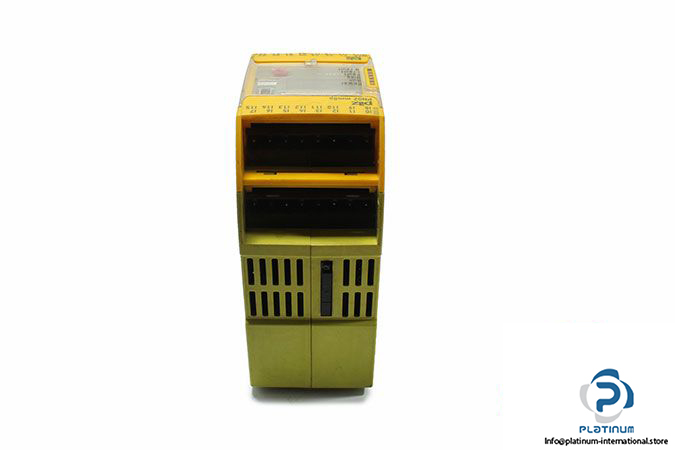

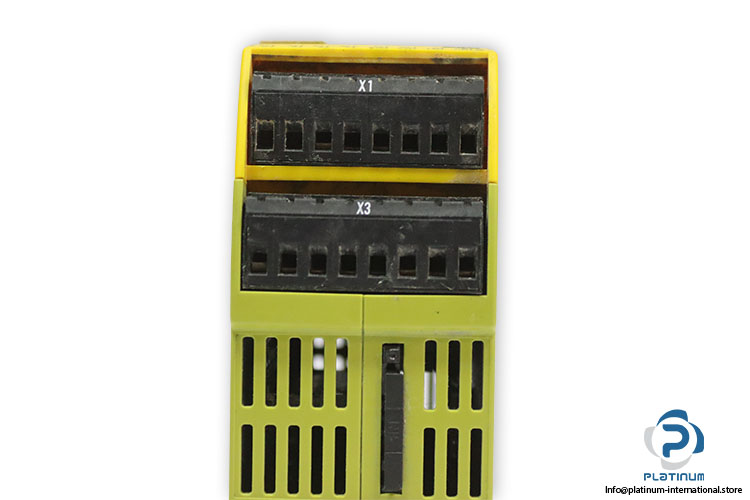

PILZ PNOZ MM0P Safety Relay
A high-performance modular safety relay designed for precise monitoring and safe control of industrial automation systems. The PNOZ MM0P provides reliable protection, flexible configuration, and compatibility with advanced safety architectures, making it essential for modern machine safety applications. Manufacturer: PILZ
Type: Safety Relay
Model: PNOZ MM0P
Ident No.: 772000
Technical Information
- Supply Voltage to System “ Voltage: 24 VDC
- Supply Voltage to System “ External Power Supply Output: 35 W
- Supply Voltage to System “ External Power Supply at No Load: 8.0 W
- Supply Voltage to SC Outputs “ Voltage: 24 VDC
- Supply Voltage to SC Outputs “ External Power Supply Output: 192 W
- Input Number: 12
- Input Current at Rated Voltage: 5 mA
- Minimum Pulse Duration: 16 ms
- Maximum Input Delay: 4 ms
- Output Number: 4
- Output Voltage: 24 VDC
- Output Current: 2 A
- Output Power: 48 W
- Switch-on Delay: 5 s
- Ambient Temperature: 0 / 60 °C
- Protection Class (Mounting Area / Housing / Terminals): IP54 / IP20
- Dimensions: 45 x 120 x 100 mm
