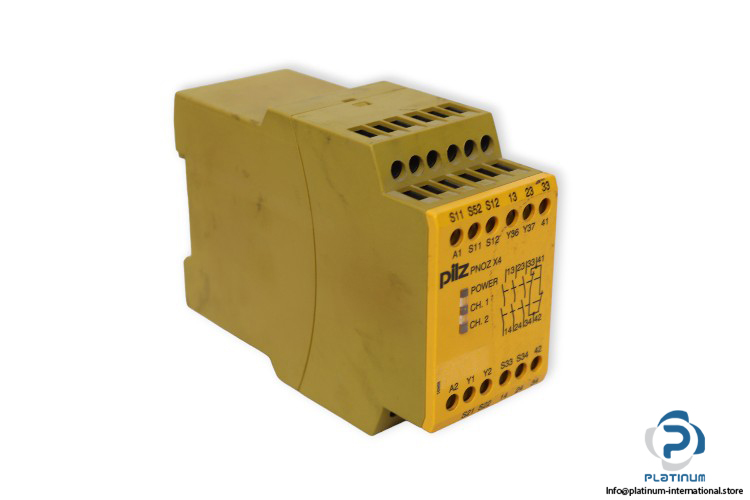

Manufacturer: Pilz
Type: Safety relay

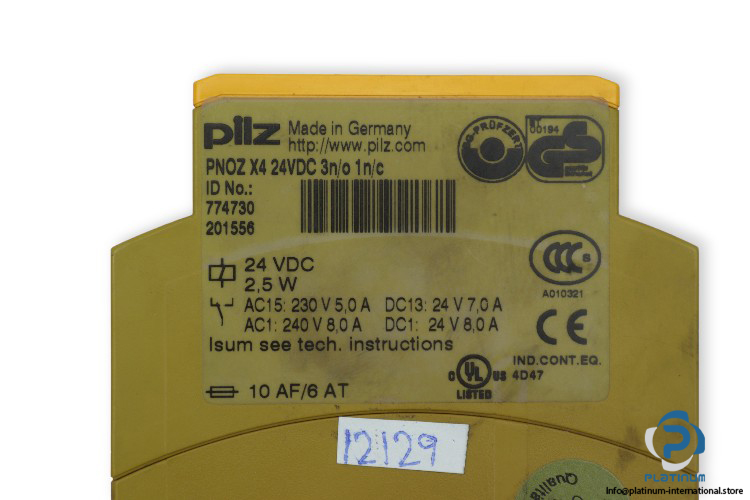

Model: PNOZX424VDC3N/O1N/C
ID No.: 774730 201556

Supply Voltage: 24 V DC
Power Consumption: 2.5 W
Current pulse: 1,7 A
Rated insulation voltage: 250 V
Rated impulse withstand Voltage: 4 kV
Number of inputs: 2
Current at:
Input circuit DC: 40 mA
Start circuit DC: 70 mA
Feedback loop DC: 70 mA
Connection type: Screw terminal
Mounting type: Fixed

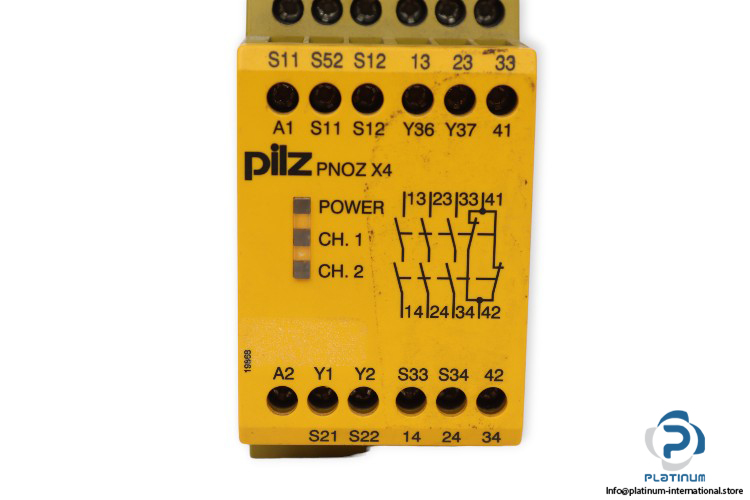

No. of Safety contacts: 3 NO, 1 NC
Contact Rating: 230 V AC,5 A/ 240 V AC,8 A/ 24 V DC, 7/8 A
Contact material: AgSnO2 + 0,2 µm Au
Fuse: 10 AF/6 AT
Protection type: Mounting IP54, Housing IP40, Terminals IP20
Operating Temperature: -10 … 55 °C
Dimensions: 121 X 87 X 45 mm
