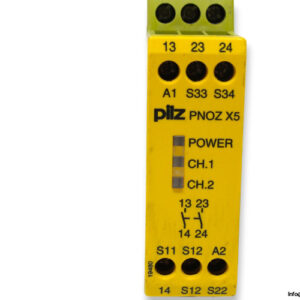

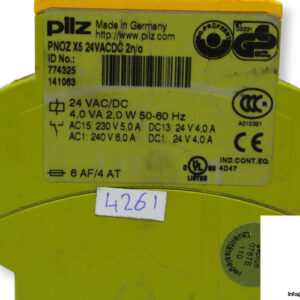

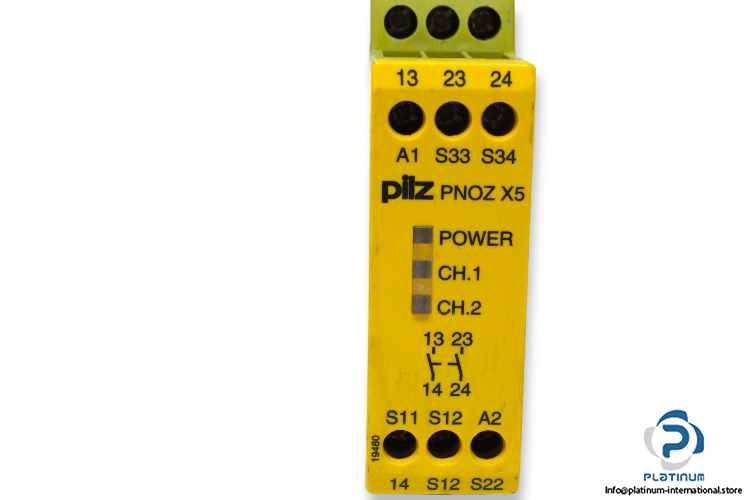

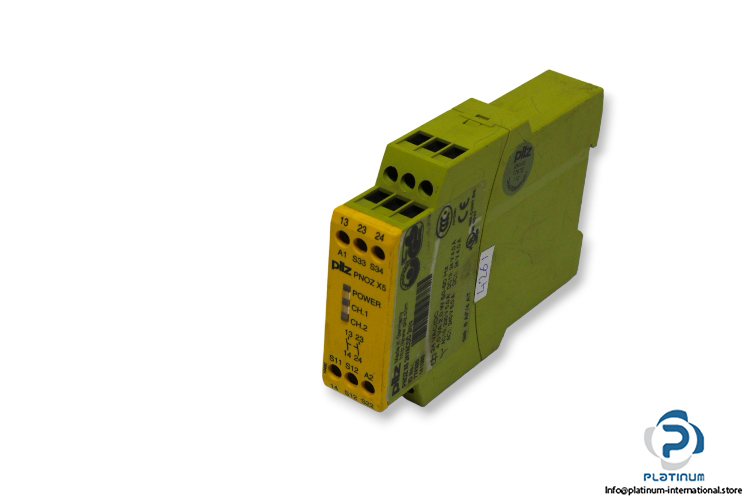

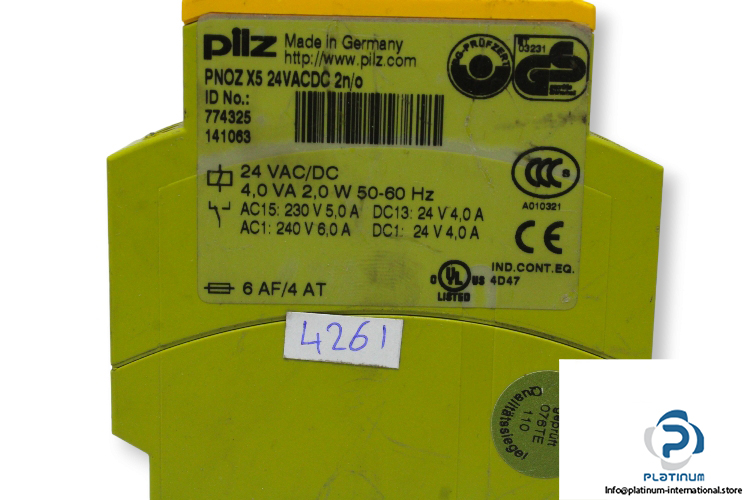

Manufacturer: Pilz

Type: E-Stop Relay

Model: PNOZ X5 24VACDC 2N/O

Part No: 774325 / 141063

Supply voltage UB: 24 V AC/DC

Frequency: 50/60 Hz

Power consumption at UB AC: 4 VA

Power consumption at UB DC: 2 W

Number of output contacts Safety contacts (S) instantaneous: 2 Normally open contacts

Switch-on delay: with automatic reset typ. 115 ms, with automatic reset after power on typ. 120 ms, with manual reset typ. 40 ms

Current:

Operating Temperature: -10 … +55 °C

Degree of protection: Mounting IP54, Housing IP40, Terminals IP20

Dimensions: 87 x 22.5 x 121 mm
