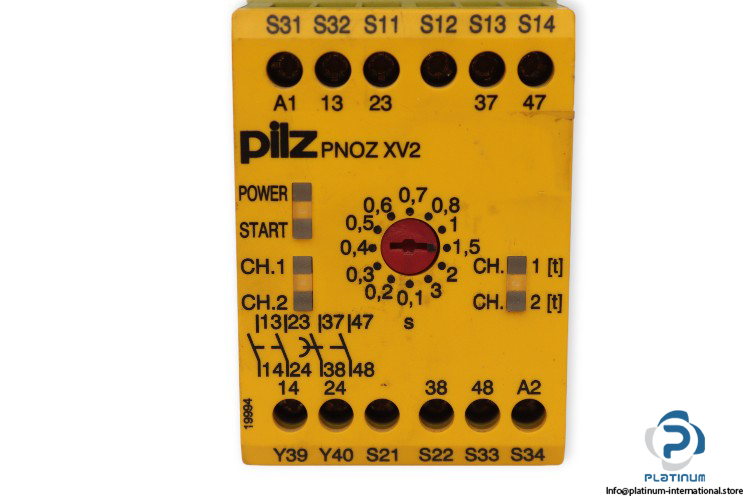

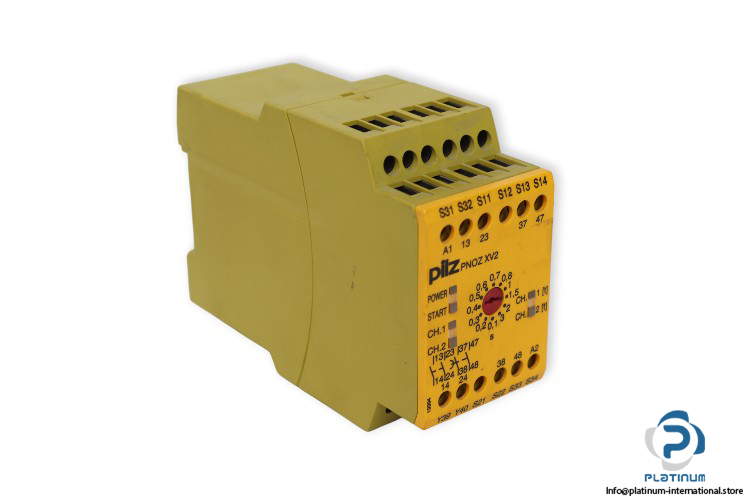

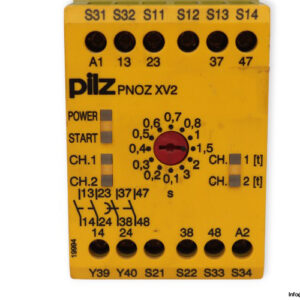

Manufacturer: Pilz
Type: Safety relay
Model: PNOZXV23/24VDC2N/O2N/OT

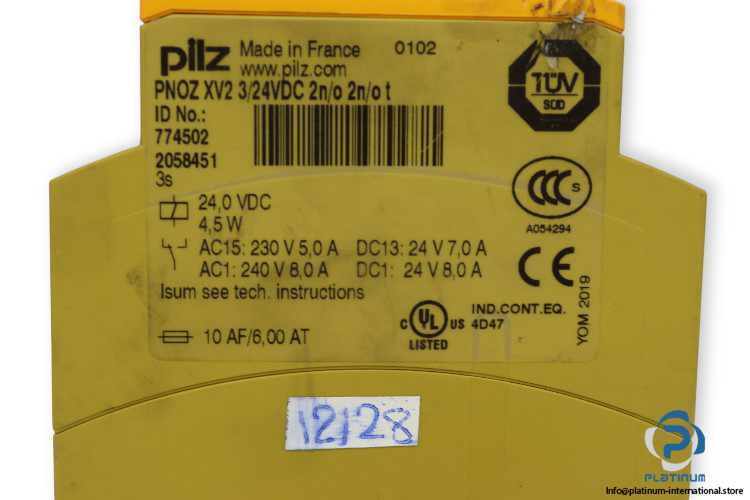

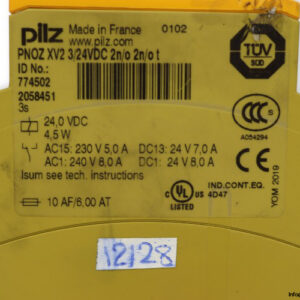

ID No.: 774502 2058451

Application options: Safety gate monitor; Instantaneous E-STOP monitoring; Limit switch; Delayed E-STOP monitoring
Supply Voltage: 24 V DC
Power Consumption: 4.5 W
Number of instantaneous safety contacts: 2
Number of delayed safety contacts: 2
Contact Rating: 230 V AC,5 A/ 240 V AC,8 A/ 24 V DC, 7/8 A
Fuse: 10 AF/6 AT
Terminal style: fixed
Terminal type: Screw terminal
Standards: EN 60204-1;EN 62061;EN ISO 13849-1;VDE 0113-1
Max. current at DC13 I (6 cycles/min): 7.0 A
Max. current at AC15: 5.0 A
Time: 3s
Operating Temperature: -10 … 55 °C
Dimensions: 45 X 87 X 121 mm
