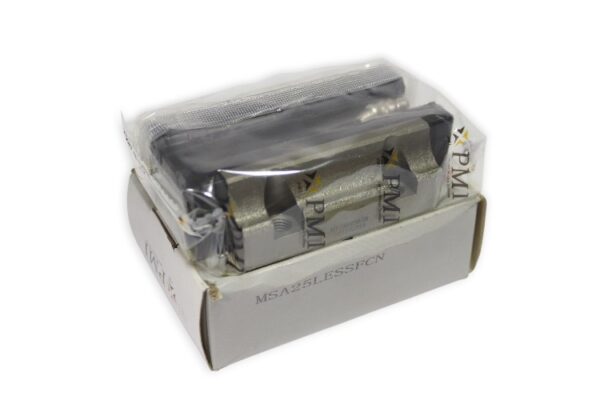

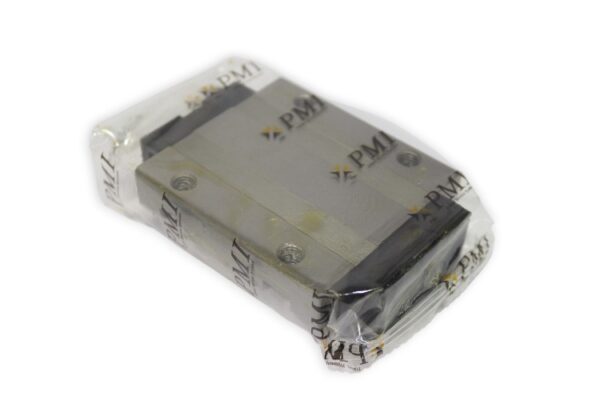

PMI MSA25LESSFCN LINEAR GUIDEWAY CARRIAGE
The PMI MSA25LESSFCN is a high-precision linear guideway carriage designed for smooth motion, high rigidity, and reliable load capacity. Featuring light preload (FC) and dust protection (SS), it is ideal for demanding industrial applications requiring consistent accuracy and durability.
Manufacturer: PMI
Type: Linear Guideway Carriage
Model: MSA25LESSFCN
Code: WL-05189907-114

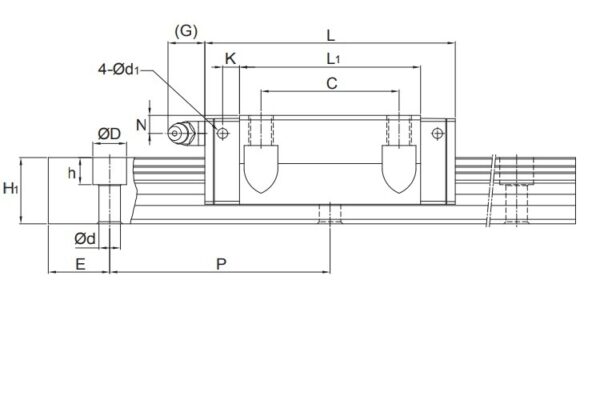

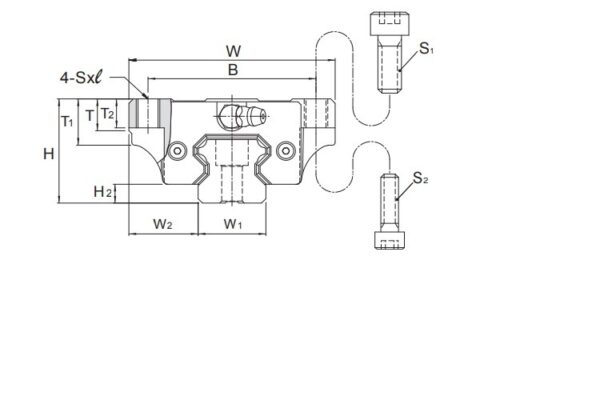

Technical Information
- Size: 25
- Height of System: 36 mm
- Height of Block: 29.5 mm
- Width: 70 mm
- Length: 100.6 mm
- B: 57 mm
- C: 45 mm
- Dynamic Load Rating: 34400 N
- Static Load Rating: 56600 N
- Preload: FC (Light preload)
- Accuracy Grade: N
- Carriage Type: LE (Flange type, mounting either from top or bottom)
- Dust Protection Option: SS
Note: We also provide the corresponding rails (guideways) in a wide range of lengths – please ask us if you need rails to match your bearing
