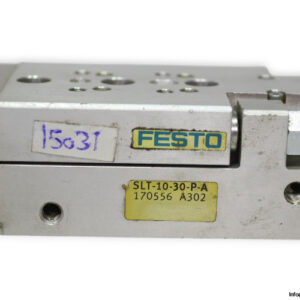

FESTO SLT-10-30-P-A MINI SLIDE

Compact and efficient pneumatic mini slide designed for precise linear motion in automation systems. Built with corrosion-resistant materials and optimized for space-saving mounting, this unit delivers reliable performance in high-cycle industrial operations.

• Manufacturer: Festo
• Type: Mini Slide
• Model: SLT-10-30-P-A
• Part No.: 170556
• Ref. code: A302

Technical Information

• Operating Medium: Compressed air
• Stroke: 30 mm
• Piston Diameter: 10 mm
• Adjustable End-Position Range: 4 mm
• Operating Pressure: 1 / 10 bar
• Mode of Operation: Double-acting
• Ambient Temperature: -20 to 60 °C
• Mounting Type: With through hole
• Material (Seals): HNBR
• Material (Housing): Wrought Aluminum Alloy
• Material (Piston Rod): High Alloy Steel, Non-Corrosive
• Pneumatic Connection: 5 mm
