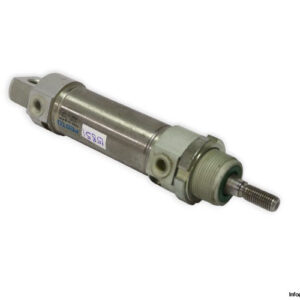

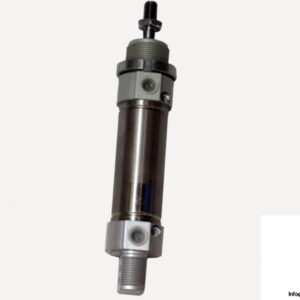

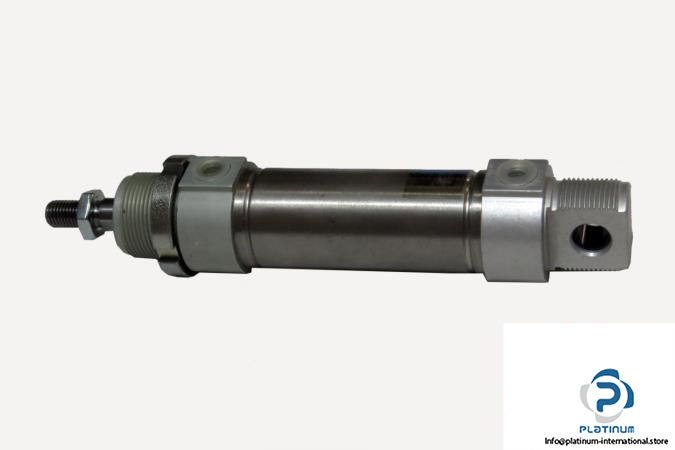

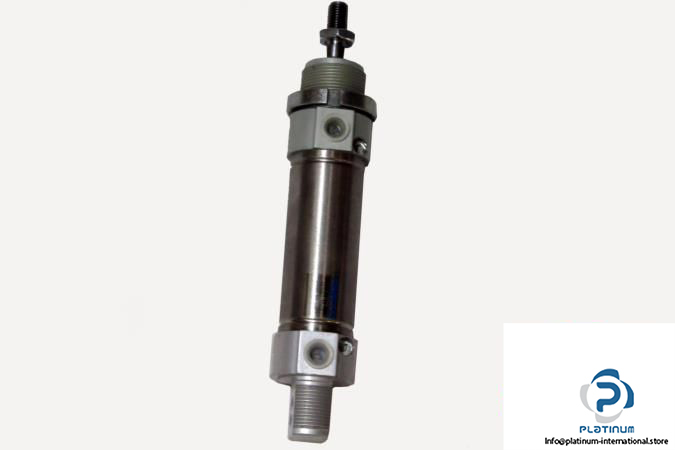

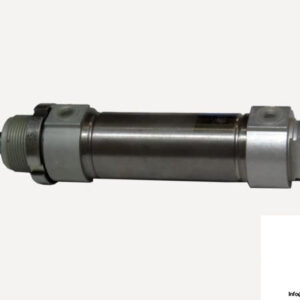

Festo DSNU-32-50-PPV Round Cylinder

The Festo DSNU-32-50-PPV is a high-performance round piston rod cylinder from the DSNU series, designed for reliable motion control in pneumatic systems. Built with premium materials, it ensures durability, precision, and efficiency in industrial automation.

Manufacturer: Festo
Type: Round Cylinder / Piston Rod Cylinder

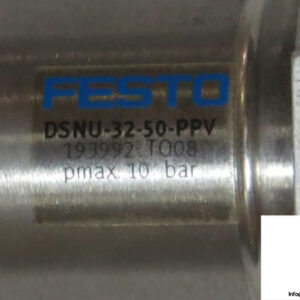

Model: DSNU-32-50-PPV
Part No.: 193992
Ref. Code: TO08
Series: DSNU

Technical Information

• Stroke Length: 50 mm
• Piston Diameter: 32 mm
• Piston Rod Thread: M10x1.25
• Pneumatic Connection: G1/8
• Pneumatic Cushioning: Adjustable at both ends
• Operating Medium: Compressed Air
• Max. Operating Pressure: 10 bar
• Shape: Circular
• Piston Action: Double-acting
• Material Cover: Wrought Aluminum Alloy
• Material Seals: NBR, TPE-U(PU)
• Material Piston Rod: High-alloy Stainless Steel
• Material Cylinder Barrel: High-alloy Stainless Steel
• Ambient Temperature: -20 to 120 °C
