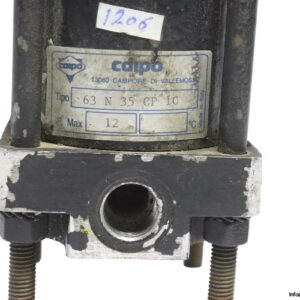

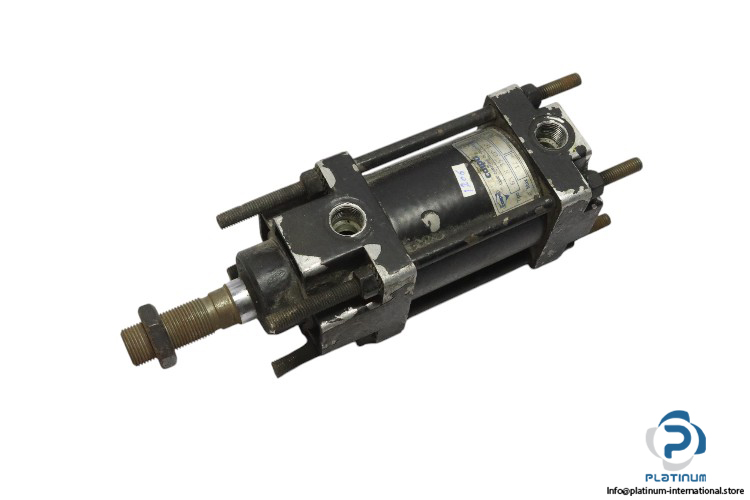

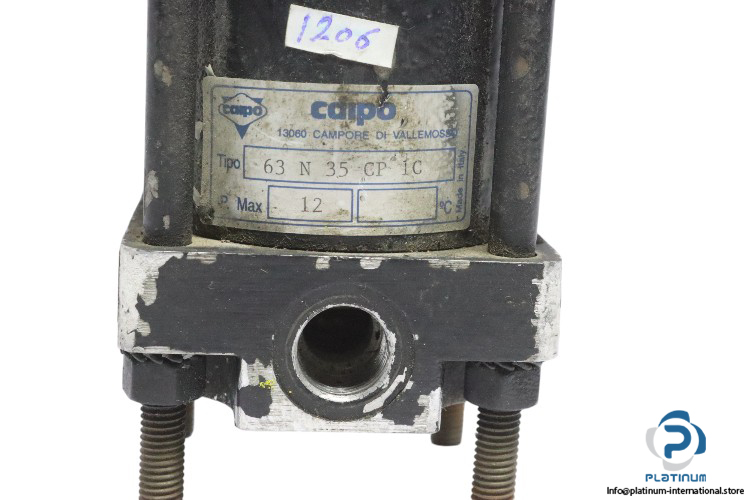

CAIPO ISO Cylinder 63 N 35 CP 1C

The CAIPO ISO Cylinder 63N35CP1C is a high-performance pneumatic cylinder designed for use in various industrial applications. With a bore diameter of 63 mm and stroke of 35 mm, it offers efficient operation and reliable performance under a maximum pressure of 12 bar. This cylinder is ideal for precise motion control in systems requiring compressed air as the medium.

Manufacturer: CAIPO

Model: 63 N 35 CP 1C

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 63 mm
• Stroke: 35 mm
• Bore x Stroke: 63 × 35 mm
• Rod Diameter: 22 mm
• Frame Dimensions: 75 x 185 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 12 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
