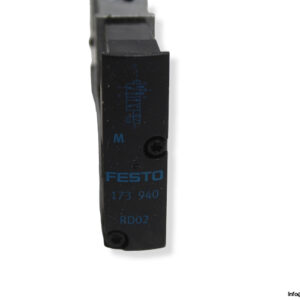

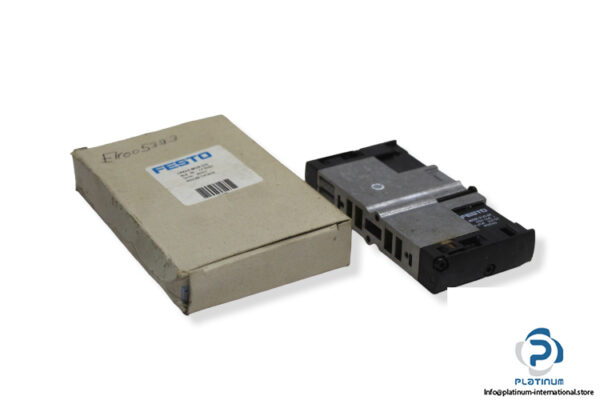

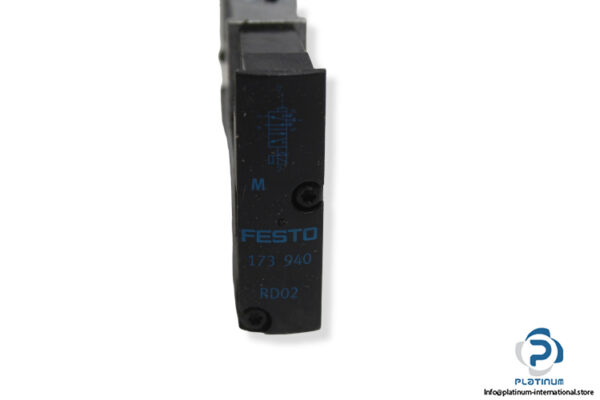

FESTO CPA14-M1H-5LS AIR SOLENOID VALVE WITH MSZC-3-21 DC COIL

The FESTO CPA14M1H5LS is a high-performance 5/2 monostable air solenoid valve engineered for precision pneumatic control. Featuring an electrically actuated piston slide design and robust die-cast aluminum body, it ensures reliable operation in demanding industrial environments. Includes FESTO MSZC-3-21 DC coil for optimal activation performance.

Manufacturer: FESTO
Type: Air Solenoid Valve
Model: CPA14-M1H-5LS
Part No.: 173940

Technical Information

• Fluid: Air
• Design: Piston slide
• Function: 5/2 monostable
• Type of Actuation: Electrically
• Operating Pressure: -0.9 … 10 bar
• Pilot Pressure: 3 … 8 bar
• Nominal Flow Rate: 600 l/min
• Pneumatic Connection: Sub-base
• Material: Die-cast aluminium
• Ambient Temperature: -5 / 50 °C

Attachment: FESTO MSZC-3-21 DC SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZC-3-21 DC
Part No.: 384164

Solenoid Coil Technical Information

• Supply Voltage: 21 V DC
• Power Consumption: 0.65 W
• Protection Class: IP00 / IP65
