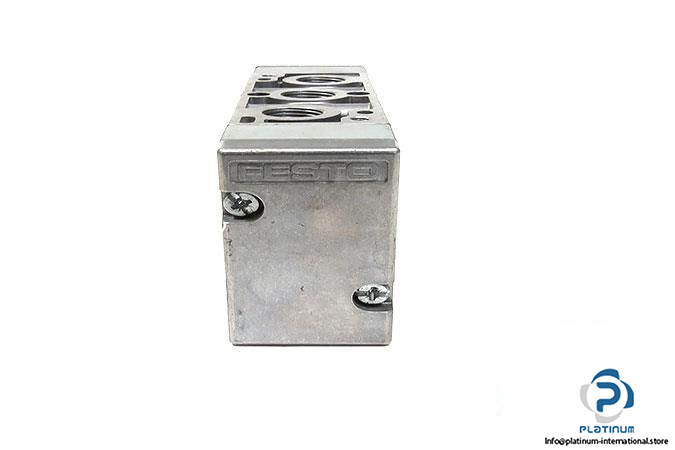

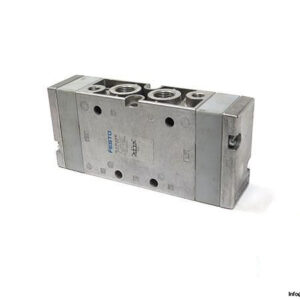

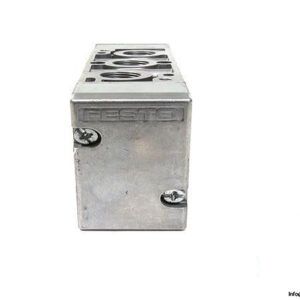

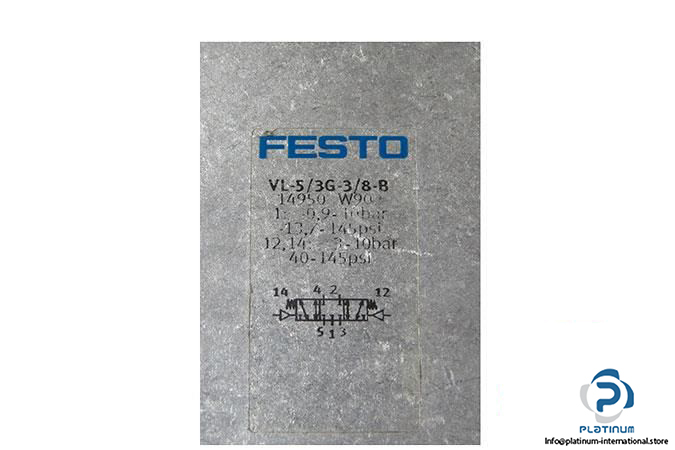

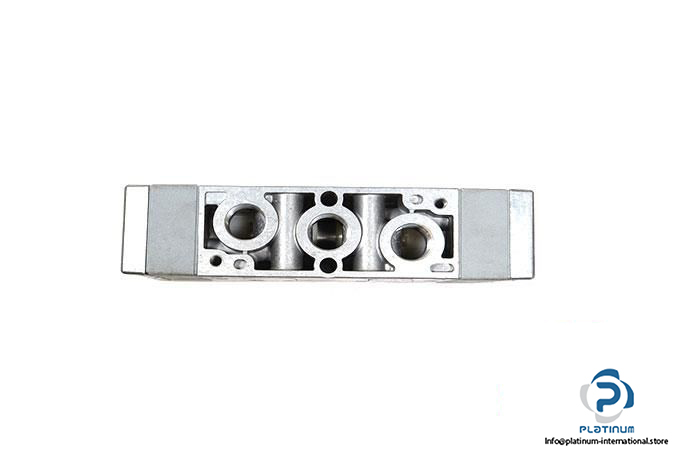

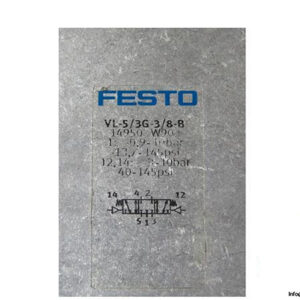

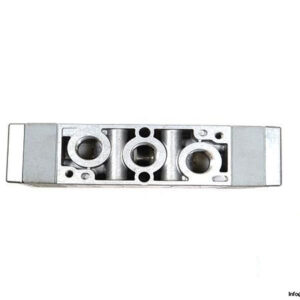

FESTO VL-5/3G-3/8-B PNEUMATIC VALVE

The FESTO VL-5/3G-3/8-B pneumatic valve is a high-performance solution for controlling compressed air in industrial applications. Designed as a piston gate valve with a 5/3 closed function, it provides reliable and precise air flow management under demanding operating conditions.

Manufacturer: FESTO
Type: Pneumatic Valve
Model: VL-5/3G-3/8-B
Part No.: 14950

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Valve Function: 5/3 closed
• Type of Actuation: Pneumatically
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 3 to 10 bar
• Nominal Flow Rate: 2000 l/min
• Pneumatic Connection: G3/8
• Material: Die-cast aluminum
• Ambient Temperature: -10 to 60 °C
