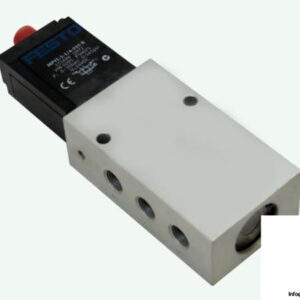

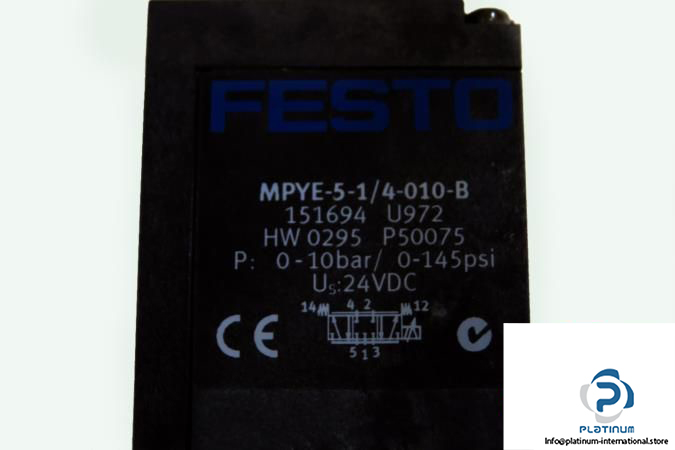

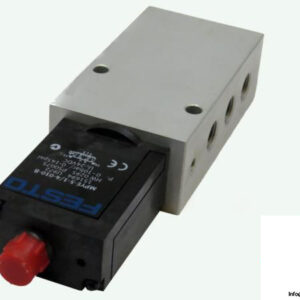

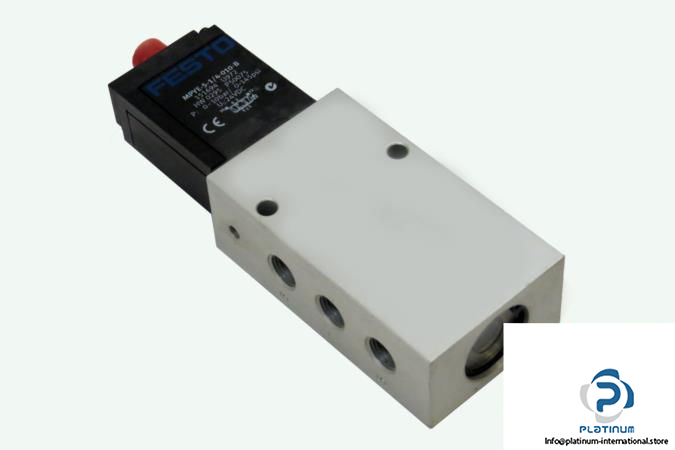

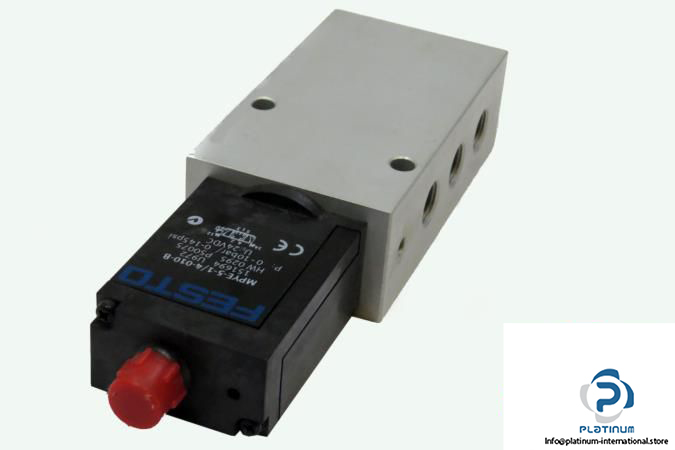

FESTO MPYE-5-1/4-010-B PROPORTIONAL DIRECTIONAL CONTROL VALVE

The FESTO MPYE-5-1/4-010-B is a high-performance proportional directional control valve designed for precise regulation in pneumatic systems. It features a 5/3 closed function and efficient electrical actuation for accurate flow control.

Manufacturer: FESTO
Type: Proportional Directional Control Valve
Model: MPYE-5-1/4-010-B
Part No.: 151694

Technical Information

• Nominal Size: 8 mm
• Valve Function: 5/3 Closed
• Actuation Type: Electrically
• Operating Pressure: 0 … 10 bar / 0 … 145 PSI
• Nominal Flow Rate: 1400 l/min
• Supply Voltage: 24 V DC
• Pneumatic Connection: G1/4
• Media Temperature: 5 … 40 °C
