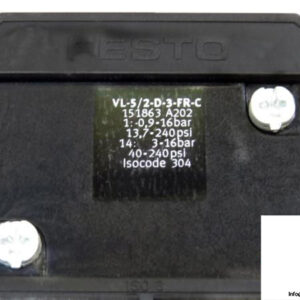

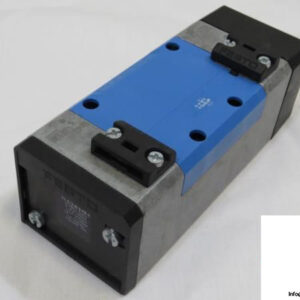

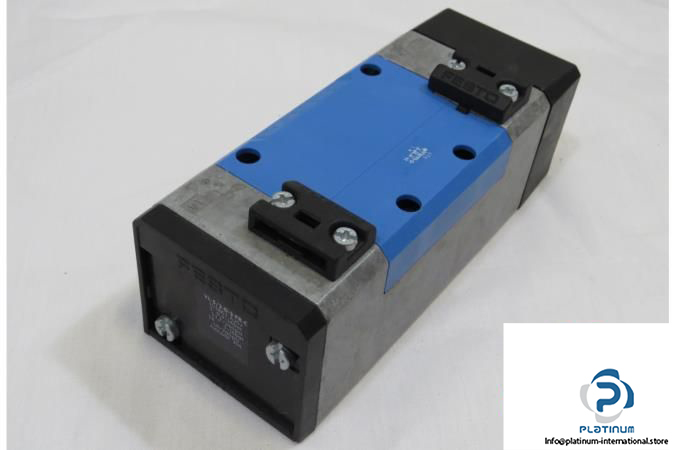

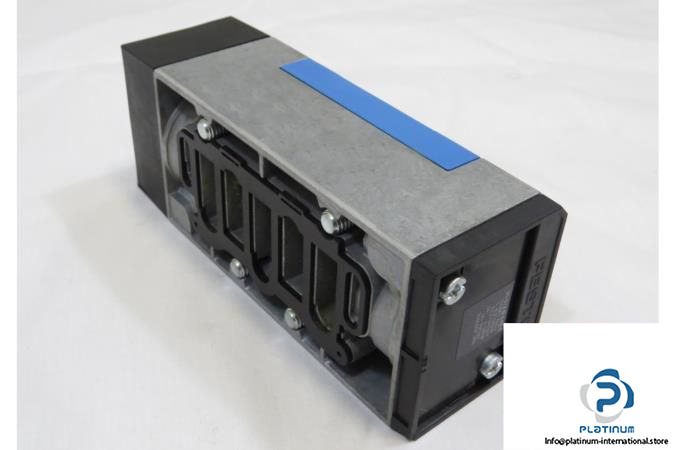

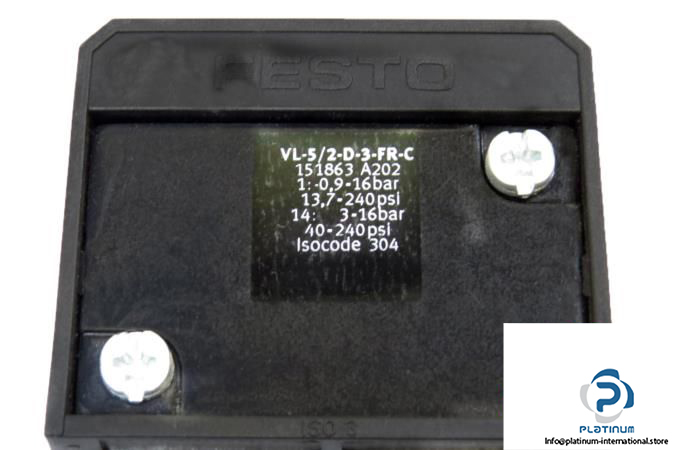

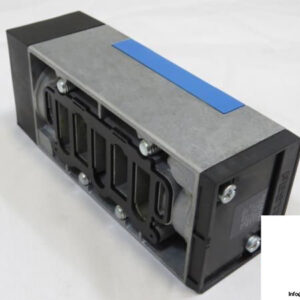

FESTO VL-5/2-D-3-FR-C PNEUMATIC VALVE

The FESTO VL-5/2-D-3-FR-C is a high-performance pneumatic valve engineered for precise and reliable air control in industrial automation systems. Featuring a 5/2-way monostable function, this valve uses pneumatic actuation for fast switching and long-term durability.

Manufacturer: FESTO
Type: Pneumatic Valve
Model: VL-5/2-D-3-FR-C
Part No.: 151863

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/2-way, monostable
• Type of Actuation: Pneumatically
• Operating Pressure: -0.9 to 16 bar
• Nominal Flow Rate: 4500 l/min
• Pneumatic Connection: Sub-base size 3
• Material: Die-cast aluminum
• Ambient Temperature: -10 to 60 °C
