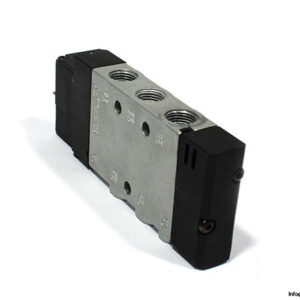

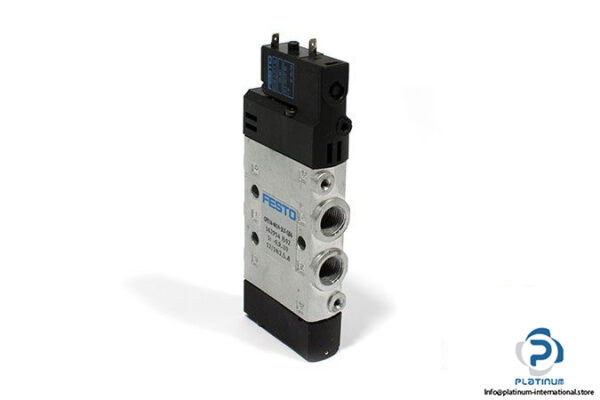

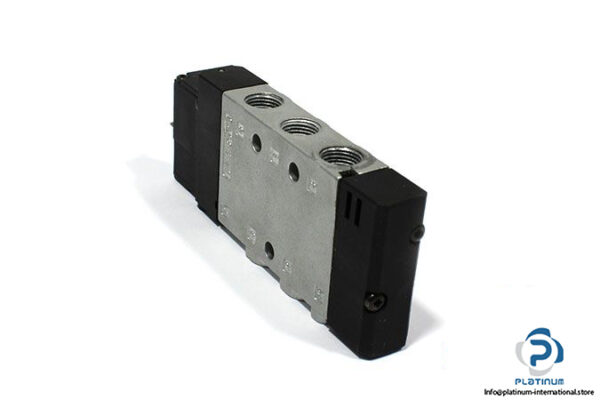

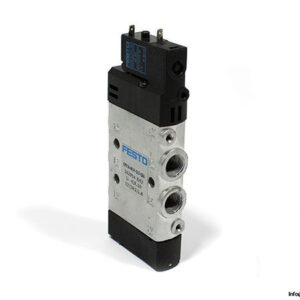

FESTO CPE14-M1H-5LS-QS-6 SINGLE SOLENOID VALVE WITH COIL

The FESTO CPE14-M1H-5LS-QS-6 is a high-performance single solenoid valve designed for precision pneumatic control. Featuring a piston slide design and 5/2-way monostable function, it provides reliable switching with fast response times in various industrial applications. Supplied with FESTO MSZB-3-24V DC solenoid coil for efficient actuation.

Manufacturer: FESTO
Type: Single Solenoid Valve

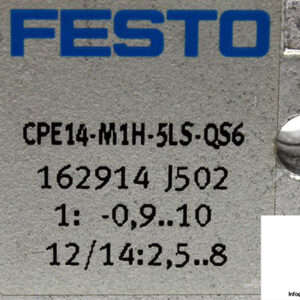

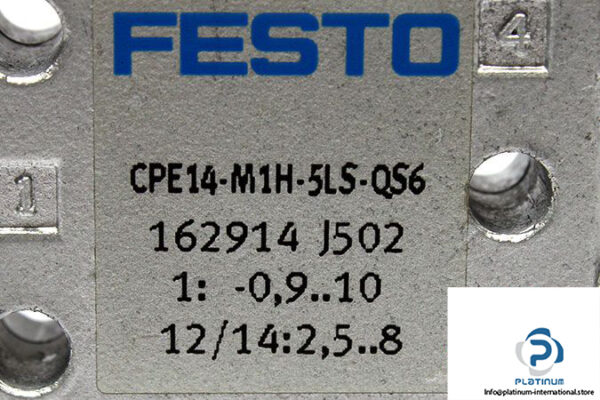

Model: CPE14-M1H-5LS-QS-6
Part No.: 162914

Technical Information

• Fluid: Air
• Design: Piston Slide
• Function: 5/2-way Monostable
• Type of Actuation: Pneumatically
• Operating Pressure: -0.9 to 10 bar
• Pilot Pressure: 3 to 8 bar
• Nominal Flow Rate: 500 l/min
• Pneumatic Connection: QS-6
• Material: Aluminum
• Ambient Temperature: -10 to 50 °C

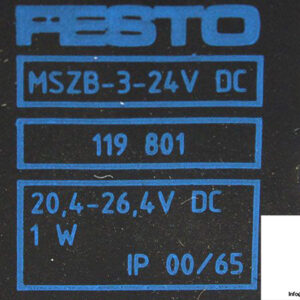

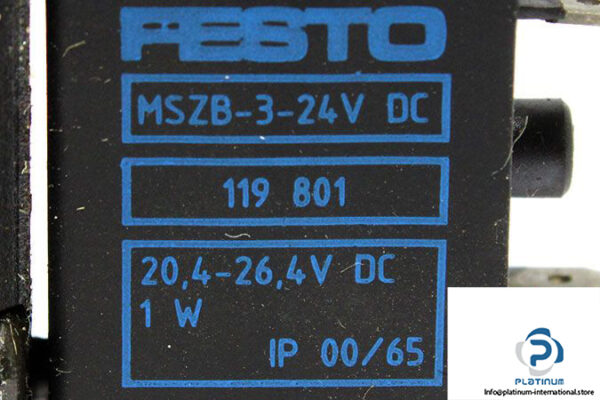

Attachment: FESTO 119801 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSZB-3-24V DC
Part No.: 119801

Coil Technical Information

• Voltage: 20.4 to 26.4 VDC
• Power Consumption: 1 W
• Protection Class: IP00 / IP65
