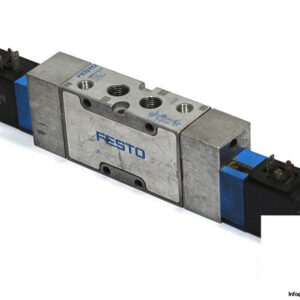

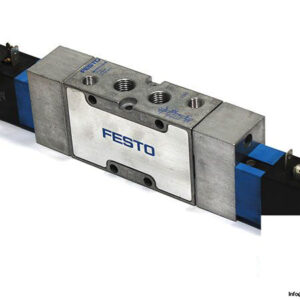

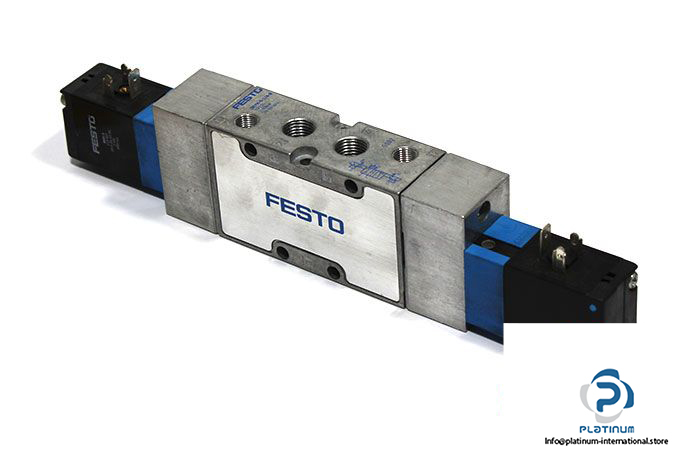

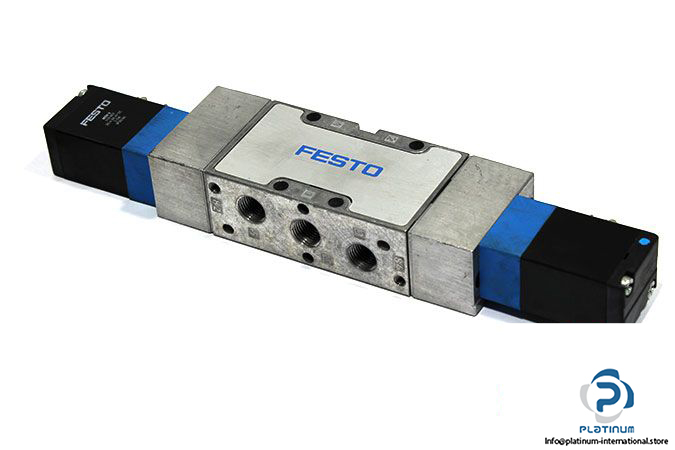

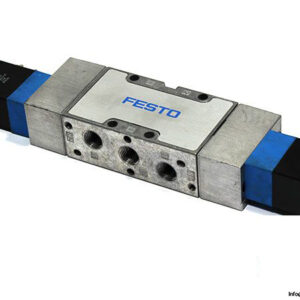

FESTO JMVH-5-1/4-B DOUBLE SOLENOID VALVE WITH MSV-3 COIL

The FESTO JMVH-5-1/4-B is a high-performance 5/2 double solenoid valve designed for precise pneumatic applications. With a piston gate design and durable aluminium housing, it delivers reliable switching and fast airflow response. Supplied with the FESTO MSV-3 solenoid coil for optimal electrical control.

Manufacturer: FESTO
Type: Double Solenoid Valve

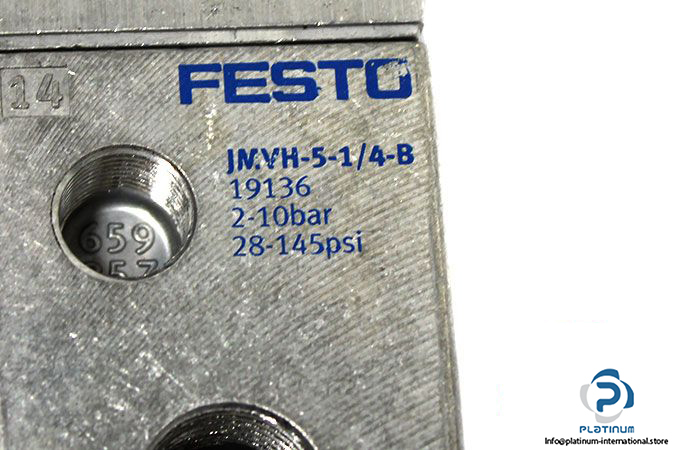

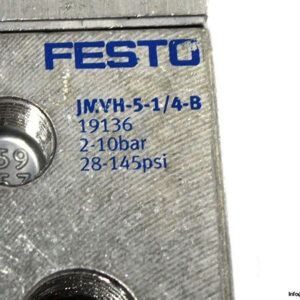

Model: JMVH-5-1/4-B

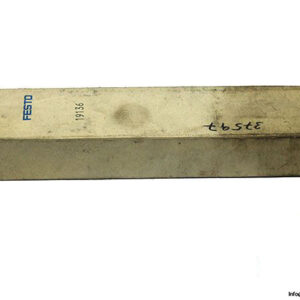

Part No.: 19136

Valve Technical Information

• Fluid: Air
• Design: Piston gate valve

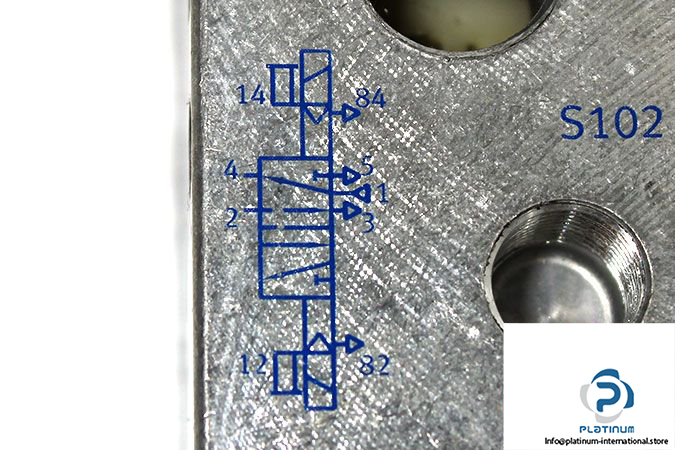

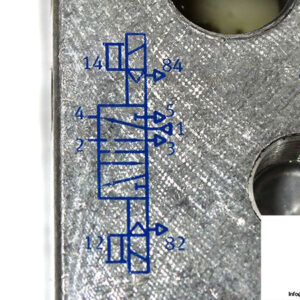

• Function: 5/2 double solenoid
• Type of Actuation: Electrically
• Operating Pressure: 2 … 10 bar
• Nominal Flow Rate: 1600 l/min
• Pneumatic Connection: G1/4
• Material: Die-cast aluminium
• Ambient Temperature: -5 / 50 °C

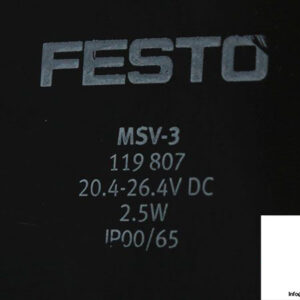

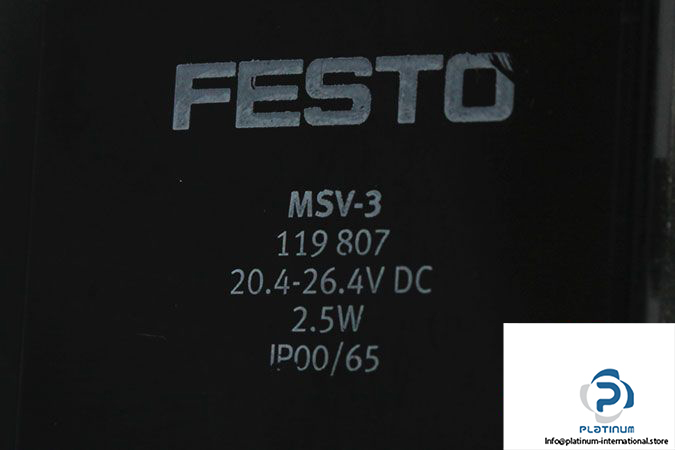

Attachment: FESTO MSV-3 SOLENOID COIL

Manufacturer: FESTO
Type: Solenoid Coil
Model: MSV-3
Part No.: 119807

Coil Technical Information

• Supply Voltage: 20.4 … 26.4 V DC
• Power Consumption: 2.5 W
• Protection Class: IP00 / IP65
