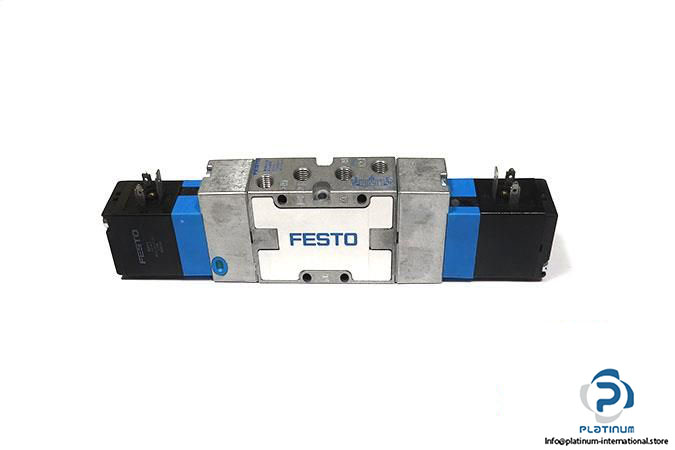

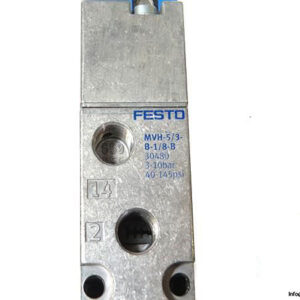

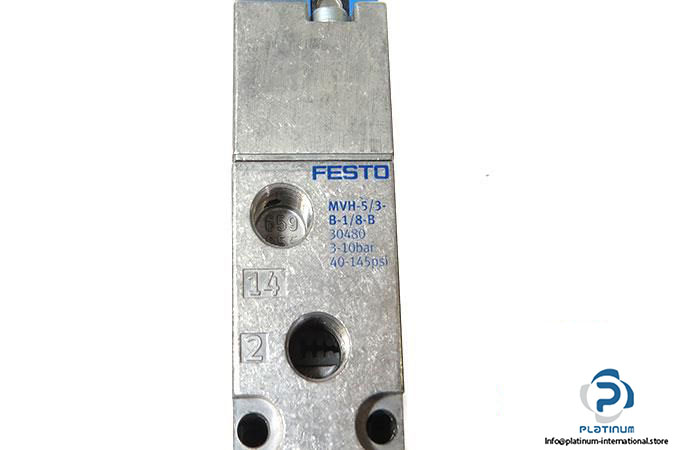

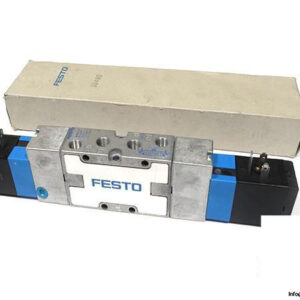

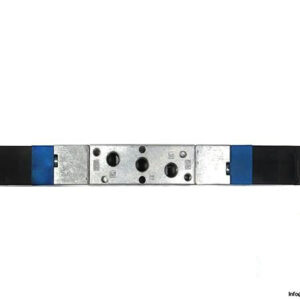

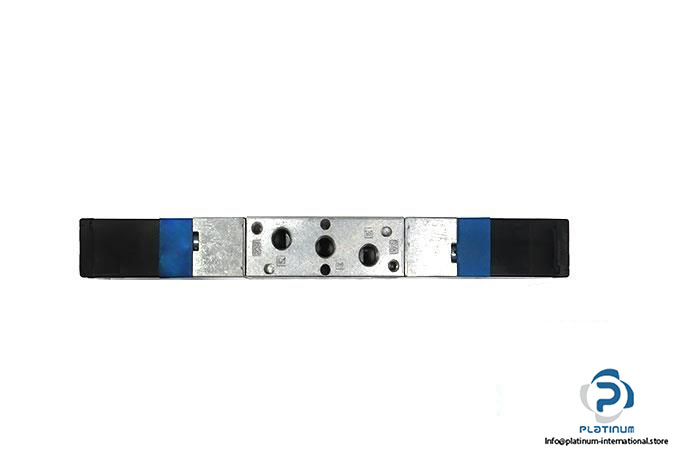

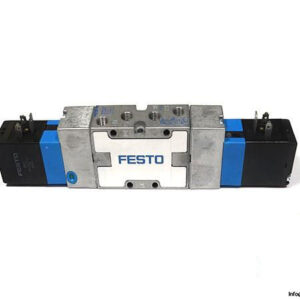

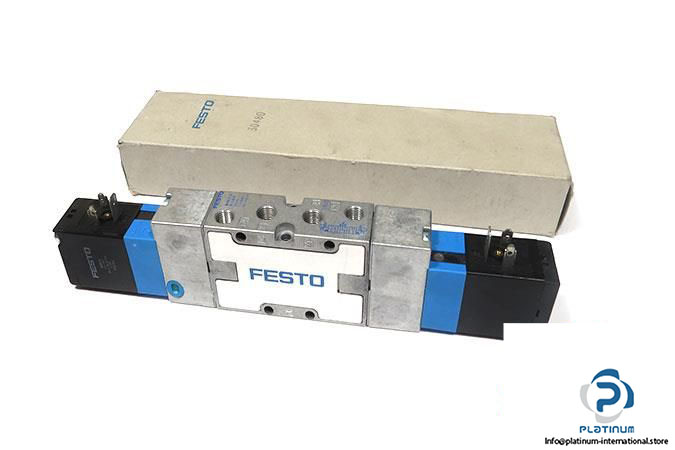

FESTO MVH-5/3B-1/8-B DOUBLE SOLENOID VALVE

The FESTO MVH-5/3B-1/8-B is a high-performance double solenoid valve engineered for efficient air flow control in industrial pneumatic systems. Its pressurized 5/3-way function and reliable piston gate design ensure precision and durability.

Manufacturer: FESTO
Type: Double Solenoid Valve
Model: MVH-5/3B-1/8-B
Part No.: 30480

Technical Information

• Fluid: Air
• Design: Piston Gate Valve
• Function: 5/3-way, Pressurized
• Type of Actuation: Electrically
• Operating Pressure: 3 … 10 bar
• Nominal Flow Rate: 1000 l/min
• Coil Ratings: 24 V DC, 2.5 W
• Pneumatic Connection: G1/8
• Material: Die-cast Aluminium
• Ambient Temperature: -5 / 50 °C
