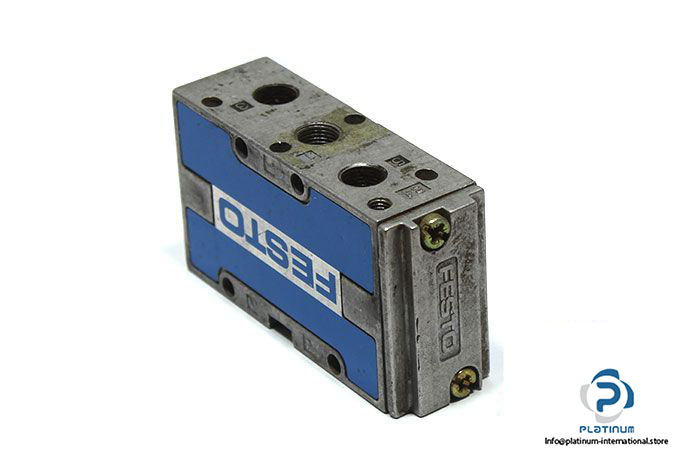

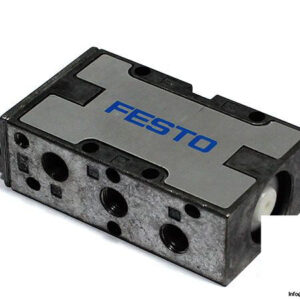

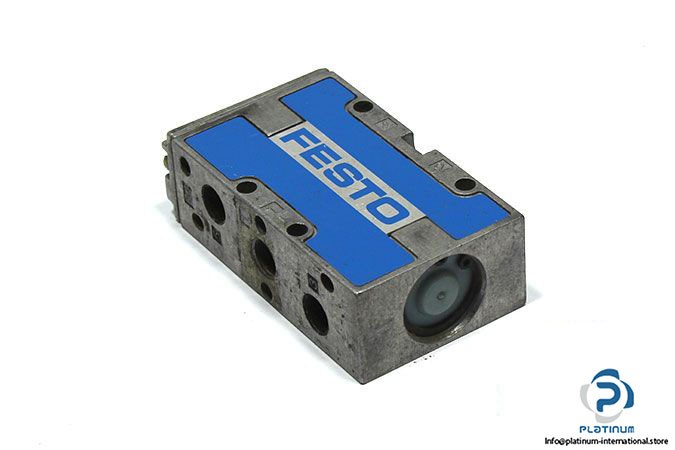

FESTO VL-5-1/8-B PNEUMATIC VALVE

The FESTO VL-5-1/8-B is a high-performance 5/2-way monostable pneumatic valve engineered for reliability and long-lasting control in industrial automation systems. Its poppet seat design and die-cast aluminum body ensure robust operation across a broad temperature and pressure range.

Manufacturer: FESTO
Type: Pneumatic Valve

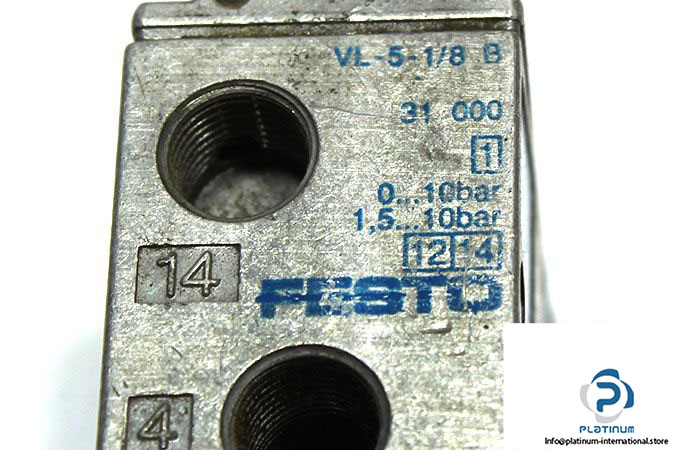

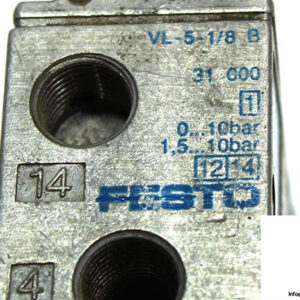

Model: VL-5-1/8-B
Part No.: 31000

Technical Information

• Fluid: Air
• Design: Poppet seat
• Function: 5/2-way, monostable
• Type of Actuation: Pneumatically
• Operating Pressure: 0 … 10 bar
• Pilot Pressure: 1.5 … 8 bar
• Nominal Flow Rate: 750 l/min
• Pneumatic Connection: G1/8
• Material: Die-cast aluminum
• Ambient Temperature: -10 / 60 °C
