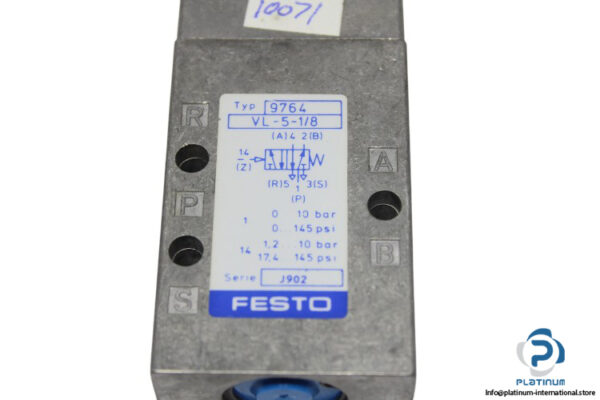

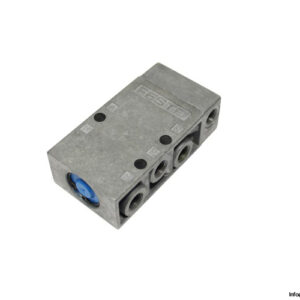

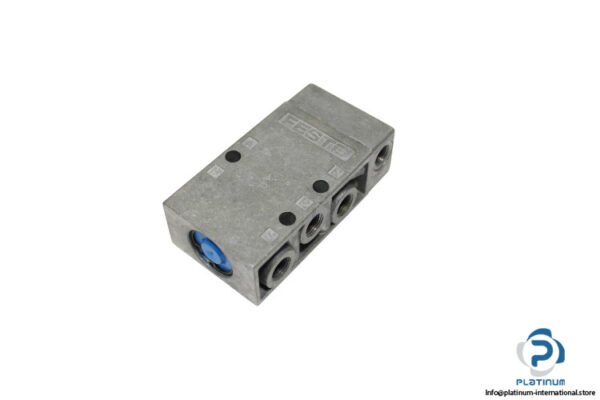

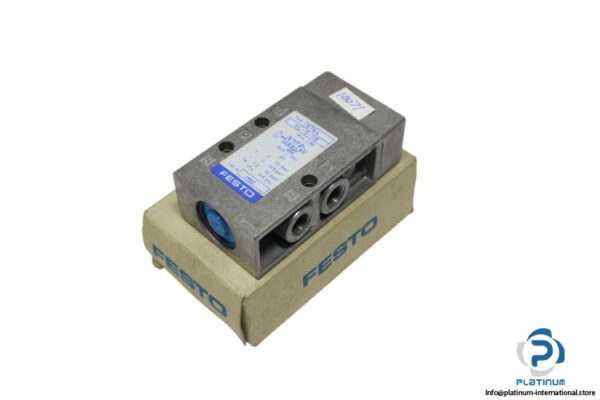

Festo VL-5-1/8 Air Pilot Valve
The Festo VL-5-1/8 Air Pilot Valve is a high-quality, pneumatically actuated valve designed for efficient control of airflow in industrial applications. This 5/2-way monostable valve is ideal for use in various pneumatic systems, providing reliable performance in a wide range of operating conditions.
Manufacturer: Festo
Type: AIR PILOT VALVE
Model: VL-5-1/8
Part No.: 9764
Technical Information:
- Nominal Size: 5 mm
- Valve Function: 5/2-way, monostable
- Type of Actuation: Pneumatically
- Operating Pressure: 0 / 10 bar
- Pilot Pressure: 1.2 / 10 bar
- Fluid: Air
- Design: Plate Seat
- Flow Rate: 500 l/min
- Ambient Temperature: -10 / 60 °C
- Air Pilot Connection: G1/8
- Port Size: G1/8
- Material: Aluminum
This air pilot valve is designed to provide consistent and reliable control in pneumatic systems, offering a high flow rate and durable construction to meet the demands of industrial environments.
